MAGNETO
GN125E 1991 (M) SINGAPORE (E30)

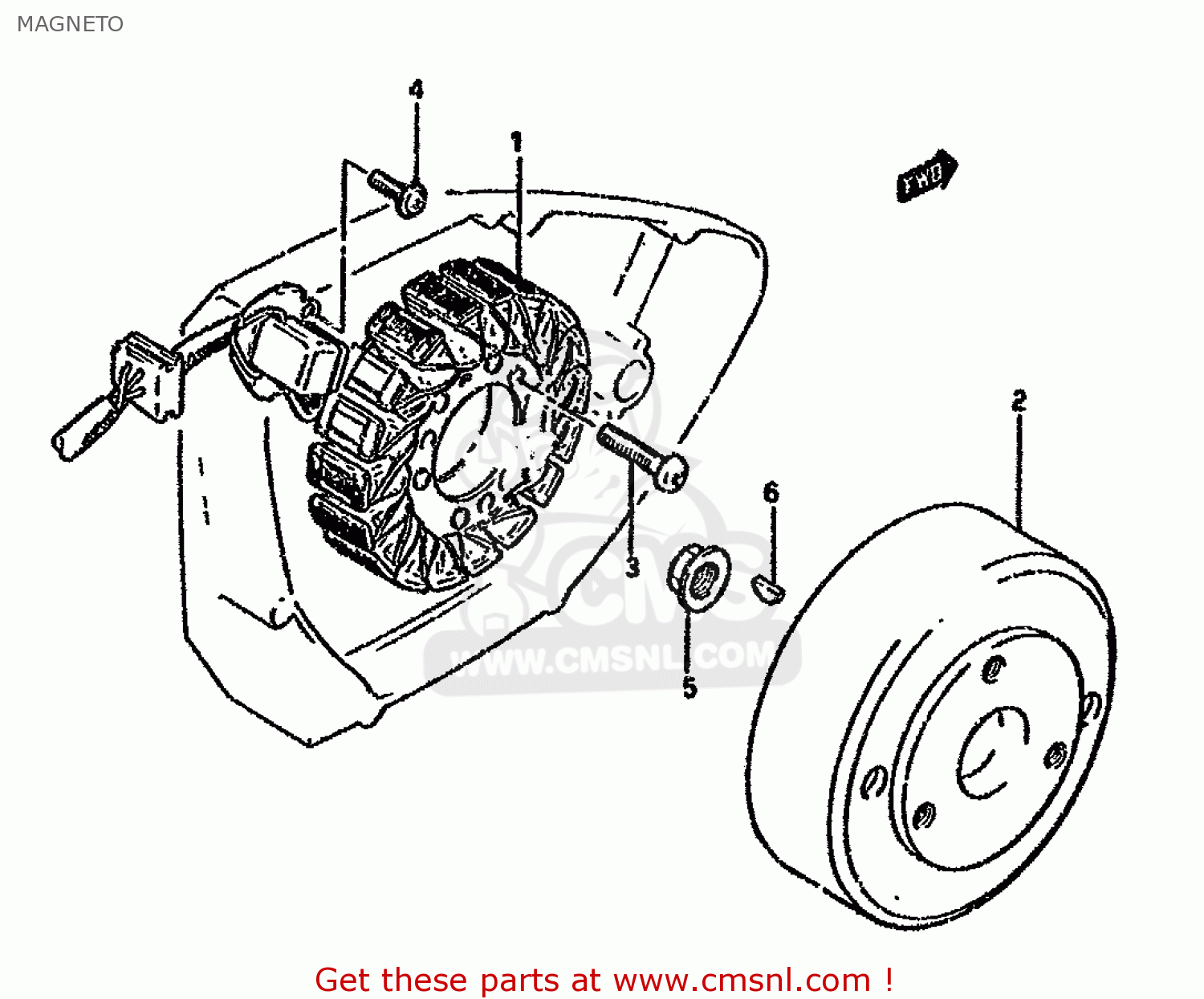

Magneto diagram GN125E 1991 (M) SINGAPORE (E30)
MAGNETO GN125E 1991 (M) SINGAPORE (E30)
×
prices are in EUR
ref
part #
description
quantity
1
3210105300
ref: 1
STARTER ASSY
€ 602.50
2
3210205300
ref: 2
ROTOR,FLYWHEEL
€ 341.00
3-1
0211205257
ref: 3-1
MODEL Z/D/K/M/N
SCREW
€ 2.00
3-2
0211205253
ref: 3-2
MODEL R
SCREW
€ 1.50
4-1
0215204128
ref: 4-1
MODEL Z/D/K/M/N
SCREW
€ 2.00
4-2
0214204123
ref: 4-2
MODEL R
SCREW
€ 1.50
5-1
0831616108
ref: 5-1
MODEL Z/D/K/M/N
NUT
€ 2.00
5-2
0831610103
ref: 5-2
MODEL R
NUT
€ 2.00
6
0834131039
ref: 6
KEY
€ 2.00
