CAM CHAIN

GN250 1990 (L) AUSTRALIA (E24)

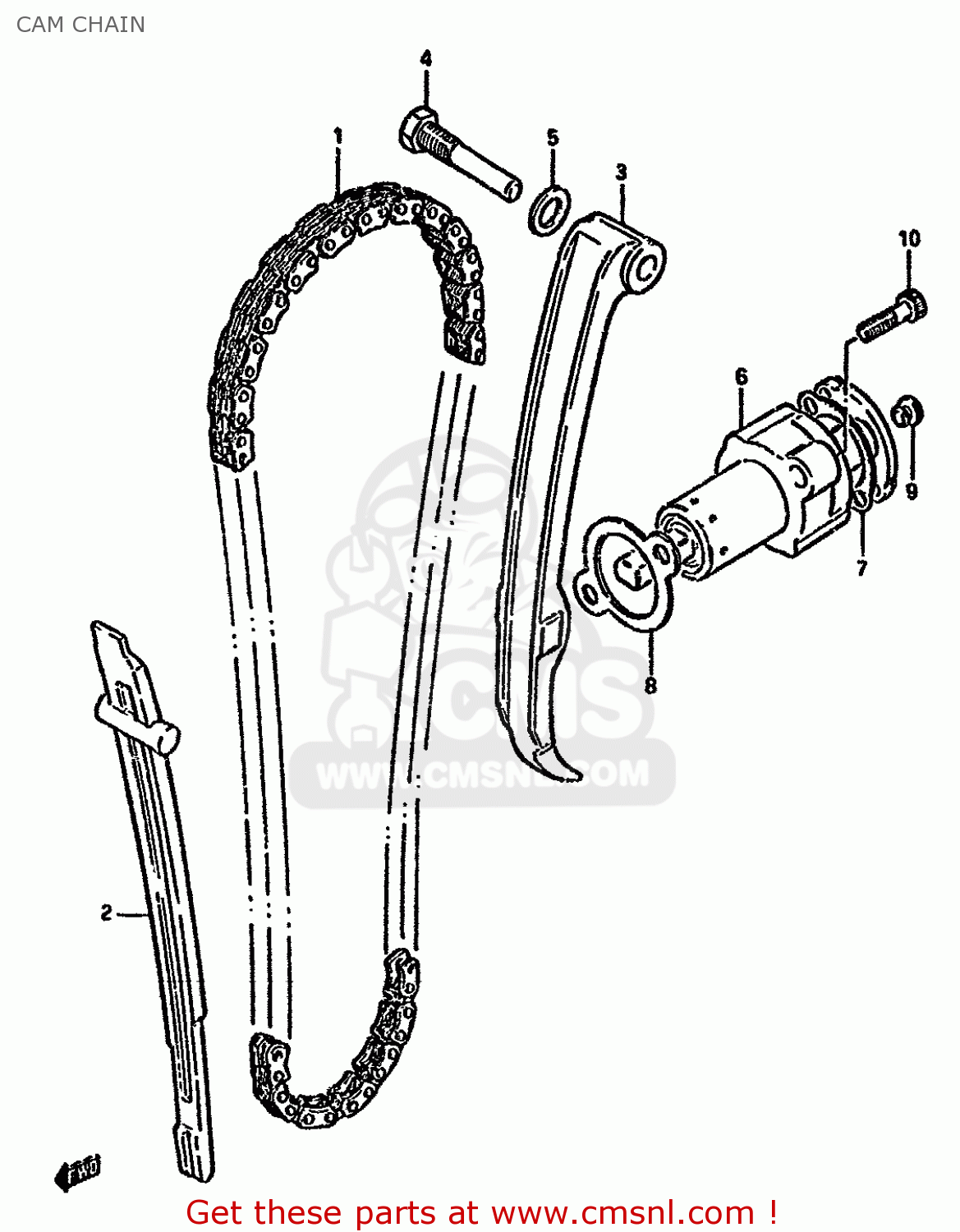

Cam chain diagram GN250 1990 (L) AUSTRALIA (E24)

prices are in EUR

ref

part #

description

quantity

1276038200
ref: 1
112LE

CHAIN,CAMSHAFT DRIVE

€ 109.50

1277138200
ref: 2

GUIDE,CAM CHAIN

€ 34.00

1281138200
ref: 3

TENSIONER,CAM CHAIN

€ 31.50

1261232400
ref: 4

BOLT

€ 0.00

0916808008
ref: 5

GASKET 8.2X14X1 (NAS)

€ 1.00

1283038201
ref: 6

ADJUSTER ASSY,TENSIONER

€ 91.00

GASKET,ADJUSTER CAP (NAS)

€ 3.00

1283724A10
ref: 8
-12837-24A00

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

1283938200
ref: 9

PLUG,ADJUSTER

€ 2.00

10-1

0711006257
ref: 10-1
MODEL F/J/K/L/M/N/P

BOLT

€ 2.50

10-2

0713006257
ref: 10-2
MODEL R

BOLT

€ 2.50
