CYLINDER HEAD
GN250 1990 (L) AUSTRALIA (E24)

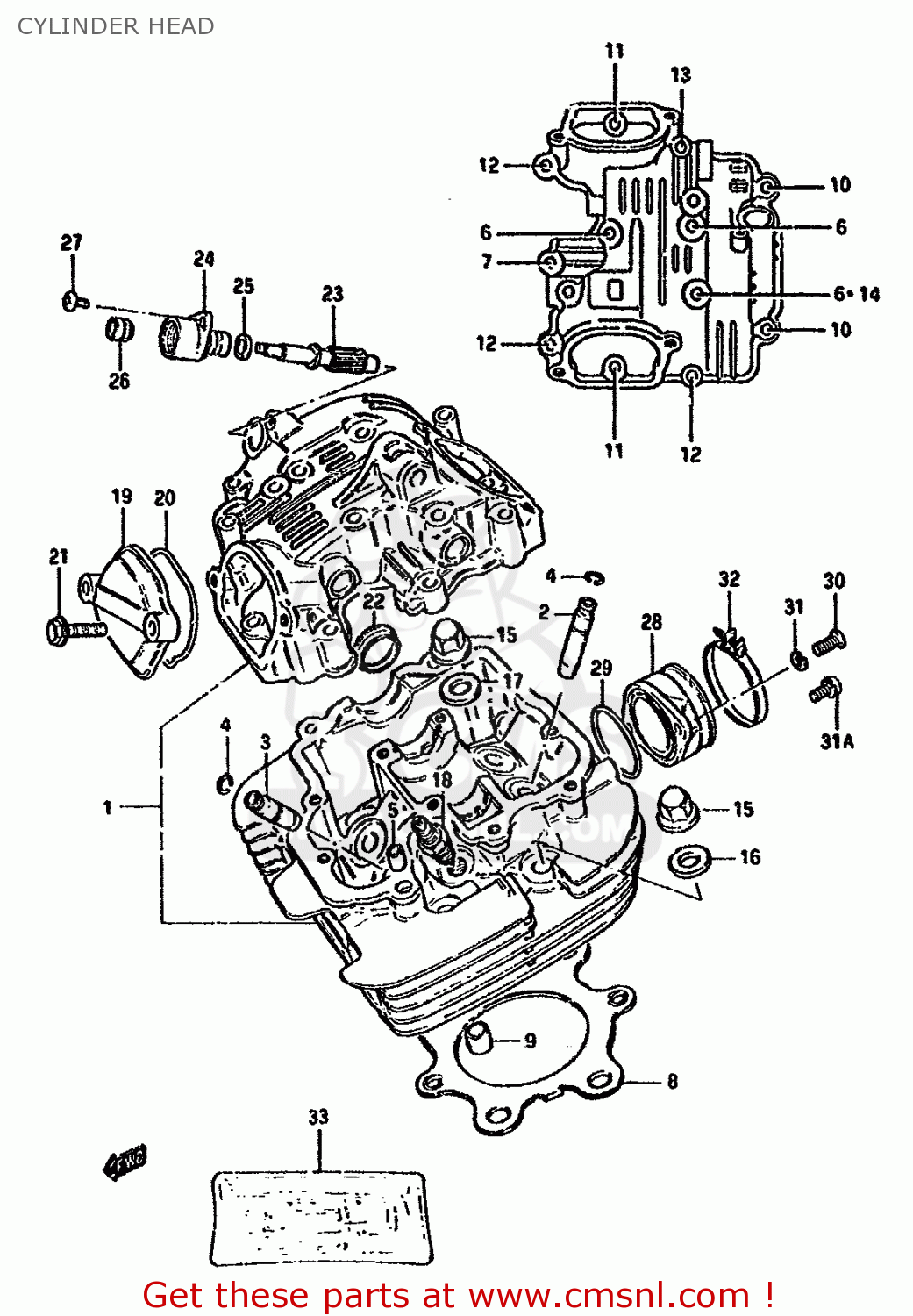

Cylinder head diagram GN250 1990 (L) AUSTRALIA (E24)
CYLINDER HEAD GN250 1990 (L) AUSTRALIA (E24)
×
prices are in EUR
ref
part #
description
quantity
1
1110038202
ref: 1
HEAD,CYLINDER
€ 787.00
2
1111538270
ref: 2
GUIDE,INTAKE VALVE
€ 25.50
3
1111505270
ref: 3
GUIDE,VALVE
€ 18.50
4
0938110004
ref: 4
RING,SNAP
€ 1.50
5
0920608001
ref: 5
PIN(6.2X8X11)
€ 2.00
6-1
0151706608
ref: 6-1
MODEL F/J/K/L/M/N/P
BOLT (6X60)
€ 2.50
6-2
0155006607
ref: 6-2
MODEL R
BOLT
€ 2.50
7-1
0151706307
ref: 7-1
MODEL F/J/K/L/M/N/P
BOLT
€ 2.00
7-2
0155006307
ref: 7-2
MODEL R
BOLT
€ 2.00
8
1114138200
ref: 8
GASKET,CYLINDER HEAD (NAS)
€ 37.50
9
0920613001
ref: 9
PIN
€ 2.50
10
0910306052
ref: 10
BOLT(6X115)
€ 5.00
11-1
0151706307
ref: 11-1
MODEL F/J/K/L/M/N/P
BOLT
€ 2.00
11-2
0155006303
ref: 11-2
MODEL R
BOLT
€ 2.50
12-1
0151706458
ref: 12-1
MODEL F/J/K/L/M/N/P
BOLT,UNDER
€ 2.50
12-2
0155006457
ref: 12-2
MODEL R
BOLT
€ 2.50
13-1
0151706608
ref: 13-1
MODEL F/J/K/L/M/N/P
BOLT (6X60)
€ 2.50
13-2
0155006607
ref: 13-2
MODEL R
BOLT
€ 2.50
14
0916806023
ref: 14
GASKET(5.8X13X1.2) (NAS)
€ 2.00
15
0915910026
ref: 15
NUT
€ 6.00
16
0916010039
ref: 16
WASHER(10.5X22X2.3)
€ 2.50
17
0916810017
ref: 17
GASKET(10.5X22X2) (NAS)
€ 3.50
18-1
0948200149
ref: 18-1
SPARK PLUG DR8ES-L
€ 3.50
18-2
0948200223
ref: 18-2
PLUG,SPARK(X24ESR-U)
€ 3.50
18-3
0948200144
ref: 18-3
E1,E24,P95
SPARK PLUG D8EA
€ 3.50
18-4
0948200145
ref: 18-4
E1,E24,P95
SPARK PLUG X24ES-U
€ 3.50
19
1117538202
ref: 19
-11175-38201
CAP,INSPECTION
€ 23.50
20
0928055003
ref: 20
O RING(D:2.4,ID:23)
€ 4.50
21-1
0151706257
ref: 21-1
MODEL F/J/K/L/M/N/P
BOLT 6X25
€ 2.50
21-2
0155006257
ref: 21-2
MODEL R
BOLT
€ 2.50
22
0924130004
ref: 22
PLUG(OD:30)
€ 6.50
23
2643137401
ref: 23
GEAR,TACHOMETER DRIVEN
€ 35.00
24
2644149000
ref: 24
SLEEVE,TACHOMETER DRIVE GEAR
€ 18.00
25
2645145000A
ref: 25
SEAL,TACHOMETER DRIVEN
€ 4.50
26
0928905002
ref: 26
SEAL,OIL(5X12X8)
€ 11.00
27
0912805101
ref: 27
SCREW(5X12)
€ 1.50
28
1311038200
ref: 28
PIPE,INTAKE
€ 38.50
29
0928040003
ref: 29
O-RING (D:2.4 ID:39.7)
€ 3.50
30
0211206167
ref: 30
MODEL F/J/K/L/M/N/P
SCREW
€ 2.50
31
0832121067
ref: 31
MODEL F/J/K/L/M/N/P
WASHER,LOCK
€ 2.50
31A
0211236163
ref: 31A
MODEL R
SCREW
€ 2.50
32-1
0940252306
ref: 32-1
MODEL F
CLAMP
€ 6.00
32-2
0940252208
ref: 32-2
MODEL J/K/L/M/N/P
CLAMP
€ 5.50
33
1140038827
ref: 33
-11400-38826
GASKET SET
€ 97.00
