SEAT

GN250 1990 (L) AUSTRALIA (E24)

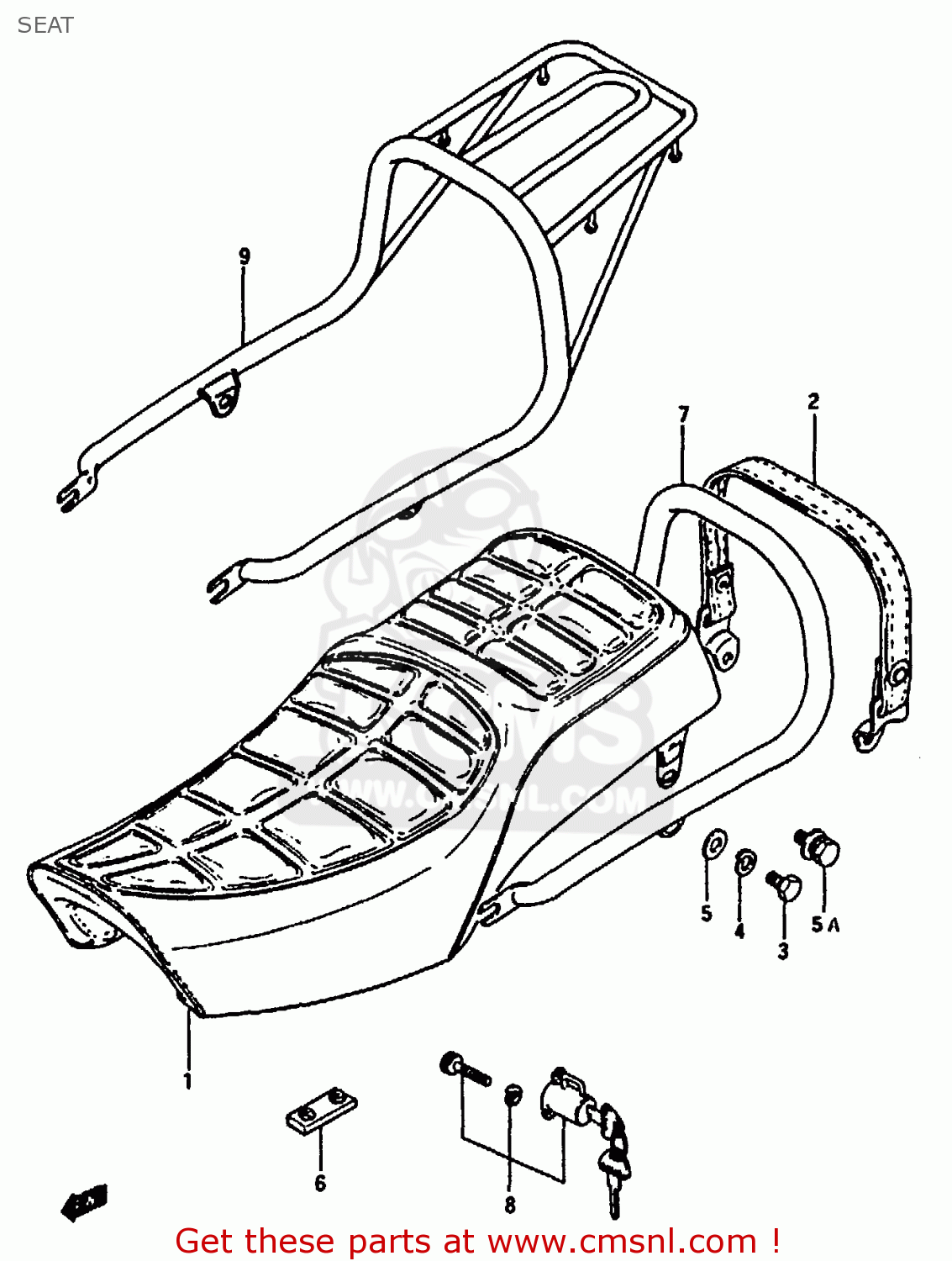

Seat diagram GN250 1990 (L) AUSTRALIA (E24)

prices are in EUR

ref

part #

description

quantity

SEAT ASSEMBLY

€ 288.50

451803831048H
ref: 2
E2,E4,E24,E39,E53,P9

BAND,SEAT GRIP

€ 27.50

0120408207
ref: 3
MODEL F/J/K/L/M/N/P

BOLT

€ 3.00

0832121088
ref: 4
MODEL F/J/K/L/M/N/P

LOCK WASHER

€ 2.00

0832211087
ref: 5
MODEL F/J/K/L/M/N/P

WASHER

€ 2.00

0126408207
ref: 5A
MODEL R

BOLT

€ 3.00

0932108009
ref: 6

CUSHION

€ 4.00

4621038300
ref: 7

HANDLE,PILLION RIDER

€ 87.50

9570038840
ref: 8
-95700-38303-KEY

LOCK SET,HELMET

€ 44.50

4631038300
ref: 9
OPT

CARRIER

€ 112.00
