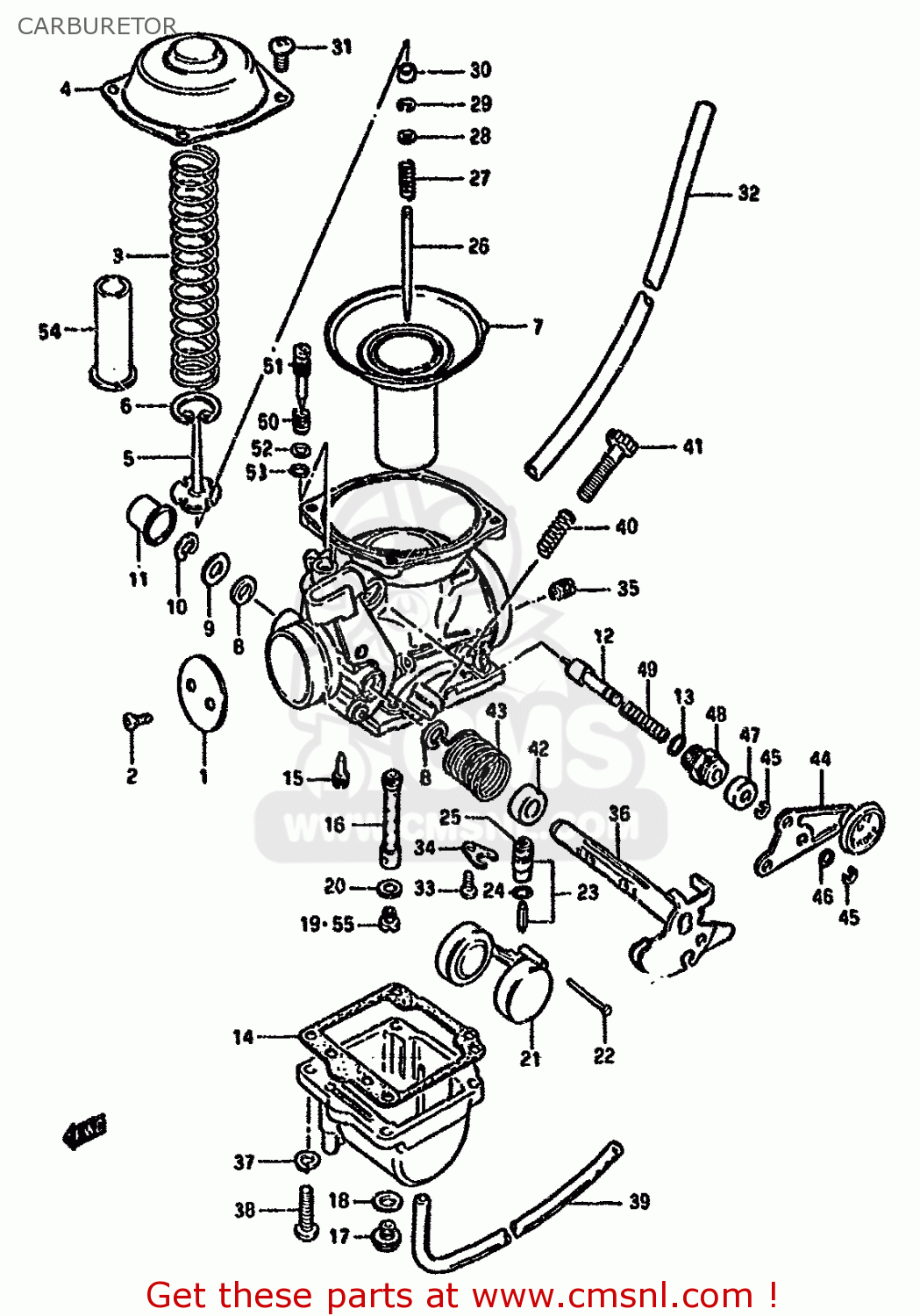

CARBURETOR

ref

part #

description

quantity

0

1320038310
ref: 0

CARBURETOR ASSY

€ 375.00

0

1320038330
ref: 0
MODEL J/K E24

CARBURETOR ASSY

€ 0.00

0

1320038350
ref: 0
E53,MODEL L E24 MODE

CARBURETOR ASSY

€ 425.00

0

1320038380
ref: 0
E39

CARBURETOR ASSY

€ 0.00

1

1355138310
ref: 1

THROTTLE VALVE (100)

€ 0.00

2

1360444080
ref: 2

SCREW

€ 3.50

3

1350337100
ref: 3

SPRING

€ 9.00

4

1350238300
ref: 4

COVER

€ 22.00

5

1338944030
ref: 5

HOLDER,GUIDE

€ 10.50

6

1358144030
ref: 6

E RING

€ 6.50

7-1

1350038310
ref: 7-1

DIAPHRAGM ASSY

€ 168.00

7-2

1350038350
ref: 7-2
E53,MODEL L E24 MODE

DIAPHRAGM ASSY

€ 184.50

8

1365151010
ref: 8

SEAL

€ 4.00

9

1355747070
ref: 9

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

10

1361744080
ref: 10

E RING

€ 3.50

11

1357847070
ref: 11

CAP

€ 5.50

12

1341138300
ref: 12

PLUNGER ASSY

€ 13.50

13

1327847090
ref: 13

O RING

€ 2.00

14-1

1325137100
ref: 14-1

GASKET,FLOAT CHAMBER (NAS)

€ 8.50

14-2

1325138300
ref: 14-2
E39

GASKET,FLOAT CAHMBER (NAS)

€ 8.50

15-1

0949242010
ref: 15-1

JET,PILOT(42.5)

€ 8.50

15-2

0949235010
ref: 15-2
E39

JET,PILOT(37.5)

€ 10.50

16-1

0949400363
ref: 16-1

JET, NEEDLE (P-1)

€ 36.50

16-2

0949400756
ref: 16-2
E39

JET,NEEDLE(P-1)

€ 36.50

17

1324744080
ref: 17

PLUG,DRAIN

€ 9.50

18

1324644080
ref: 18

GASKET (NAS)

€ 3.50

19

0949126011
ref: 19

JET,MAIN(130)

€ 11.50

20

1333244080
ref: 20

WASHER,NEEDLE NOZZLE

€ 2.50

21

1325037100
ref: 21

FLOAT

€ 33.50

22

1325492311
ref: 22

PIN,FLOAT

€ 2.00

23-1

1337037400
ref: 23-1

VALVE ASSEMBLY,NEEDLE

€ 66.50

23-2

1337037100
ref: 23-2
E39

VALVE ASSEMBLY,NEEDLE

€ 63.00

24

1337444080
ref: 24

O-RING,NEEDLE VALVE

€ 6.00

25

1337684110
ref: 25

FILTER

€ 6.50

26-1

1338338310
ref: 26-1

NEEDLE,JET

€ 12.00

26-2

1338311910
ref: 26-2
E53,MODEL L E24 MODE

NEEDLE,JET

€ 15.00

26-3

1338338370
ref: 26-3
E39

NEEDLE, JET (5DF90-3)

€ 13.00

27

1338844030
ref: 27

SPRING

€ 6.00

28

1338244030
ref: 28

WASHER

€ 3.50

29

1339410010
ref: 29

CLIP

€ 4.50

30

1338747010
ref: 30

RING

€ 7.50

31

0211205106
ref: 31

SCREW 5X10

€ 2.00

32-1

1368422A00
ref: 32-1

HOSE

€ 13.00

32-2

1368405300
ref: 32-2
E39

HOSE (5X8X300)

€ 13.00

33

0211204066
ref: 33

SCREW

€ 2.00

34

1337339110
ref: 34

PLATE

€ 6.50

35

0949330003
ref: 35

JET,AIR(150)

€ 13.00

36

1355038300
ref: 36

SHAFT ASSEMBLY,THROTTLE

€ 0.00

37

0832121056
ref: 37

LOCK WASHER

€ 3.00

38

0211205166
ref: 38

SCREW

€ 2.00

39

1368337420
ref: 39
L:500 MODEL F/J/K/L/

HOSE

€ 5.50

40

1327144220
ref: 40

SPRING,THROTTLE ADJUST

€ 3.50

41

1326737100
ref: 41

SCREW,THROTTLE STOP

€ 9.00

42

1357445110
ref: 42

RING

€ 3.50

43

1357338300
ref: 43

SPRING,THROTTLE SHAFT

€ 0.00

44

1341338300
ref: 44

STARTER LEVER ASSY

€ 40.00

45

1341538300
ref: 45

E RING

€ 2.00

46

1342738300
ref: 46

WASHER

€ 1.50

47

1368231210
ref: 47

CAP,STARTER VALVE

€ 5.00

48

1341844080
ref: 48

GUIDE SCREW,PLUNGER

€ 8.00

49

1341747070
ref: 49

SPRING

€ 4.00

50-1

1326847070
ref: 50-1

SPRING

€ 5.00

50-2

1326837420
ref: 50-2
E39

SPRING,THROTTLE SCREW

€ 3.50

51

1327947080
ref: 51

SCREW,PILOT AIR

€ 11.50

52

1329129900
ref: 52

WASHER

€ 2.00

53

1329529900
ref: 53

O RING,PILOT AIR SCREW

€ 4.00

54

1348538330
ref: 54
MODEL J/K E24

RING

€ 0.00

55

0949125011
ref: 55
P95 OPT,HIGH ALTITUD

JET,MAIN(127.5)

€ 10.00

all assemblies
