AIR CLEANER

GN250E 1998 (W) GENERAL (E01)

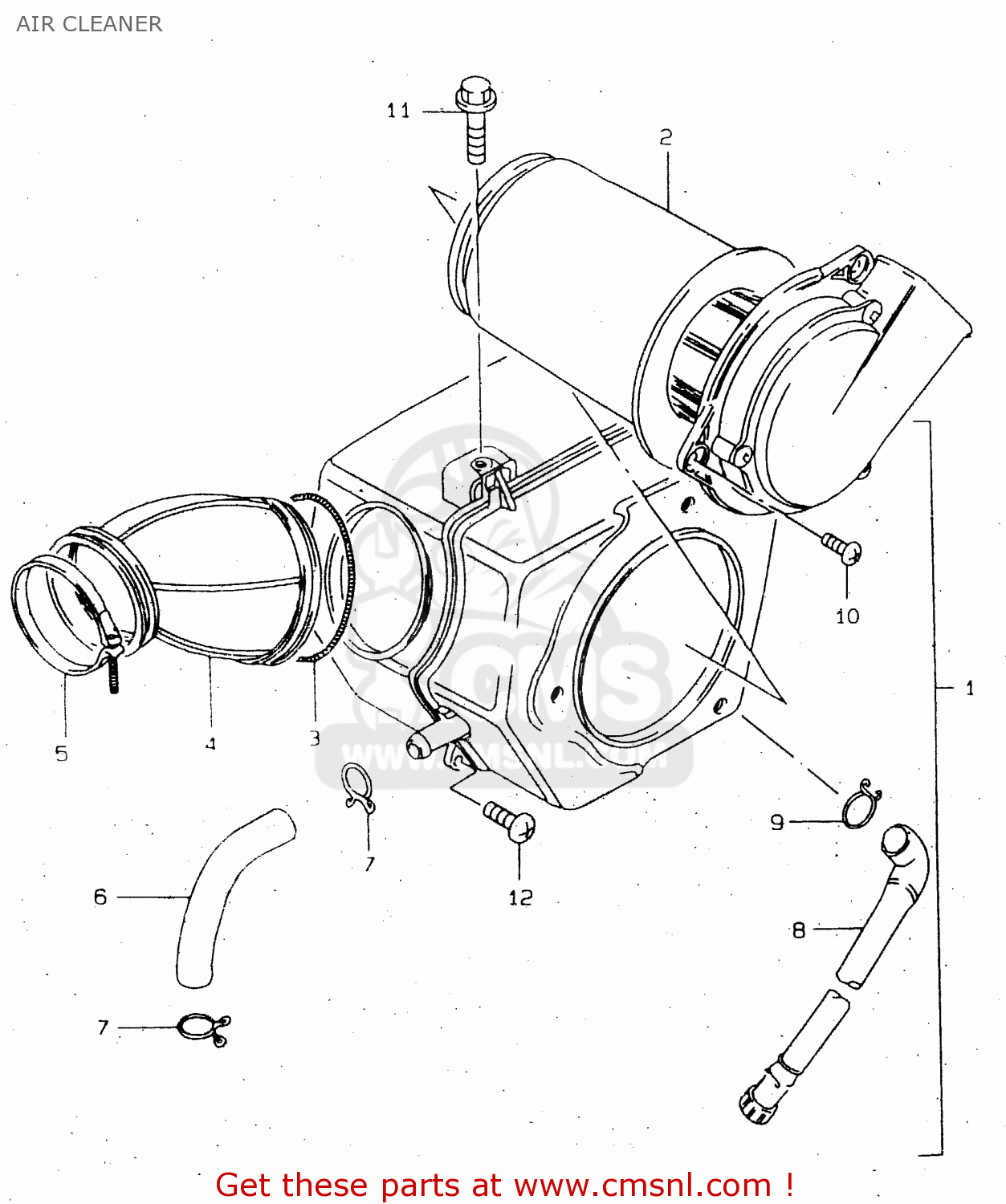

Air cleaner diagram GN250E 1998 (W) GENERAL (E01)

AIR CLEANER GN250E 1998 (W) GENERAL (E01)

AIR CLEANER GN250E 1998 (W) GENERAL (E01)

prices are in EUR

ref

part #

description

quantity

1

1370025D00
ref: 1

CLEANER ASSY,AIR

€ 153.00

2

1378038301
ref: 2

FILTER

€ 21.50

3

1382638300
ref: 3

CLAMP,AIR CLEANER SIDE

€ 3.00

4

1388138300
ref: 4

TUBE,OUTLET

€ 24.50

5

0940256208
ref: 5

CLAMP

€ 3.50

6

1385338300
ref: 6

TUBE,BREATHER

€ 8.00

7

0940114301
ref: 7

CLIP

€ 2.00

8

1387021308
ref: 8

TUBE,DRAIN

€ 16.50

9

0940113409
ref: 9

CLIP

€ 2.50

10

0214205127
ref: 10

SCREW

€ 1.50

11

0158006163
ref: 11

BOLT

€ 2.50

12

0214206163
ref: 12

SCREW

€ 2.50
