CHAIN CASE

GN250E 1998 (W) GENERAL (E01)

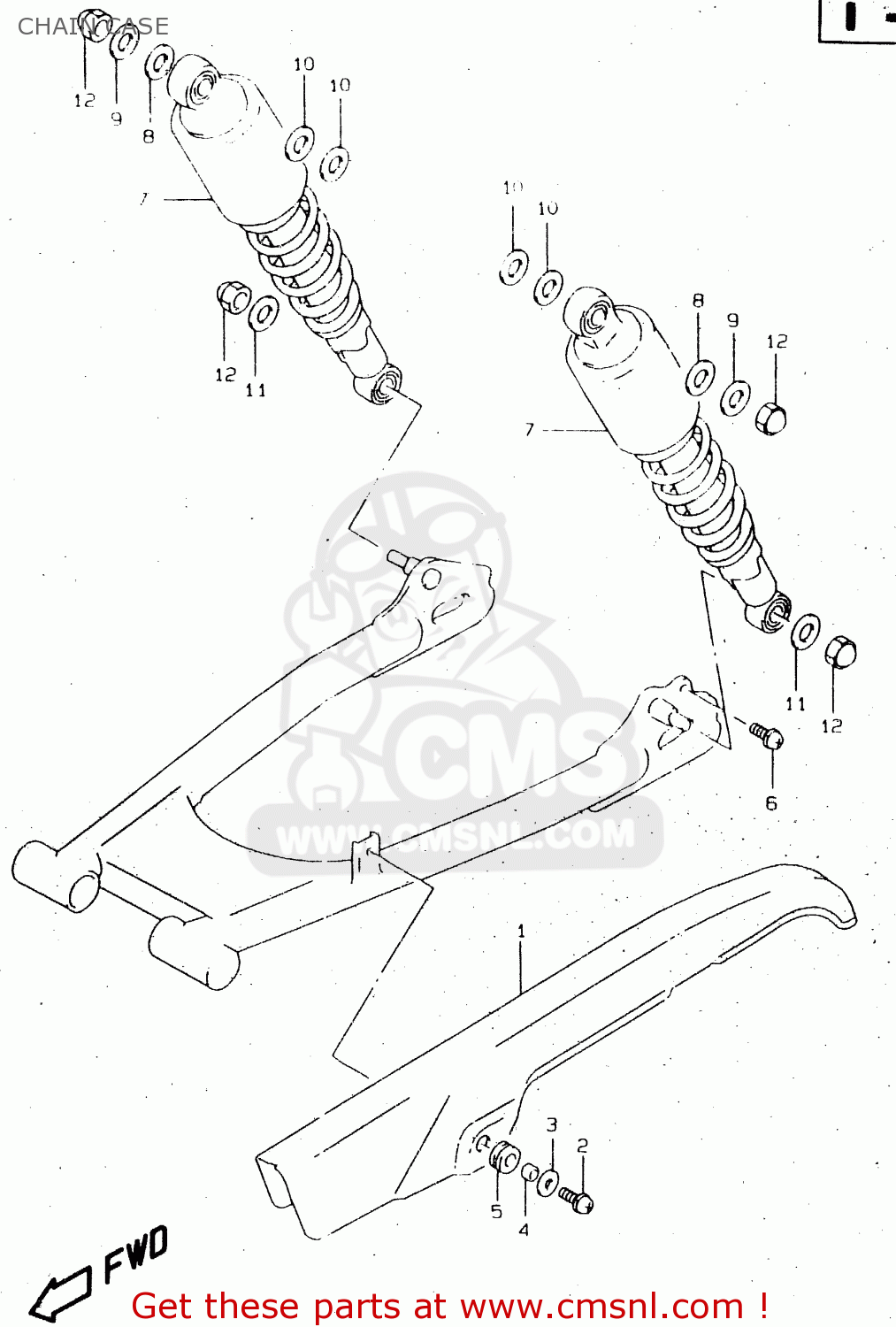

Chain case diagram GN250E 1998 (W) GENERAL (E01)

CHAIN CASE GN250E 1998 (W) GENERAL (E01)

CHAIN CASE GN250E 1998 (W) GENERAL (E01)

prices are in EUR

ref

part #

description

quantity

1

6131038300
ref: 1

CASE,CHAIN

€ 140.50

2

0211236163
ref: 2

SCREW

€ 2.50

3

0916006077
ref: 3

WASHER(6.5X20X1.2)

€ 2.00

4

0918006259
ref: 4

SPACER(6.5X9X7)

€ 2.50

5

0932008021
ref: 5

CUSHION

€ 4.00

6

0211236163
ref: 6

SCREW

€ 2.50

7

6210038310
ref: 7

ABSORBER ASSY,RR SHOCK

€ 172.50

8

0916010127
ref: 8
E22

WASHER (10.5X24X2.3)

€ 2.00

8

0916010127
ref: 8
E1,E2,E4,E24,E25,E34

WASHER (10.5X24X2.3)

€ 2.00

9

0916010112
ref: 9

WASHER

€ 2.00

10

0832201127
ref: 10

WASHER

€ 2.00

11

0916010127
ref: 11

WASHER (10.5X24X2.3)

€ 2.00

12

0831310107
ref: 12

NUT

€ 2.50
