HEADLAMP (E4)
GN250E 1998 (W) GENERAL (E01)

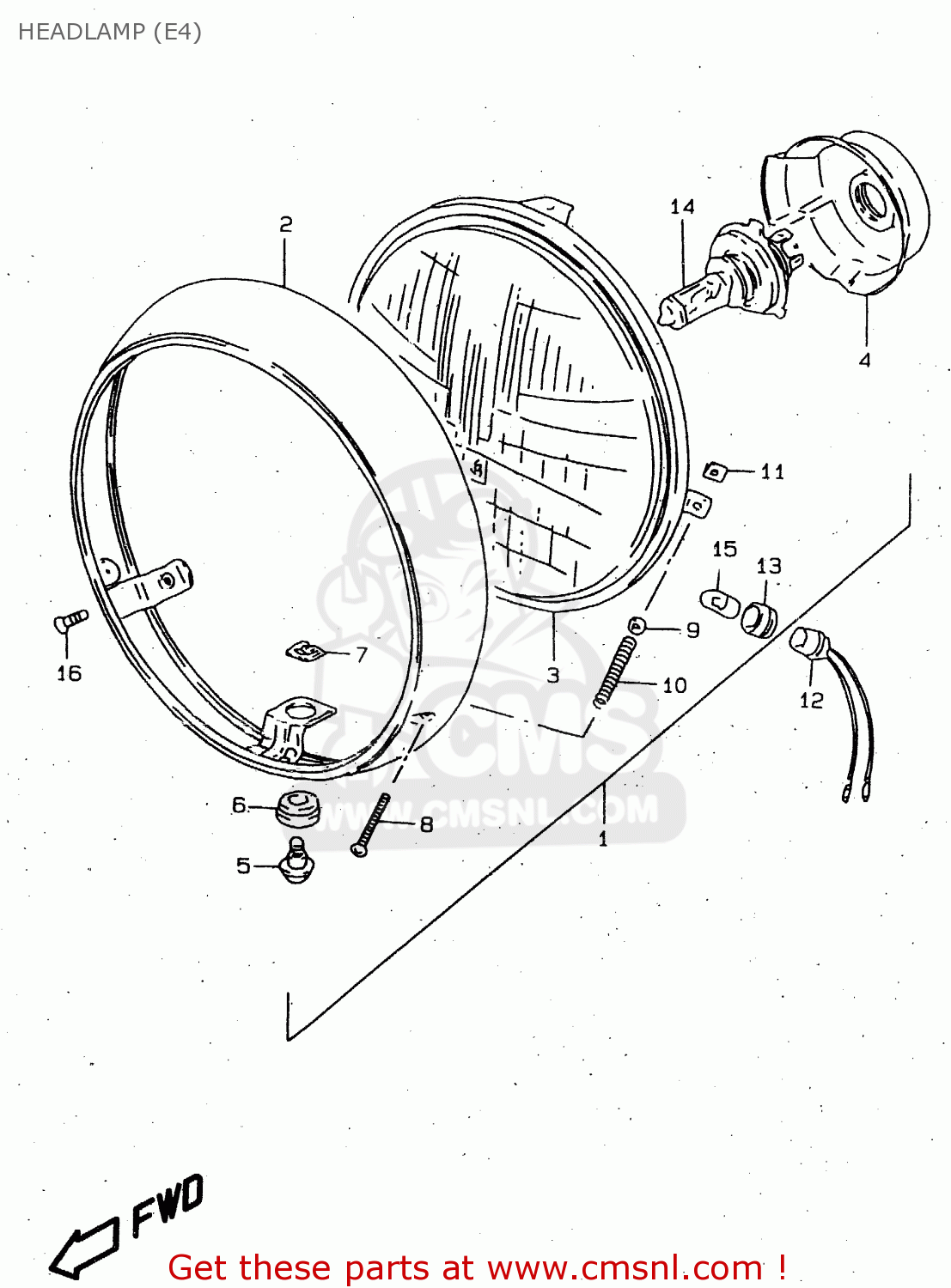

Headlamp (e4) diagram GN250E 1998 (W) GENERAL (E01)
HEADLAMP (E4) GN250E 1998 (W) GENERAL (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3510045261999
ref: 1
HEADLAMP ASSY
€ 249.00
2
3511145221
ref: 2
RIM
€ 50.50
3
3512145260
ref: 3
LAMP UNIT
€ 141.50
4
3517345200
ref: 4
COVER,SOCKET
€ 14.00
5
3513638A00
ref: 5
SCREW,MOUNTING
€ 2.50
6
3513945230
ref: 6
CUSHION
€ 1.50
7
3515548510
ref: 7
NUT
€ 2.00
8
3515145230
ref: 8
SCREW
€ 3.50
9
3515727630
ref: 9
WASHER
€ 2.50
10
3515448510
ref: 10
SPRING
€ 2.50
11
3513545600
ref: 11
NUT
€ 3.00
12
3611849320
ref: 12
SOCKET
€ 12.00
13
3611622630
ref: 13
JOINT,RUBBER
€ 5.00
14
0947112060
ref: 14
BULB(12V60/55W,H4)
€ 8.00
15
0947112063
ref: 15
BULB(12V4W)
€ 6.00
16
0212205127
ref: 16
SCREW
€ 2.50
