REAR WHEEL (GN250T/W/X)
GN250E 1998 (W) GENERAL (E01)

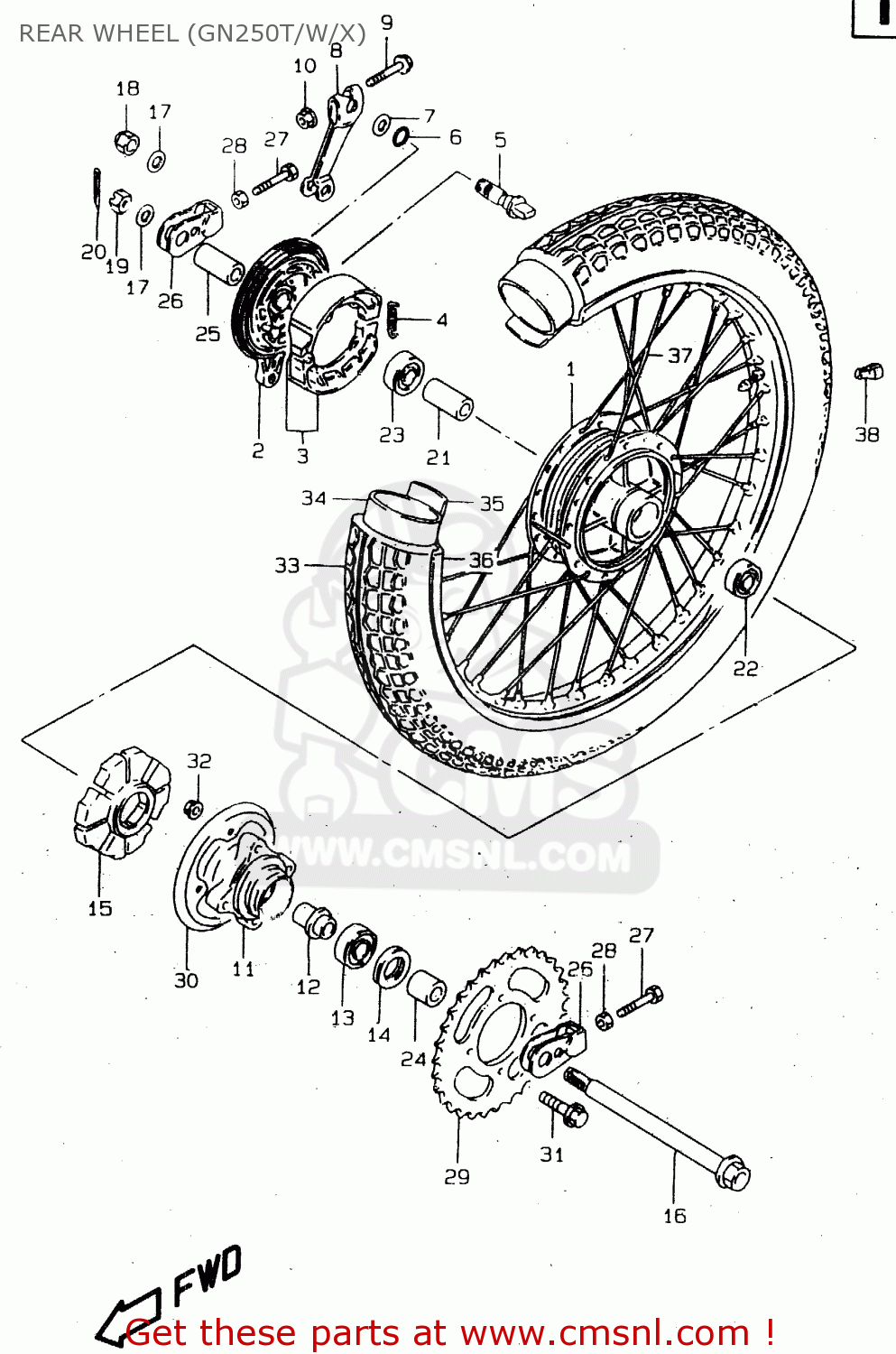

Rear wheel (gn250t/w/x) diagram GN250E 1998 (W) GENERAL (E01)
REAR WHEEL (GN250T/W/X) GN250E 1998 (W) GENERAL (E01)
×
prices are in EUR
ref
part #
description
quantity
1
6411007005
ref: 1
HUB,RR WHEEL
€ 234.00
2
6421039115
ref: 2
PANEL,RR BRAKE ANCHOR
€ 125.00
2
6421039104
ref: 2
P37
PANEL,RR BRAKE ANCHOR
€ 165.50
3
5440107820
ref: 3
SHOE SET,BRAKE (NAS)
€ 32.00
4
0944307001
ref: 4
SPRING(L:34)
€ 2.50
5
5444129305
ref: 5
CAM,BRAKE
€ 13.00
6
0928014011
ref: 6
O RING(D:2.5,ID:13.8)
€ 3.50
7
0916014055
ref: 7
WASHER(14.5X22X1.6)
€ 2.50
8
6445130501
ref: 8
LEVER,RR BRAKE CAM
€ 15.00
9
0155006407
ref: 9
BOLT
€ 2.50
10
0831610067
ref: 10
NUT
€ 2.00
11
6461038300
ref: 11
DRUM,RR SPROCKET MOUNTING
€ 116.50
12
6473338300
ref: 12
RETAINER,RR SPROCKET DRUM
€ 40.00
13
0926220069
ref: 13
BEARING(20X47X14)
€ 28.00
14
0928528001
ref: 14
SEAL,OIL(28X47X7)
€ 11.50
15
6465107001
ref: 15
ABSORBER ASSY,HUB SHOCK
€ 16.00
16
6471132101
ref: 16
AXLE,REAR
€ 62.50
17
0832201143
ref: 17
WASHER
€ 2.00
18
0915914008
ref: 18
E22
NUT
€ 5.00
19
0914114001
ref: 19
E2,E4,E24,E25,E34,E3
NUT
€ 4.50
20
0411130308
ref: 20
E2,E4,E24,E25,E34,E3
COTTER PIN
€ 1.50
21
0918015011
ref: 21
SPACER(15.3X21.7X63)
€ 7.50
22
0814362027
ref: 22
BEARING
€ 12.50
23
0815363027
ref: 23
BEARING
€ 12.00
24
0918015061
ref: 24
SPACER(15X28X24.8)
€ 7.00
25
0918015060
ref: 25
SPACER(15X22X46.8)
€ 6.50
26
6141038301
ref: 26
ADJUSTER,CHAIN
€ 71.50
27
0910408034
ref: 27
BOLT(8X50)
€ 3.00
28
0831000083
ref: 28
NUT
€ 1.50
29
6451138301
ref: 29
SPROCKET,RR(NT:41-520)
€ 63.50
30
6461838300
ref: 30
GUIDE,RR SPROCKET CHAIN
€ 5.50
31
0910310044
ref: 31
BOLT(10X40)
€ 3.00
32
0831931107
ref: 32
NUT
€ 3.00
33
6510038370
ref: 33
E22
TIRE 120/90-16
€ 0.00
33
6510038330
ref: 33
E2,E4,E24,E25,E34,E3
TIRE,RR
€ 210.00
34
6520037300
ref: 34
TUBE ASSY,WHEEL,INNER 4.60-16
€ 31.50
35
6526137320
ref: 35
PROTECTOR,WHL INR TUBE
€ 2.00
36
6531138300
ref: 36
RIM,RR WHEEL(215X16)
€ 160.50
37
6532038301
ref: 37
SPOKE ASSY,RR WHEEL
€ 37.00
38
5541111000
ref: 38
BALANCER,WHEEL (B)
€ 4.50
38
5541211000
ref: 38
BALANCER,WHEEL (30G)
€ 8.00
