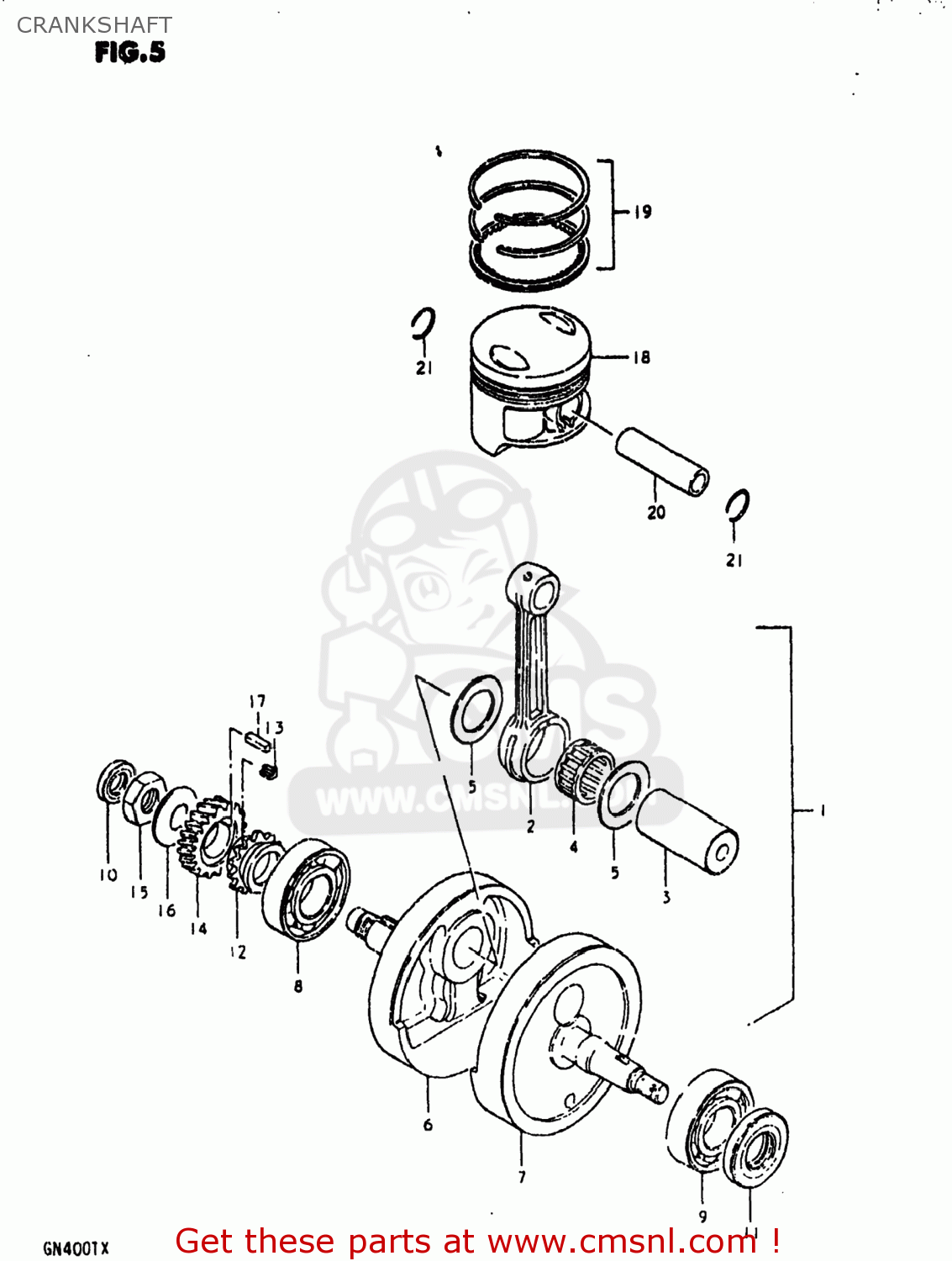

CRANKSHAFT

ref

part #

description

quantity

1-1

1220037300
ref: 1-1
12200-37301

CRANKSHAFT ASSEMBLY

€ 220.00

1-2

1220037301
ref: 1-2

CRANKSHAFT ASSEMBLY

€ 220.00

2

1216137100
ref: 2

ROD,CONNECTING

€ 97.00

3-1

1221137100
ref: 3-1
12210-37101

PIN,CRANK

€ 33.00

3-2

1221037100
ref: 3-2
12210-37101

PIN,CRANK

€ 33.00

4

0926334002
ref: 4
09263-34005

BEARING

€ 45.50

5-1

0916034003
ref: 5-1

WASHER(34X52X1)

€ 6.50

5-2

0916034003
ref: 5-2

WASHER(34X52X1)

€ 6.50

6-1

1222137300
ref: 6-1
12221-37301

CRANKSHAFT

€ 97.00

6-2

1222137301
ref: 6-2

CRANKSHAFT

€ 97.00

7

1226137300
ref: 7
12261-37301

CRANKSHAFT,LEFT

€ 72.00

8

0926230043
ref: 8
09262-30076

BALL BEARING 30X72X19

€ 36.50

9

0926230043
ref: 9
09262-30076

BALL BEARING 30X72X19

€ 36.50

10

0928216002
ref: 10

SEAL,OIL(16X30X6)

€ 8.50

11

0928330024
ref: 11

SEAL,OIL(30X58X7)

€ 28.00

12

1273132400
ref: 12

SPROCKET,CAM CHAIN DRIVE

€ 25.00

13

1274932400
ref: 13

KEY,SPROCKET

€ 13.50

14

2111132401
ref: 14

GEAR,PRIMARY DRIVE

€ 37.00

15

0914020008
ref: 15
09140-20013

NUT (20MM)

€ 4.00

16

0916420003
ref: 16

WASHER

€ 2.50

17

0942107002
ref: 17

KEY

€ 4.00

18-1

1211137100
ref: 18-1

PISTON (88.00MM)

€ 98.50

18-2

1211137100050
ref: 18-2
12103-37810-050

PISTON

€ 133.50

18-3

1211137100100
ref: 18-3
12103-37810-100

PISTON (89.00MM)

€ 133.50

19-1

1214037100
ref: 19-1

RING SET,PISTON

€ 70.50

19-2

1214037100050
ref: 19-2

RING SET,PISTON

€ 41.00

19-3

1214037100100
ref: 19-3

RING SET,PISTON

€ 34.00

20

1215132400
ref: 20

PIN,PISTON

€ 41.50

21

0938120001
ref: 21
09381-20004

CIRCLIP

€ 2.00
