RIGHT HANDLE SWITCH
GN400XT 1981 (X) USA (E03)

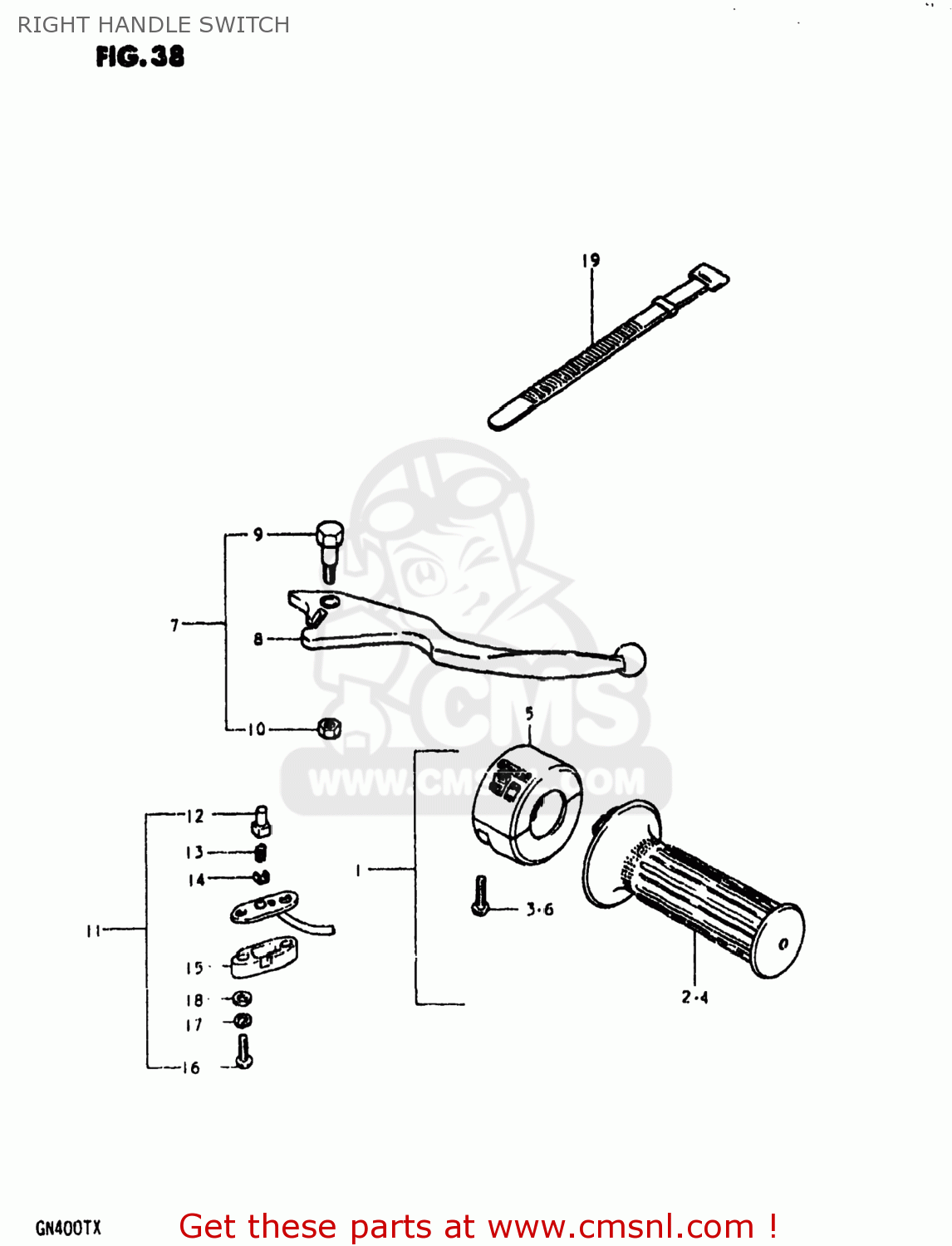

Right handle switch diagram GN400XT 1981 (X) USA (E03)
RIGHT HANDLE SWITCH GN400XT 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5710030510
ref: 1
57100-30540
CASE ASSEMBLY,THROTTLE
€ 59.00
2
5711030501
ref: 2
GRIP,THROTTLE
€ 22.50
3
0211205258
ref: 3
02112-05257
SCREW
€ 2.00
4
5711030501
ref: 4
GRIP,THROTTLE
€ 22.50
5
5710030540
ref: 5
CASE ASSY,THROTTLE
€ 59.00
6
0211205258
ref: 6
02112-05257
SCREW
€ 2.00
7
5730037300
ref: 7
57420-49101
LEVER ASSEMBLY,BRAKE
€ 36.50
8
5742037300
ref: 8
57420-49101
LEVER,BRAKE
€ 36.50
9
5743118621
ref: 9
BOLT
€ 8.00
10
0831921068
ref: 10
08319-2106A
NUT 6MM
€ 2.00
11
5746049100
ref: 11
57460-45500
SWITCH ASSEMBLY
€ 40.00
12
5746118600
ref: 12
57465-18601
HOLDER
€ 4.50
13
5746218600
ref: 13
57465-18601
SPRING
€ 4.50
14
5746318600
ref: 14
57465-18601
PLATE
€ 4.50
15
5748133010
ref: 15
COVER,FR BK TERMINAL BASE
€ 19.50
16
0912503105
ref: 16
09125-03105-XC0
SCREW
€ 2.50
17
0832121038
ref: 17
09162-03001
LOCK WASHER
€ 1.50
18
0832221038
ref: 18
08322-01037
WASHER
€ 2.00
19
0940712402
ref: 19
CLAMP(L:120)
€ 3.00
