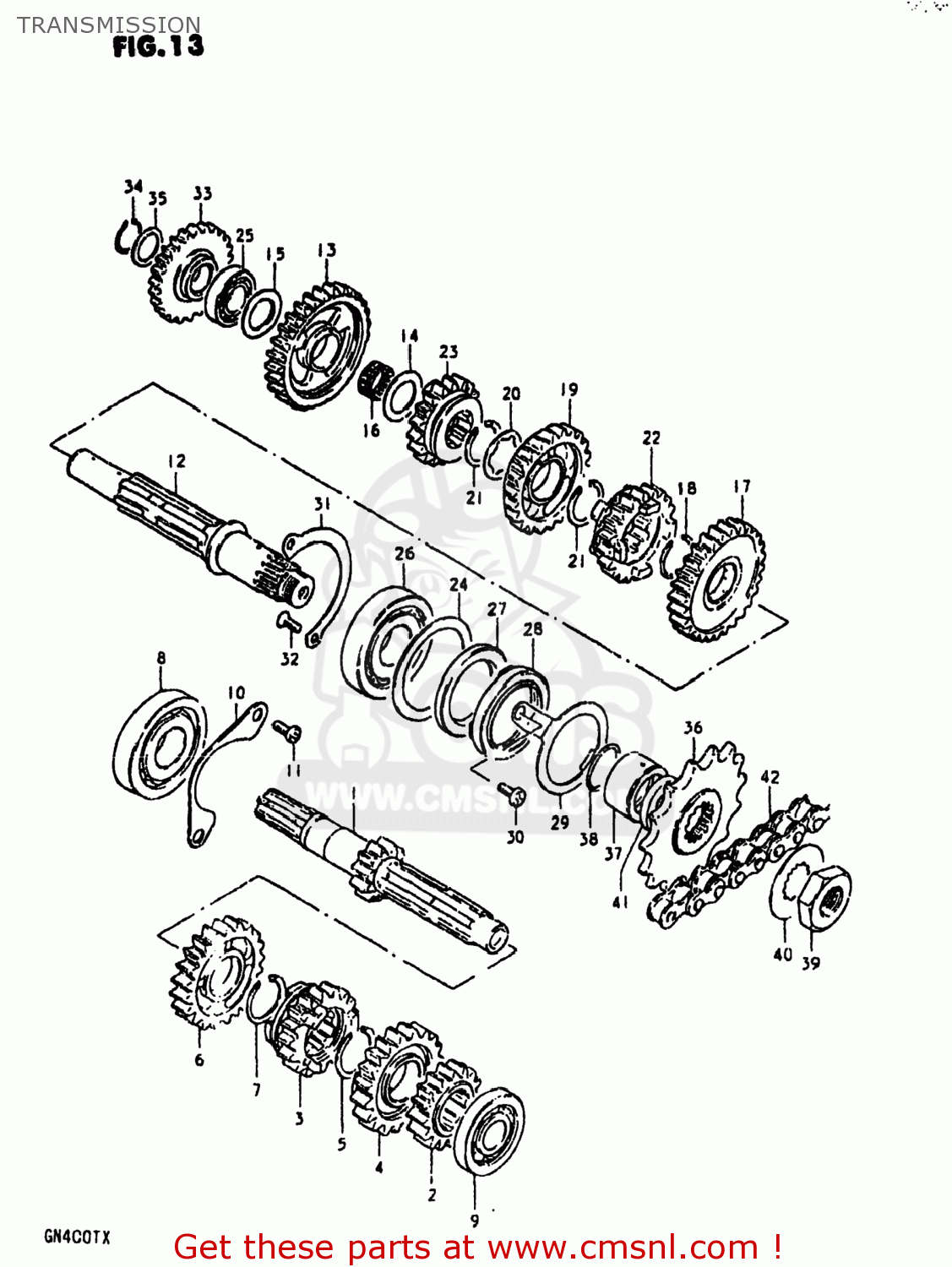

TRANSMISSION

ref

part #

description

quantity

1

2412032410
ref: 1

SHAFT,COUNTER

€ 138.50

2-1

2422132411
ref: 2-1
24221-32412

GEAR,SECOND DRIVE

€ 89.50

2-2

2422132412
ref: 2-2

GEAR,2ND DRIVE(NT:16)

€ 89.50

3

2423132401
ref: 3

GEAR,THIRD DRIVE

€ 64.00

4

2424132400
ref: 4
24241-32401

GEAR,FOURTH DRIVE

€ 57.00

5

0938022006
ref: 5

CIRCLIP

€ 3.00

6

2425132401
ref: 6
24251-32420

GEAR,FIFTH DRIVE

€ 82.50

7

0938022006
ref: 7

CIRCLIP

€ 3.00

8

0926222014
ref: 8
09262-22028

BEARING

€ 59.50

9

0926217018
ref: 9
09262-17027

BEARING

€ 25.00

10

2474132400
ref: 10

PLATE,COUNTERSHAFT BEARING

€ 9.50

11

0211206128
ref: 11
02112-06127

SCREW 6X12

€ 2.00

12

2413037300
ref: 12

SHAFT,DRIVE

€ 66.50

13-1

2431132410
ref: 13-1
24311-32411

GEAR,FIRST DRIVEN

€ 64.50

13-2

2431132411
ref: 13-2

GEAR,FIRST DRIVEN

€ 64.50

14

0821117281
ref: 14
09181-17195

WASHER

€ 3.00

15

0821117363
ref: 15

WASHER

€ 2.00

16

0926317004
ref: 16

BEARING(17X21X9.8)

€ 7.00

17-1

2432032410
ref: 17-1
24320-32411

GEAR,SECOND DRIVEN

€ 87.50

17-2

2432032411
ref: 17-2

GEAR,2ND DRIVEN(NT:27)

€ 87.50

18

0938022006
ref: 18

CIRCLIP

€ 3.00

19

2433032400
ref: 19

GEAR,THIRD DRIVEN

€ 60.00

20

0916722011
ref: 20

WASHER,LOCK

€ 3.00

21

0938022006
ref: 21

CIRCLIP

€ 3.00

22

2434132400
ref: 22

GEAR,FOURTH DRIVEN

€ 60.50

23

2435132400
ref: 23

GEAR,FIFTH DRIVEN

€ 60.00

24

0916040003
ref: 24

WASHER

€ 1.50

25

0926417001
ref: 25

BEARING(17X36X12)

€ 27.00

26

0926222013
ref: 26

BEARING(22X56X16)

€ 58.00

27

0928230002
ref: 27

OIL SEAL (30X47X5)

€ 17.00

28

0928330025
ref: 28

SEAL,OIL(30X47X7)

€ 14.00

29

2475132400
ref: 29

PLATE,DRIVESHAFT OIL

€ 3.00

30

0211206128
ref: 30
02112-06127

SCREW 6X12

€ 2.00

31

2475232400
ref: 31

RETAINER,DRIVE SHAFT BEARING

€ 3.50

32

0212206128
ref: 32
02122-06127

SCREW

€ 3.00

33

2626032404
ref: 33

GEAR,KICK STARTER IDLER(NT:25)

€ 58.50

34

0938017001
ref: 34

CIRCLIP

€ 2.00

35

0821117241
ref: 35

WASHER

€ 2.00

36

2751137200
ref: 36

SPROCKET,ENGINE(NT:16)

€ 27.50

37

2753132400
ref: 37

SPACER,ENGINE SPROCKET

€ 14.50

38

0928021008
ref: 38

O RING(D:2.5,ID:21)

€ 2.00

39

0914018006
ref: 39

NUT

€ 4.50

40

0916722012
ref: 40

WASHER,LOCK

€ 1.50

41

0918022018
ref: 41

SPACER

€ 0.00

42

2760037341
ref: 42
27600-37361

CHAIN ASSEMBLY,DRIVE

€ 51.50
