HEADLAMP HOUSING - FRONT FENDER
GN400XT 1981 (X) USA (E03)

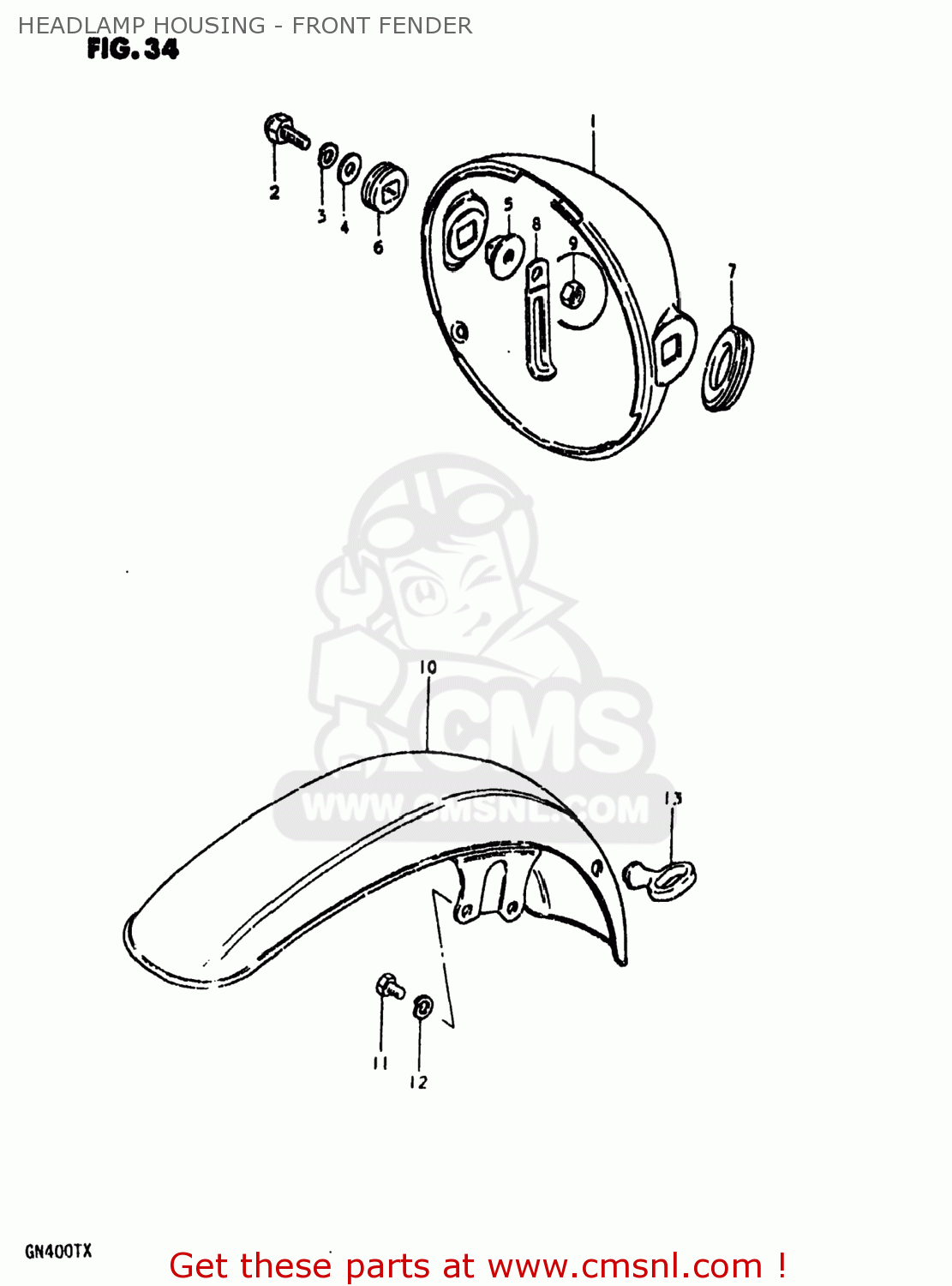

Headlamp housing - front fender diagram GN400XT 1981 (X) USA (E03)
HEADLAMP HOUSING - FRONT FENDER GN400XT 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5181044200
ref: 1
51810-44201
HOUSING,HEADLAMP
€ 76.50
2
0120408257
ref: 2
BOLT
€ 2.00
3
0832121088
ref: 3
08321-01087
LOCK WASHER
€ 2.00
4
0832211088
ref: 4
08322-01087
WASHER
€ 2.00
5
5182136200
ref: 5
SPACER,HEADLAMP HOUSING
€ 7.50
6
5182727302
ref: 6
CUSHION,HEADLAMP HOUSING
€ 3.00
7
5184531031
ref: 7
GROMMET,HEADLAMP HOUSING
€ 4.00
8
0940408414
ref: 8
09404-08420
CLAMP
€ 3.50
9
0831022088
ref: 9
08310-00087
NUT 8MM
€ 2.00
10
5311037310
ref: 10
FENDER,FRONT
€ 119.00
11
0110708168
ref: 11
01500-0816B
BOLT
€ 2.00
12
0832121088
ref: 12
08321-01087
LOCK WASHER
€ 2.00
13
5862121203
ref: 13
58621-21204
GUIDE,CABLE
€ 7.50
