BATTERY
GP100 1983 (D) UNITED KINGDOM (E02)

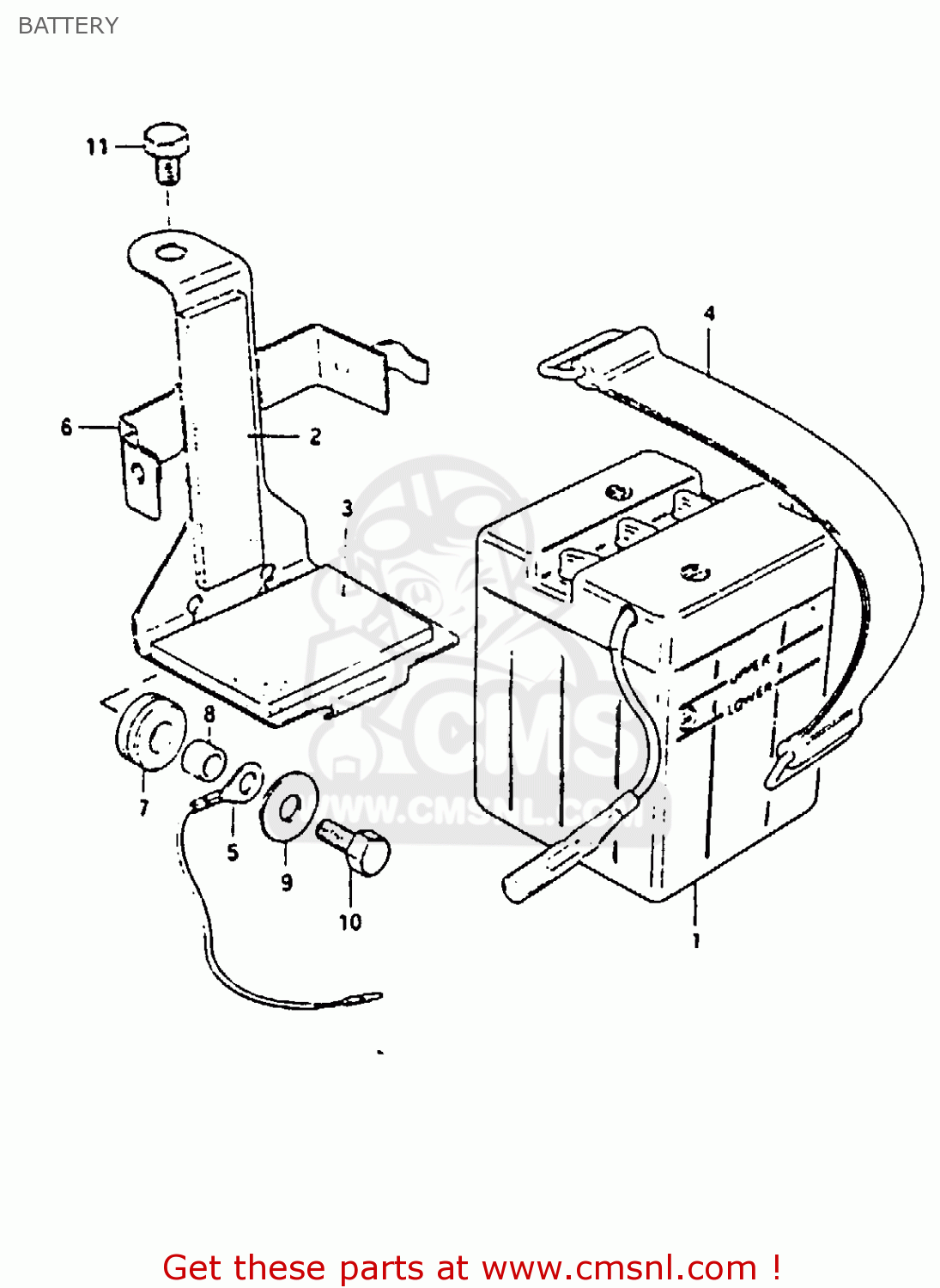

Battery diagram GP100 1983 (D) UNITED KINGDOM (E02)
BATTERY GP100 1983 (D) UNITED KINGDOM (E02)
×
prices are in EUR
ref
part #
description
quantity
1
3361003010
ref: 1
BATTERY ASSY(6N4-2A4.2AH)
€ 42.00
2
3365222100
ref: 2
PROTECTOR
€ 0.00
3
3365208410
ref: 3
PROTECTOR,BATTERY
€ 5.00
4
0946200007
ref: 4
BAND
€ 5.00
5
3686227690
ref: 5
LEAD WIRE
€ 9.00
6
4154039101
ref: 6
HOLDER,BATTERY
€ 9.00
7
0932008007
ref: 7
CUSHION
€ 4.00
8
0918006038
ref: 8
SPACER(6.1X9X7.5)
€ 2.00
9
0916006020
ref: 9
WASHER
€ 2.00
10
0110706167
ref: 10
BOLT
€ 3.00
11
0110706107
ref: 11
BOLT
€ 2.00
