REAR FENDER
GP100 1983 (D) UNITED KINGDOM (E02)

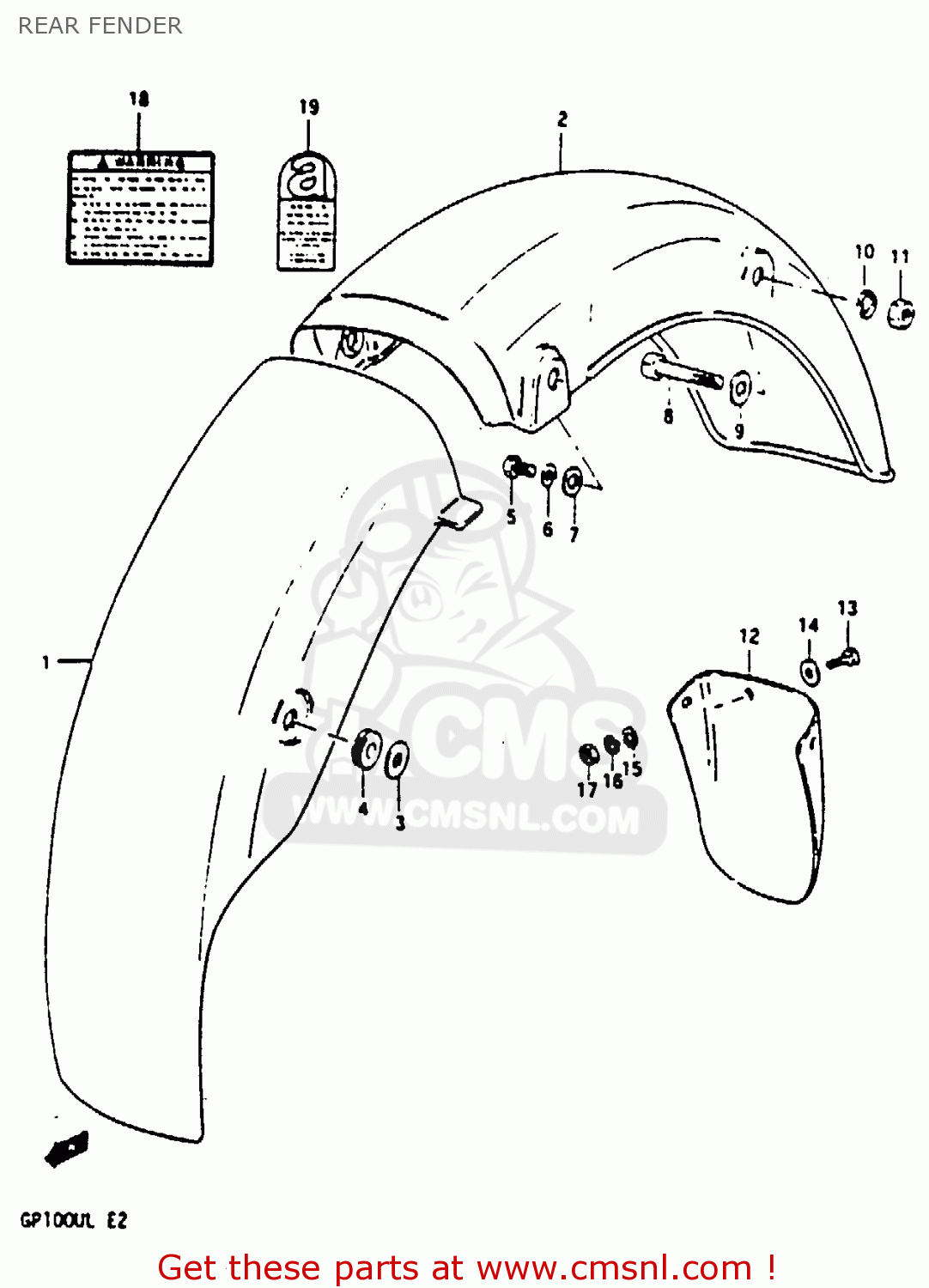

Rear fender diagram GP100 1983 (D) UNITED KINGDOM (E02)
REAR FENDER GP100 1983 (D) UNITED KINGDOM (E02)
×
prices are in EUR
ref
part #
description
quantity
1
6311239104
ref: 1
BODY,RR FENDER FR
€ 37.00
2-1
6311039200
ref: 2-1
GP100X/D/EX/ED
BODY,RR FENDER RR
€ 334.00
2-2
6311039220126
ref: 2-2
GP100UX/UD/UL
BODY, REAR FENDER REAR (SILVER)
€ 157.00
2-3
6311039280
ref: 2-3
GP100EX/ED E16
BODY, REAR FENDER REAR
€ 288.50
3
0916006006
ref: 3
MODEL X
WASHER
€ 2.00
4
0932005006
ref: 4
MODEL X
CUSHION
€ 4.00
5
0110706127
ref: 5
BOLT
€ 2.00
6
0832121067
ref: 6
WASHER,LOCK
€ 2.50
7
0916006006
ref: 7
WASHER
€ 2.00
8
0110708458
ref: 8
BOLT 8X45
€ 2.50
9
0832211088
ref: 9
WASHER
€ 2.00
10
0832121088
ref: 10
LOCK WASHER
€ 2.00
11
0831012088
ref: 11
NUT
€ 2.00
12
6333133601
ref: 12
GP100EX/ED E16
FLAP,RR FENDER MUD
€ 21.50
13
0110706166
ref: 13
GP100EX/ED E16
BOLT
€ 2.00
14
0832221067
ref: 14
GP100EX/ED E16
WASHER
€ 2.00
15
0916006006
ref: 15
GP100EX/ED E16
WASHER
€ 2.00
16
0832121067
ref: 16
GP100EX/ED E16
WASHER,LOCK
€ 2.50
17
0831011067
ref: 17
GP100EX/ED E16
NUT 6MM
€ 2.50
18
6831940C00
ref: 18
LABEL
€ 8.00
19
1196782000
ref: 19
LABEL,ASBESTOS WARNING
€ 2.00
