MUFFLER
GP100 1983 (D) UNITED KINGDOM (E02)

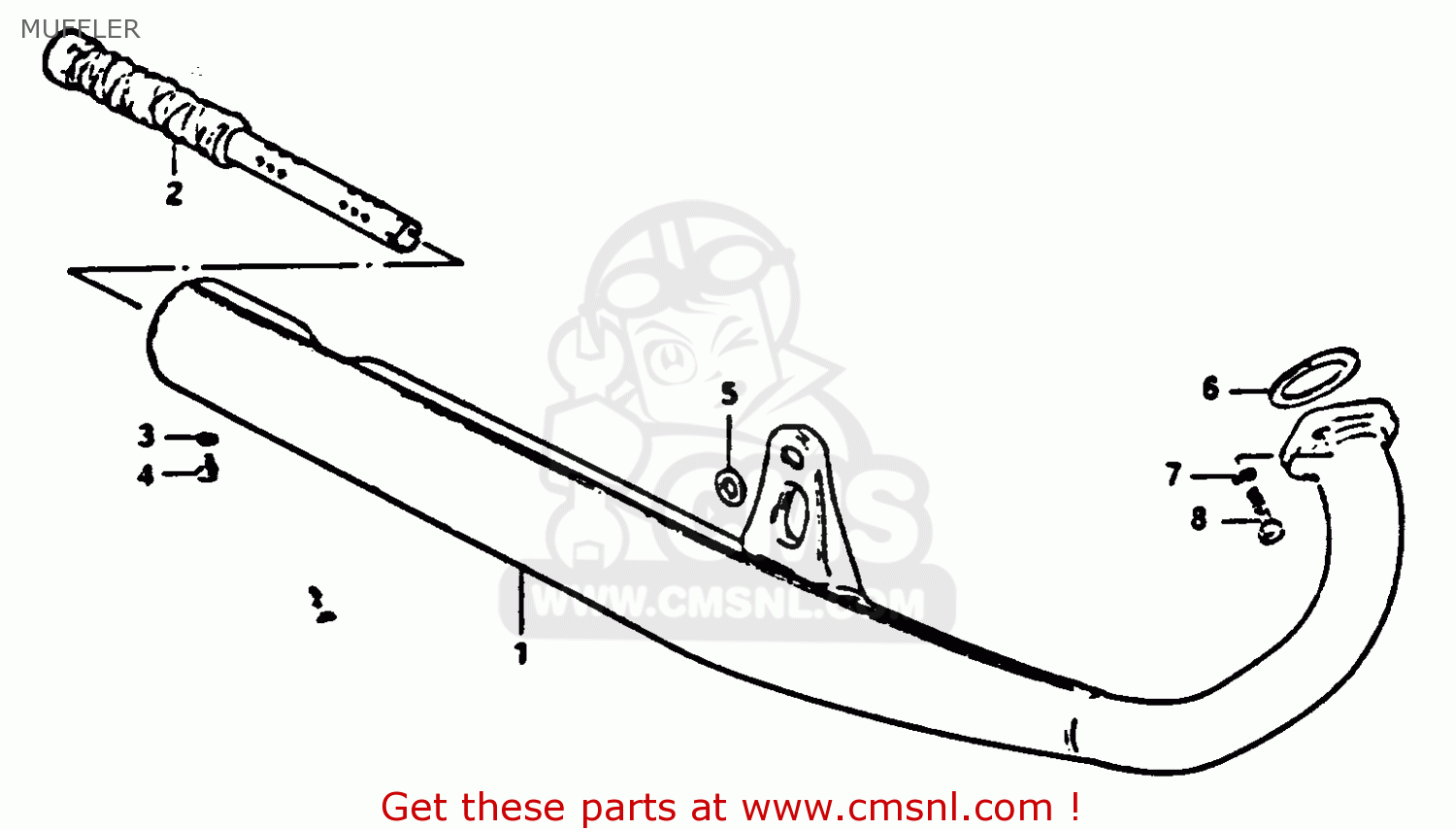

Muffler diagram GP100 1983 (D) UNITED KINGDOM (E02)
MUFFLER GP100 1983 (D) UNITED KINGDOM (E02)
×
prices are in EUR
ref
part #
description
quantity
1-1
1430139671
ref: 1-1
MODEL X
MUFFLER ASSY
€ 308.50
1-2
1430139142
ref: 1-2
MODEL D/L
MUFFLER ASSY
€ 308.50
2
1451039100
ref: 2
PIPE, BAFFLE
€ 30.50
3
0832121057
ref: 3
LOCK WASHER
€ 2.00
4
0912805004
ref: 4
BOLT(5X8)
€ 2.00
5
0916012012
ref: 5
WASHER (12.5X24X3.2)
€ 2.50
6
1418111020
ref: 6
GASKET,EXHAUST PIPE (NAS)
€ 8.00
7
0832121088
ref: 7
LOCK WASHER
€ 2.00
8
0110708258
ref: 8
BOLT
€ 2.50
