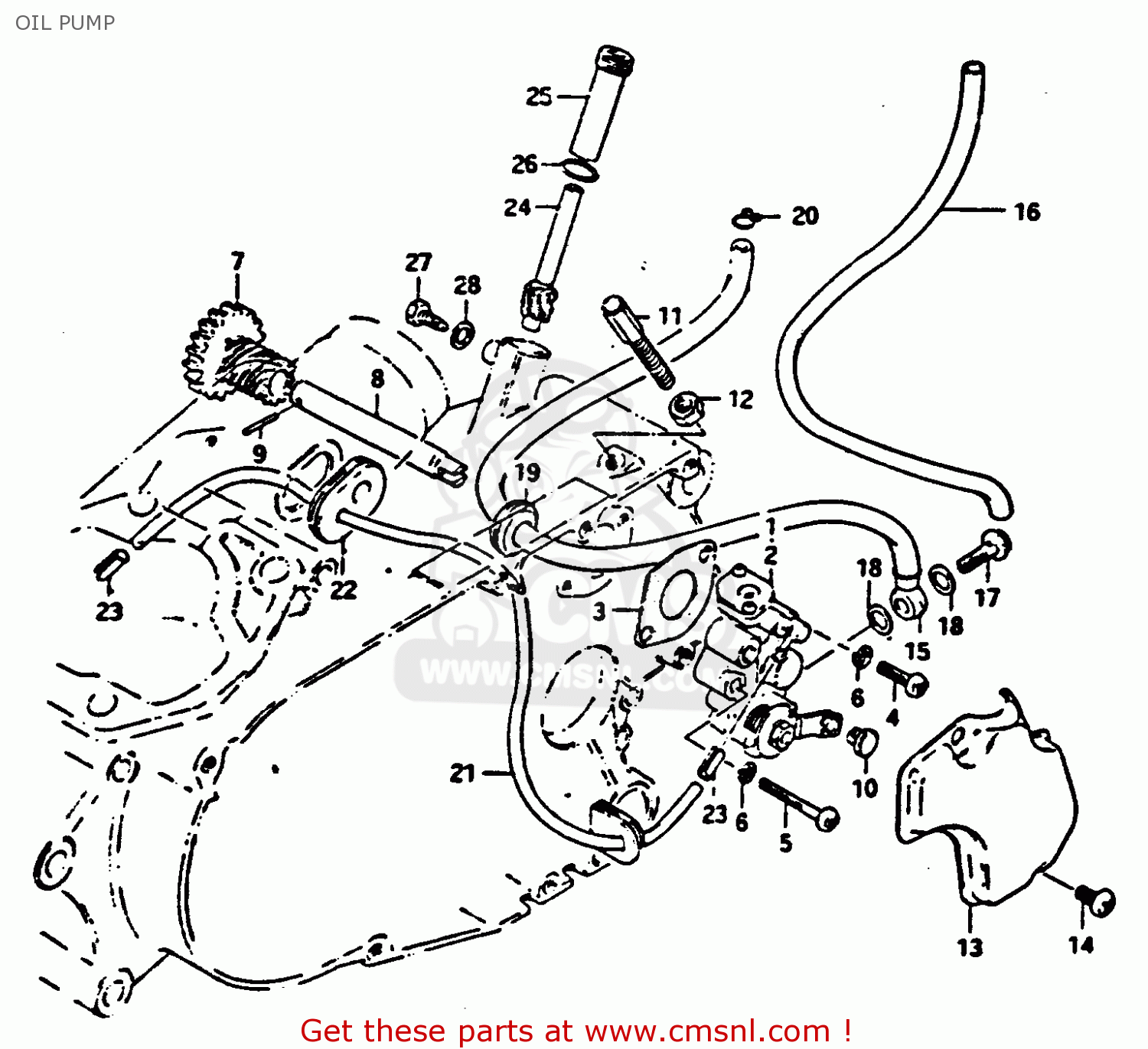

OIL PUMP

ref

part #

description

quantity

1

1610039110
ref: 1
MODEL X TO 16100-393

PUMP ASSY, OIL

€ 202.50

2

1610039300
ref: 2
MODEL D/L

PUMP ASSY,OIL

€ 202.50

3

1673103101
ref: 3

GASKET,OIL PUMP (NAS)

€ 2.50

4

0211205168
ref: 4

SCREW

€ 2.50

5

0211205308
ref: 5

SCREW

€ 1.50

6

0832121057
ref: 6

LOCK WASHER

€ 2.00

7

1632139100
ref: 7

GEAR,OIL PUMP DRIVE

€ 14.00

8

1632239100
ref: 8

SHAFT,OIL PUMP DRIVE GEAR

€ 13.50

9

0926102001
ref: 9

PIN(2.5X19.8)

€ 1.50

10

1629203112
ref: 10

TERMINAL,CABLE

€ 3.50

11

0911908014
ref: 11

BOLT

€ 3.50

12

0831012088
ref: 12

NUT

€ 2.00

13

1138539100
ref: 13

CAP,OIL PUMP INSPECTION

€ 5.50

14

0211206108
ref: 14

SCREW

€ 1.50

15

1681039100
ref: 15
MODEL X

HOSE,OIL NO.1

€ 17.50

16

0935245853600
ref: 16
MODEL D/L

HOSE (4.5X8.5X600)

€ 14.00

17

0936006003
ref: 17
MODEL X

UNION BOLT

€ 5.00

18

0916806004
ref: 18
MODEL X

GASKET(6.2X11X1).2 (NAS)

€ 1.50

19

0930808001
ref: 19

GROMMET

€ 2.00

20

0940108401
ref: 20

CLIP

€ 1.50

21

1682039100
ref: 21

HOSE,OIL NO.2

€ 6.00

22

1683139100
ref: 22

GROMMET,OIL HOSE NO.3

€ 4.00

23

0940104401
ref: 23

CLIP

€ 2.50

24

2643139100
ref: 24

GEAR, TACHO. DRIVEN (NT:10)

€ 18.50

25

2644139102
ref: 25

SLEEVE,TACHOMETER DRIVE GEAR

€ 12.00

26

0928010001
ref: 26

O RING(D:1.3,ID:9.6)

€ 2.00

27

0913506002
ref: 27

BOLT

€ 2.50

28

0832221067
ref: 28

WASHER

€ 2.00

all assemblies
