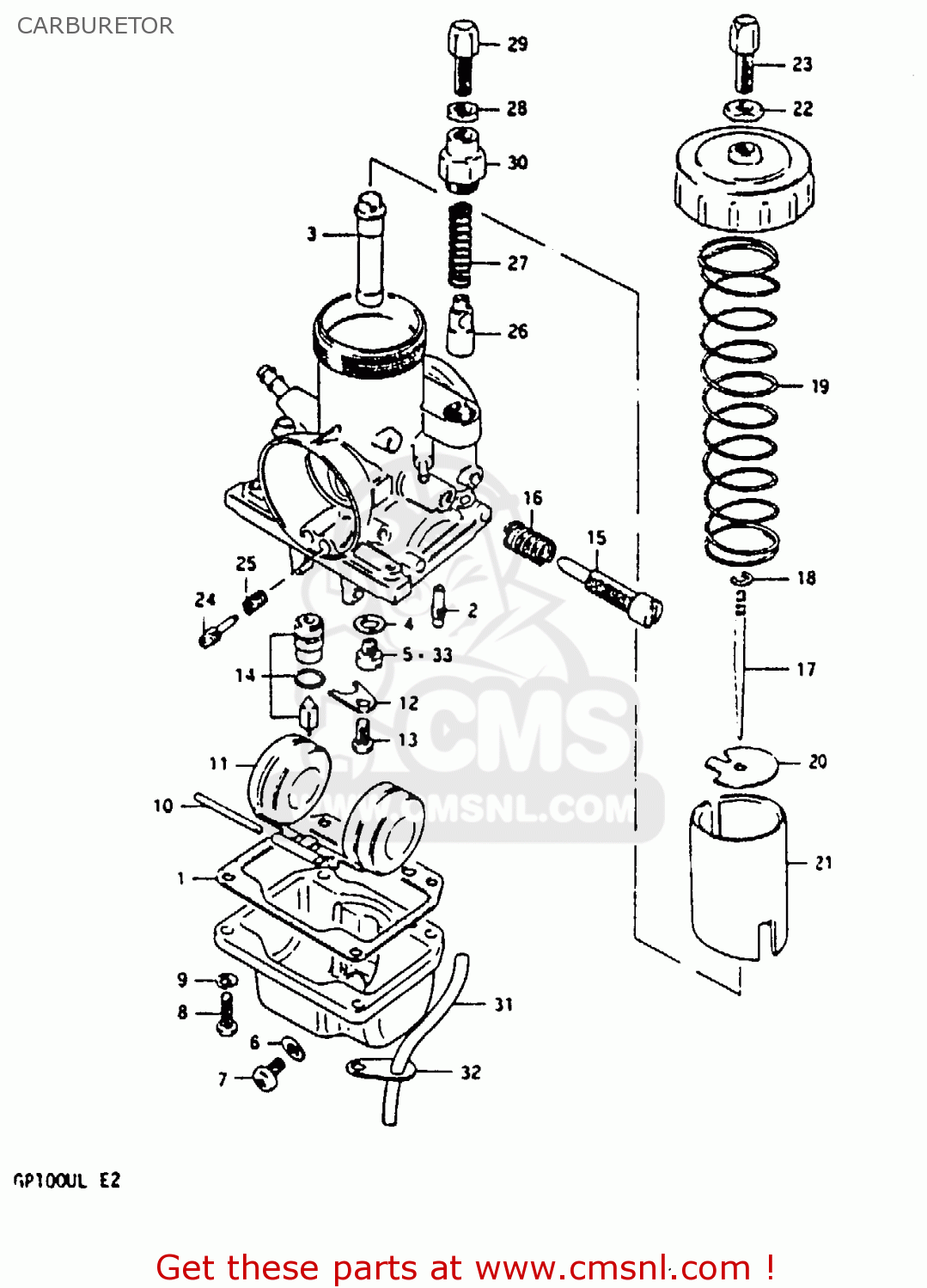

CARBURETOR

ref

part #

description

quantity

0

1320039240
ref: 0

CARBURETOR ASSY

€ 161.00

0

1320039211
ref: 0
E16

CARBURETOR ASSY

€ 0.00

1

1325139110
ref: 1

GASKET,FLOAT CAHMBER (NAS)

€ 11.50

2-1

0949225005
ref: 2-1

JET,PILOT(25)

€ 6.50

2-2

0949222006
ref: 2-2
E16

JET,PILOT(22.5)

€ 7.50

3-1

0949400225
ref: 3-1

JET,NEEDLE

€ 17.50

3-2

0949400294
ref: 3-2
E16

JET, NEEDLE (P-0)

€ 0.00

4

1333244080
ref: 4

WASHER,NEEDLE NOZZLE

€ 2.50

5-1

0949121016
ref: 5-1

JET,MAIN(105)

€ 9.50

5-2

0949121014
ref: 5-2
E16

JET,MAIN(107.5)

€ 8.50

6

1324905010
ref: 6

GASKET,DRAIN,PLUG (NAS)

€ 1.50

7

1324705010
ref: 7

PLUG

€ 6.00

8

0211204166
ref: 8

SCREW

€ 1.00

9

0832121046
ref: 9

LOCK WASHER

€ 2.00

10

1325401010
ref: 10

PIN,FLOAT

€ 3.00

11

1325239110
ref: 11

FLOAT

€ 26.00

12

1337339110
ref: 12

PLATE

€ 6.50

13

0211204086
ref: 13

SCREW

€ 2.00

14

1337039161
ref: 14

VALVE ASSEMBLY,NEEDLE

€ 54.50

15

1326740230
ref: 15

SCREW,THROTTLE STOP

€ 7.50

16

1326803110
ref: 16

SPRING,THROTTLE SCREW

€ 3.50

17

1338339200
ref: 17

NEEDLE,JET

€ 11.50

18

1339410010
ref: 18

CLIP

€ 4.50

19

1357330900
ref: 19

SPRING,THROTTLE VALVE

€ 6.00

20

1358139110
ref: 20

PLATE

€ 4.00

21-1

1355139200
ref: 21-1

VALVE,THROTTLE

€ 36.50

21-2

1355139211
ref: 21-2
E16

VALVE, THROTTLE (CA:2.5)

€ 0.00

22

1366116600
ref: 22

NUT

€ 5.00

23

1357748110
ref: 23

ADJUSTER,CABLE

€ 8.00

24

1326901010
ref: 24

SCREW,PILOT AIR

€ 14.50

25

1326839110
ref: 25

SPRING

€ 4.50

26

1341101010
ref: 26

PLUNGER,STARTER

€ 14.00

27

1341701010
ref: 27

SPRING

€ 3.50

28

1366103010
ref: 28

NUT

€ 3.50

29

1357748110
ref: 29

ADJUSTER,CABLE

€ 8.00

30

1341863110
ref: 30

CAP

€ 6.50

31

1368336A00
ref: 31
L:300@r250

HOSE

€ 8.00

32

1369330010
ref: 32

PLATE

€ 4.00

33-1

0949192004
ref: 33-1
OPT

JET,MAIN(92.5)

€ 8.50

33-2

0949195005
ref: 33-2
OPT

JET,MAIN(95)

€ 8.50

33-3

0949120017
ref: 33-3
OPT

JET,MAIN

€ 10.50

33-4

0949120012
ref: 33-4
OPT

JET,MAIN(102.5)

€ 8.50

33-5

0949121014
ref: 33-5
OPT

JET,MAIN(107.5)

€ 8.50

33-6

0949122016
ref: 33-6
OPT

JET,MAIN(110)

€ 7.00

33-7

0949122015
ref: 33-7
OPT

JET,MAIN(112.5)

€ 11.00
