FRAME COVER (GP100UL E2)
GP100U 1990 (L)

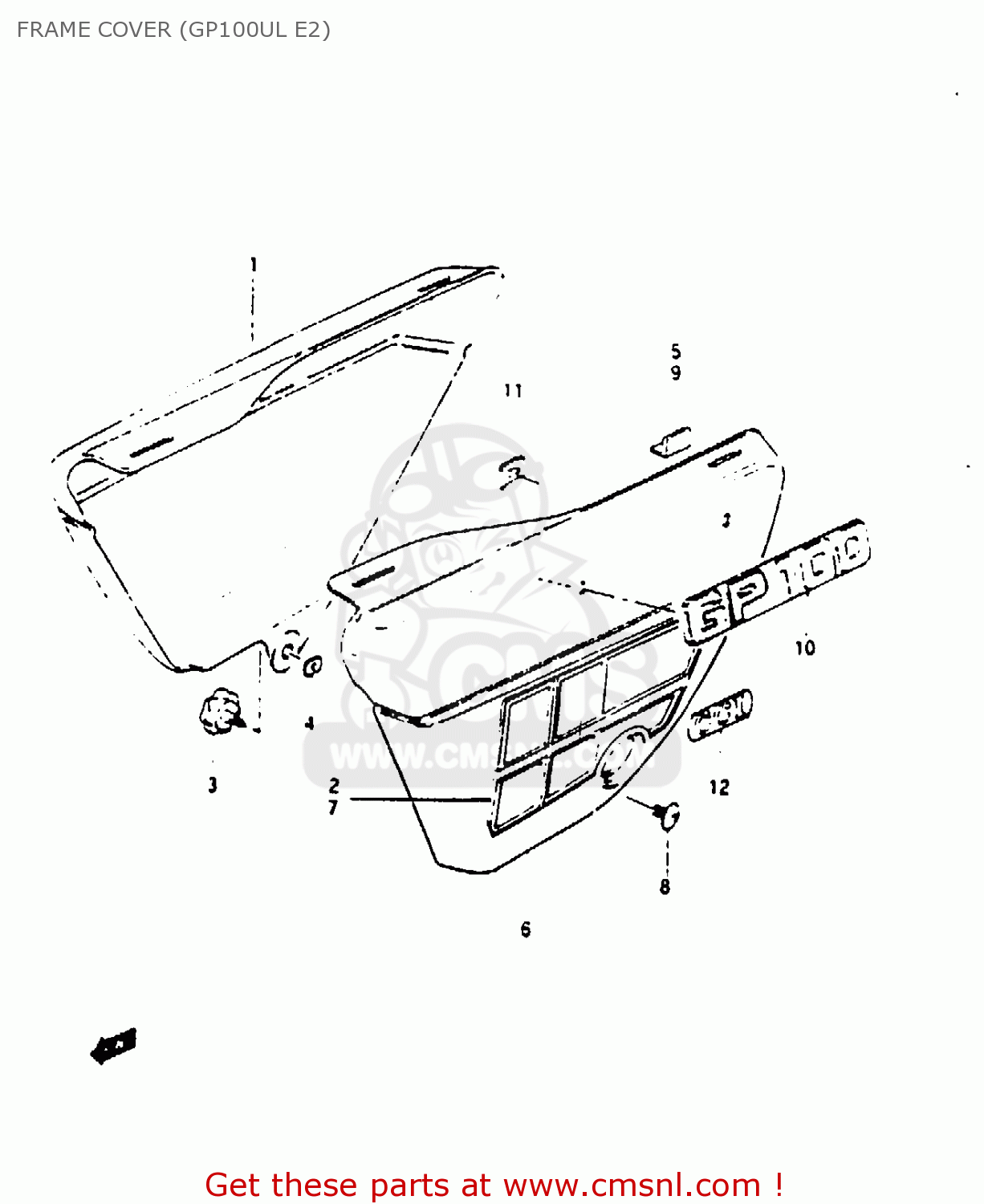

Frame cover (gp100ul e2) diagram GP100U 1990 (L)
FRAME COVER (GP100UL E2) GP100U 1990 (L)
×
prices are in EUR
ref
part #
description
quantity
1-1
47111391000NH
ref: 1-1
COVER, FRAME RH (RED)
€ 73.00
1-2
47111391000NG
ref: 1-2
COVER,FRAME,R(BLUE)
€ 51.00
2-1
6813039280D54
ref: 2-1
FOR 0NH
TAPE SET, FRAME COVER RH
€ 24.50
2-2
6813039280D55
ref: 2-2
FOR 0NG
TAPE SET, FRAME COVER RH
€ 24.50
3
4713033101
ref: 3
KNOB,FRAME COVER,R
€ 7.50
4
0915206002
ref: 4
NUT
€ 2.00
5
4711745000
ref: 5
CUSHION,FRAME COVER
€ 1.50
6-1
47211391000NH
ref: 6-1
COVER, FRAME LH (RED)
€ 44.50
6-2
47211391000NG
ref: 6-2
COVER, FRAME LH (BLUE)
€ 52.00
7-1
6814039280D54
ref: 7-1
FOR 0NH
TAPE SET, FRAME COVER LH
€ 21.00
7-2
6814039280D55
ref: 7-2
FOR 0NG
TAPE SET, FRAME COVER LH
€ 0.00
8
0214206167
ref: 8
SCREW
€ 2.00
9
4711745000
ref: 9
CUSHION,FRAME COVER
€ 1.50
10
6814139220
ref: 10
EMBLEM
€ 28.00
11
0914803003
ref: 11
NUT
€ 2.00
12
6817126000
ref: 12
EMBLEM,CCIS
€ 4.00
