MUFFLER

GP100U 1990 (L)

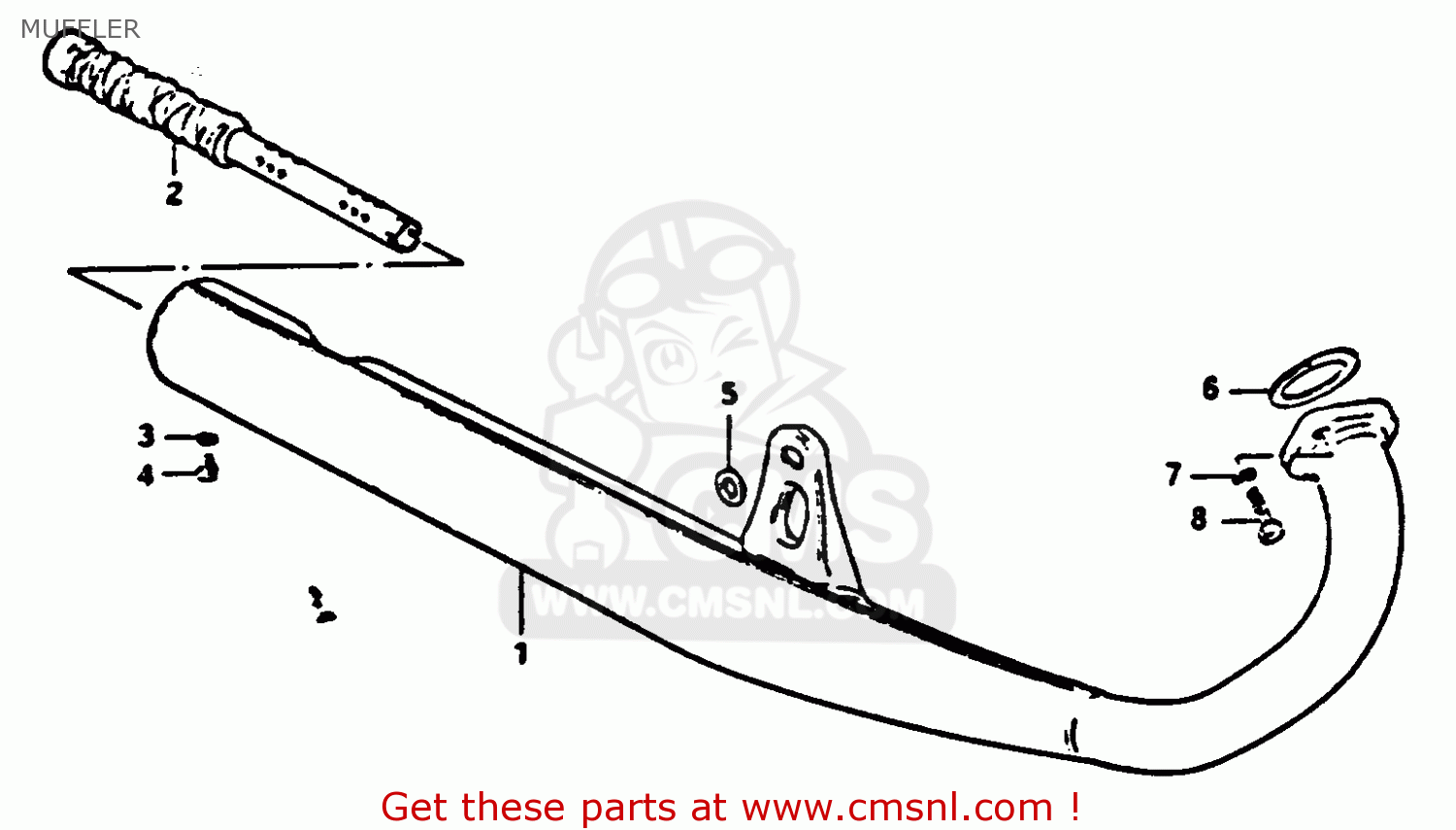

Muffler diagram GP100U 1990 (L)

MUFFLER GP100U 1990 (L)

MUFFLER GP100U 1990 (L)

prices are in EUR

ref

part #

description

quantity

1-1

1430139671
ref: 1-1
MODEL X

MUFFLER ASSY

€ 308.50

1-2

1430139142
ref: 1-2
MODEL D/L

MUFFLER ASSY

€ 308.50

2

1451039100
ref: 2

PIPE, BAFFLE

€ 30.50

3

0832121057
ref: 3

LOCK WASHER

€ 2.00

4

0912805004
ref: 4

BOLT(5X8)

€ 2.00

5

0916012012
ref: 5

WASHER (12.5X24X3.2)

€ 2.50

6

1418111020
ref: 6

GASKET,EXHAUST PIPE (NAS)

€ 8.00

7

0832121088
ref: 7

LOCK WASHER

€ 2.00

8

0110708258
ref: 8

BOLT

€ 2.50
