SEAT (E2)

GP100U 1990 (L)

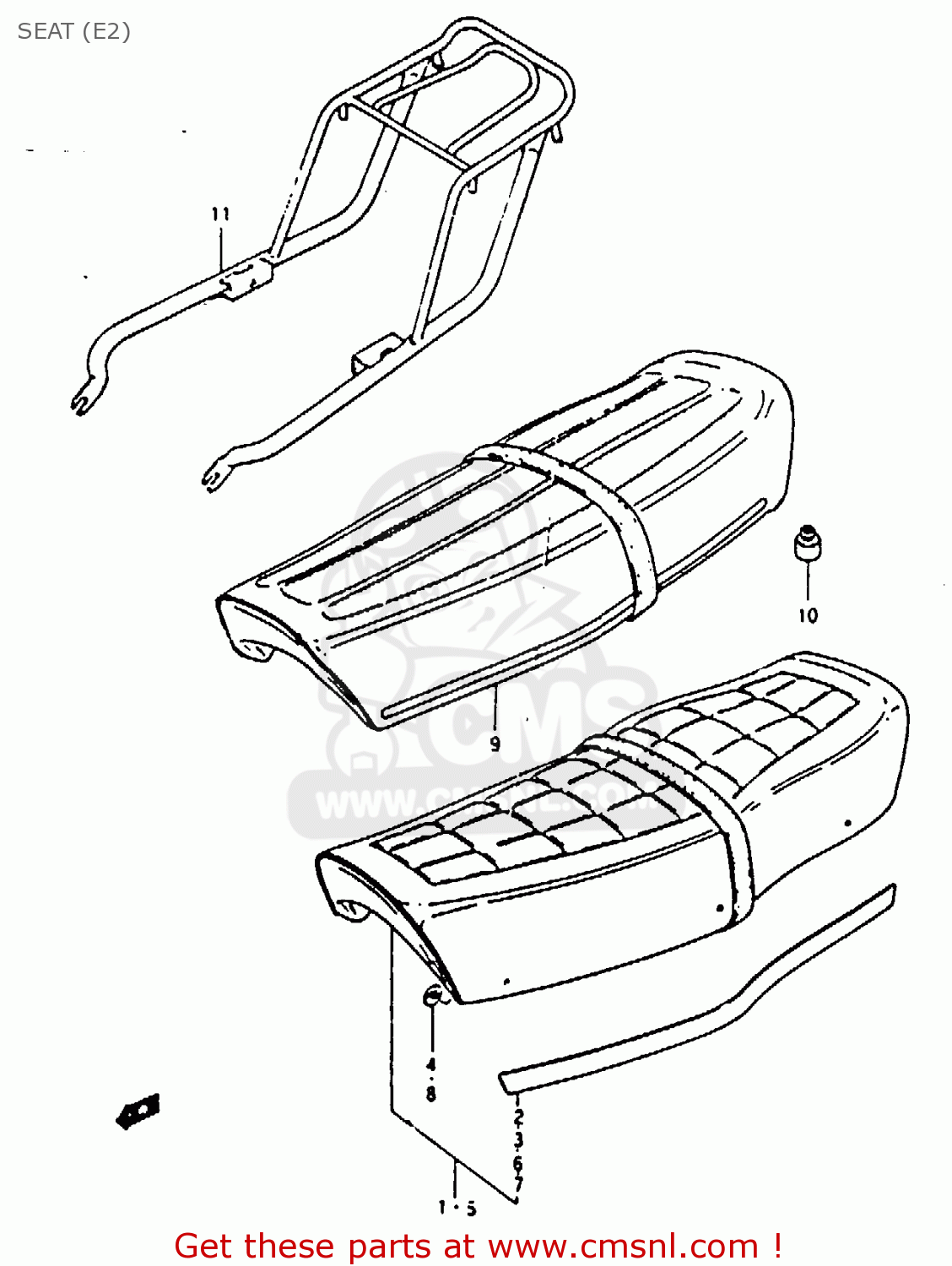

Seat (e2) diagram GP100U 1990 (L)

SEAT (E2) GP100U 1990 (L)
SEAT (E2) GP100U 1990 (L)
SEAT (E2) GP100U 1990 (L)
prices are in EUR
ref
part #
description
quantity
1-1
451003912107P
ref: 1-1
MODEL X
SEAT ASSY (RED)
€ 228.00
1-2
451003912182F
ref: 1-2
MODEL D
SEAT ASSY
€ 228.00
2
451923912007P
ref: 2
MOUL, LH (RED)
€ 12.00
3
451913912007P
ref: 3
MOUL, RH (RED)
€ 12.00
4
0914804004
ref: 4
NUT
0914804004
€ 2.00
5-1
451003912108Y
ref: 5-1
MODEL X
SEAT ASSY (BLUE)
€ 0.00
5-2
451003912182G
ref: 5-2
MODEL D
SEAT ASSY
€ 0.00
6
451923912008Y
ref: 6
MOUL, LH (BLUE)
€ 12.00
7
451913912008Y
ref: 7
MOUL, RH (BLUE)
€ 12.00
8
0914804004
ref: 8
NUT
0914804004
€ 2.00
9
451003922148F
ref: 9
GP100U
SEAT ASSY (BLACK)
€ 228.00
10
0932110001
ref: 10
GP100U
CUSHION
0932110001
€ 2.50
11
4631039111
ref: 11
OPT
CARRIER,SPORT
4631039111
€ 185.50
