CAM SHAFT - VALVE

GS1000E 1978 (C) GENERAL EXPORT (E01)

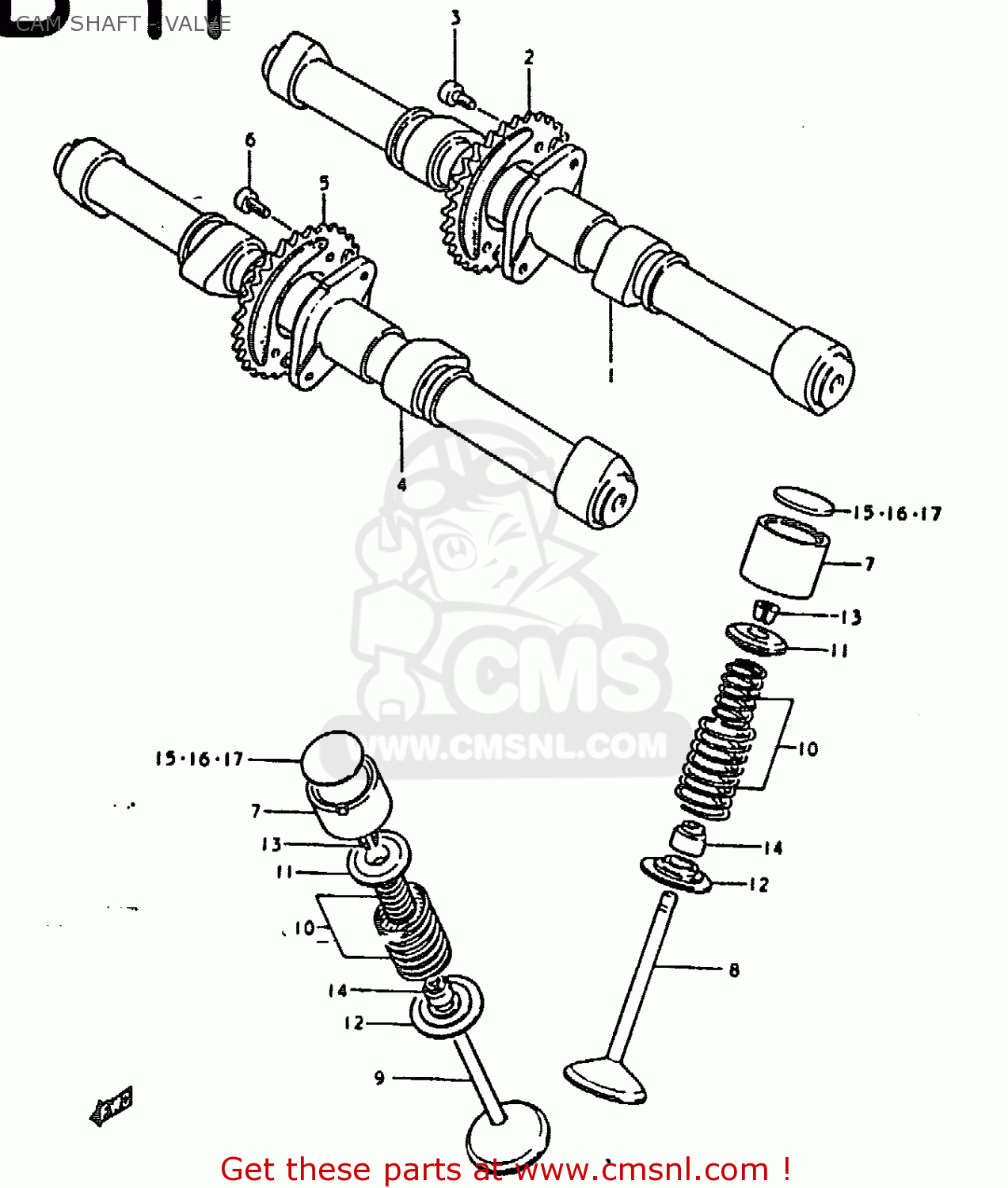

Cam shaft - valve diagram GS1000E 1978 (C) GENERAL EXPORT (E01)

CAM SHAFT - VALVE GS1000E 1978 (C) GENERAL EXPORT (E01)
CAM SHAFT - VALVE GS1000E 1978 (C) GENERAL EXPORT (E01)
CAM SHAFT - VALVE GS1000E 1978 (C) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
1271149000
ref: 1
CAMSHAFT
€ 236.00
2
1274049050
ref: 2
NT:30
SPROCKET,CAMSHAFT
1274049050
€ 47.50
3
0910606024
ref: 3
BOLT 6X11
0910606024
€ 2.50
4
1272149000
ref: 4
CAMSHAFT,EXHAUST
1272149000
€ 287.00
5
1275049050
ref: 5
NT:30
SPROCKET,EXHAUST CAMSHAFT
1275049050
€ 34.50
6
0910606024
ref: 6
BOLT 6X11
0910606024
€ 2.50
7
1289145000
ref: 7
TAPPET
1289145000
€ 45.00
8
1291149020
ref: 8
VALVE,INTAKE
1291149020
€ 31.00
9
1291249020
ref: 9
VALVE,EXHAUST
1291249020
€ 60.00
10
1290045810
ref: 10
SPRING SET,VALVE
1290045810
€ 17.00
11
1293145000
ref: 11
RETAINER,VALVE SPRING
1293145000
€ 6.00
12
1293345001
ref: 12
SEAT,VALVE SPRING
1293345001
€ 5.50
13
1290045820
ref: 13
SHIM,TAPPET
1290045820
€ 2.50
14
0928907002
ref: 14
SEAL,OIL(7X14.4X9)
0928907002
€ 3.00
15-1
1289245000
ref: 15-1
T:2.15
SHIM,TAPPET
1289245000
€ 17.00
15-2
1289245001
ref: 15-2
T:2.20
SHIM,TAPPET
€ 16.50
15-3
1289245002
ref: 15-3
T:2.25
SHIM,TAPPET
€ 17.00
15-4
1289245003
ref: 15-4
T:2.30
SHIM,TAPPET
€ 16.00
15-5
1289245004
ref: 15-5
T:2.35
SHIM,TAPPET
€ 16.50
15-6
1289245005
ref: 15-6
T:2.40
SHIM,TAPPET
€ 17.00
15-7
1289245006
ref: 15-7
T:2.45
SHIM,TAPPET
€ 17.00
15-8
1289245007
ref: 15-8
T:2.50
SHIM,TAPPET
€ 16.00
15-9
1289245008
ref: 15-9
T:2.55
SHIM,TAPPET
€ 16.50
16-1
1289245009
ref: 16-1
T:2.60
SHIM,TAPPET
€ 16.00
16-2
1289245010
ref: 16-2
T:2.65
SHIM,TAPPET
1289245010
€ 17.00
16-3
1289245011
ref: 16-3
T:2.70
SHIM,TAPPET
1289245011
€ 17.00
16-4
1289245012
ref: 16-4
T:2.75
SHIM,TAPPET
1289245012
€ 17.00
16-5
1289245013
ref: 16-5
T:2.80
SHIM,TAPPET
1289245013
€ 16.50
16-6
1289245014
ref: 16-6
T:2.85
SHIM,TAPPET
€ 17.00
16-7
1289245015
ref: 16-7
T:2.90
SHIM,TAPPET
€ 17.00
16-8
1289245016
ref: 16-8
T:2.95
SHIM,TAPPET
€ 17.00
16-9
1289245017
ref: 16-9
T:3.00
SHIM,TAPPET
€ 17.00
17-1
1289245018
ref: 17-1
T:3.05
SHIM,TAPPET
1289245018
€ 16.50
17-2
1289245019
ref: 17-2
T:3.10
SHIM,TAPPET
€ 17.00
18
1280045810
ref: 18
NOT SHOWN
SHIM SET,TAPPET
€ 1,227.00
19
9900069480
ref: 19
NOT SHOWN
CASE
€ 152.50
