FRONT MASTER CYLINDER

GS1000E 1978 (C) GENERAL EXPORT (E01)

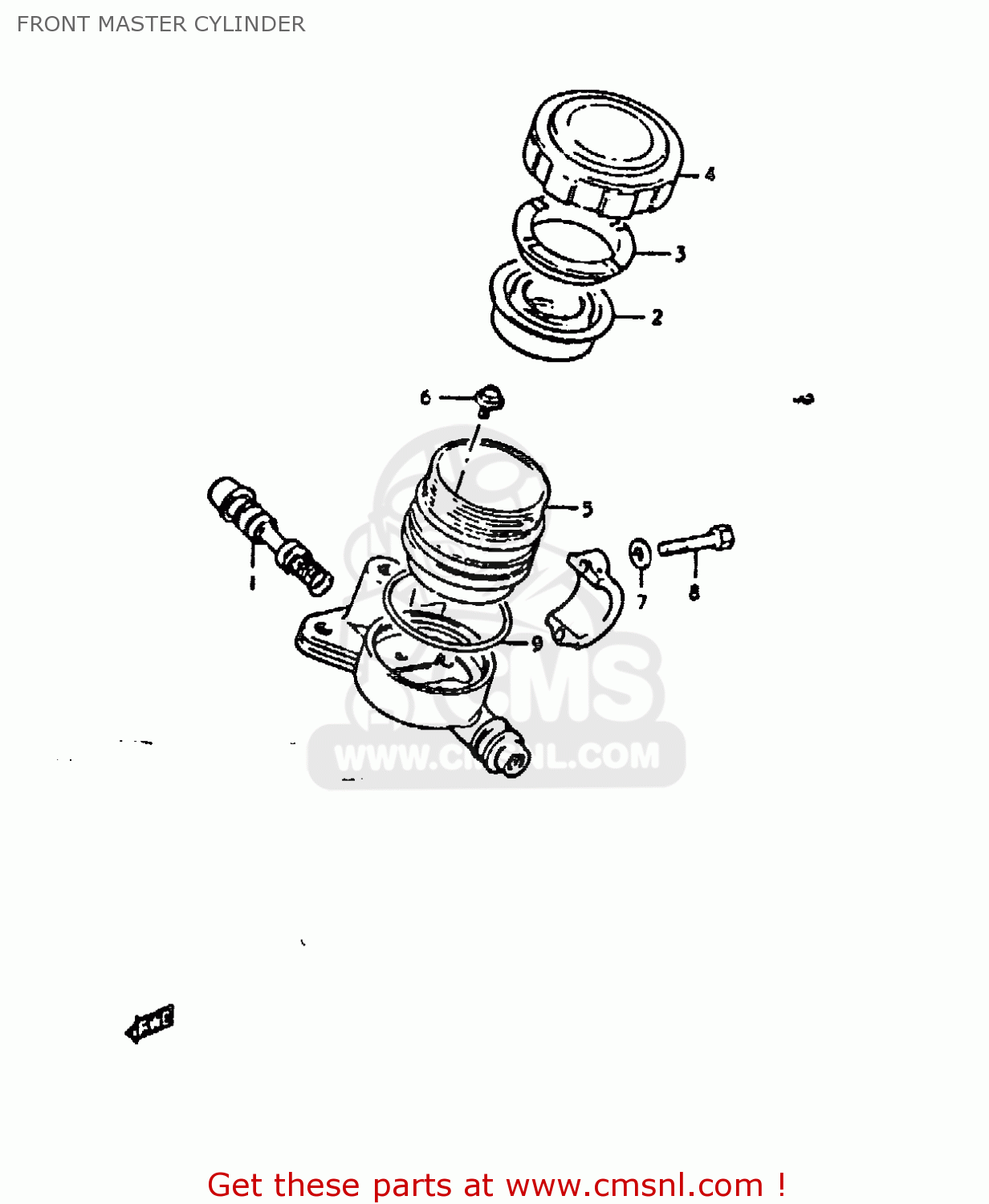

Front master cylinder diagram GS1000E 1978 (C) GENERAL EXPORT (E01)

FRONT MASTER CYLINDER GS1000E 1978 (C) GENERAL EXPORT (E01)

FRONT MASTER CYLINDER GS1000E 1978 (C) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

0

5960047022
ref: 0
ASCO

CYLINDER ASSEMBLY,MASTER

€ 125.00

1

5960047810
ref: 1

PISTON & CUP SET

€ 33.00

2

5966733620
ref: 2

DIAPHRAGM

€ 25.00

3

5966833620
ref: 3

PLATE

€ 6.00

4

5966933621
ref: 4

CAP

€ 35.00

5

5968747021
ref: 5

RESERVOIR

€ 50.00

6

5968833620
ref: 6

SCREW,MASTER CYLINDER

€ 1.50

7

0832221068
ref: 7

WASHER

€ 2.00

8

0110706258
ref: 8

BOLT

€ 2.00

9

5968633620
ref: 9

O RING

€ 6.00
