RH HANDLE SWITCH

GS1000E 1978 (C) GENERAL EXPORT (E01)

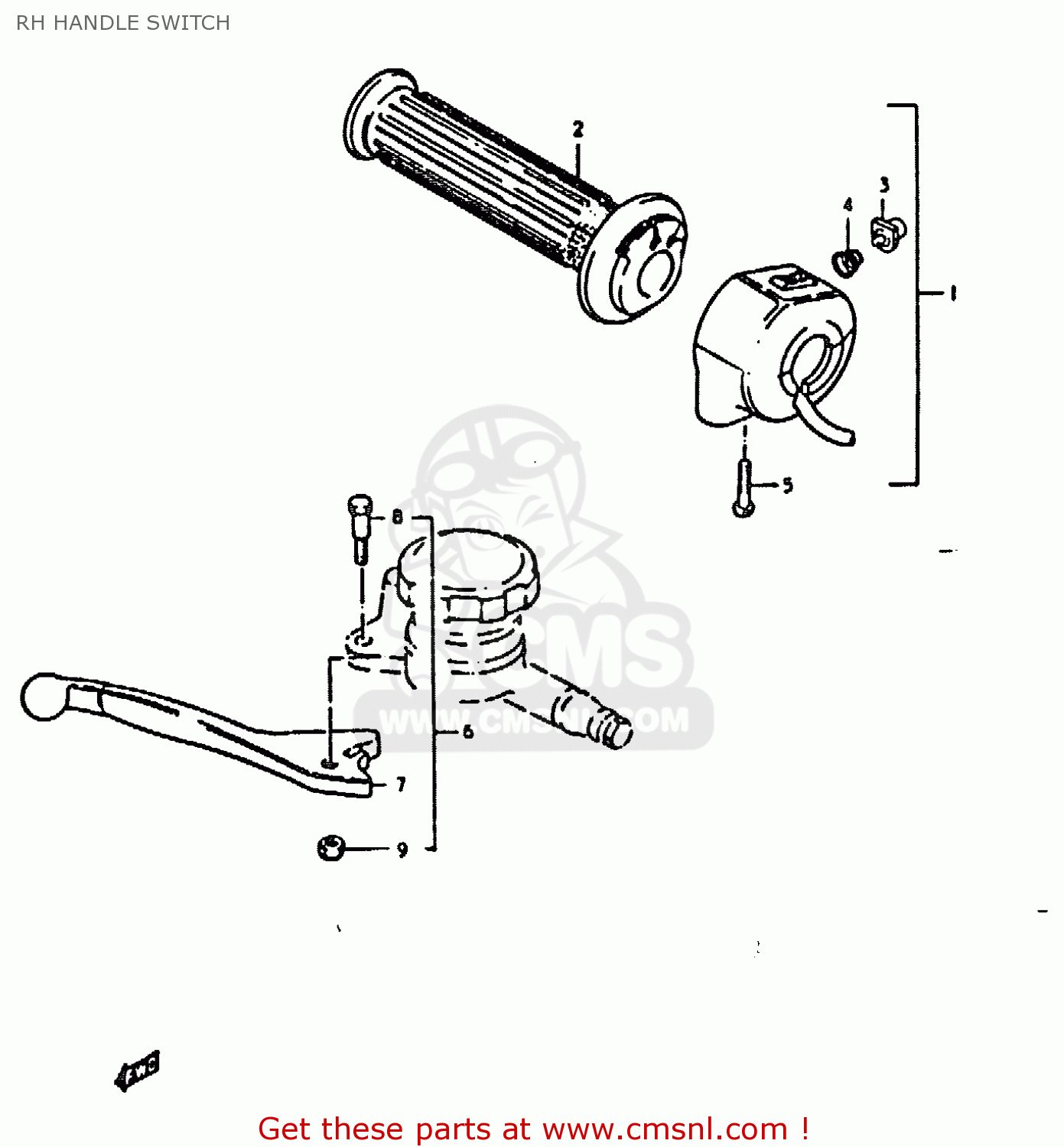

Rh handle switch diagram GS1000E 1978 (C) GENERAL EXPORT (E01)

RH HANDLE SWITCH GS1000E 1978 (C) GENERAL EXPORT (E01)
RH HANDLE SWITCH GS1000E 1978 (C) GENERAL EXPORT (E01)
RH HANDLE SWITCH GS1000E 1978 (C) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
5710049010
ref: 1
GRIP ASSY, THROTTLE
€ 57.00
2
5711034600
ref: 2
GRIP,THROTTLE
€ 27.50
3
5737001311
ref: 3
BUTTON
5737001311
€ 4.00
4
5738201311
ref: 4
SPRING
5738201311
€ 3.00
5
0211205258
ref: 5
SCREW
0211205258
€ 2.00
6-1
5730039101
ref: 6-1
LEVER ASSEMBLY,BRAKE
€ 27.50
7-1
5742039100
ref: 7-1
LEVER,BRAKE
5742039100
€ 27.50
8
5743118620
ref: 8
BOLT,LEVER
5743118620
€ 8.00
9
0831921068
ref: 9
NUT 6MM
0831921068
€ 2.00
