LH HANDLE SWITCH
GS1000E 1978 (C) GENERAL EXPORT (E01)

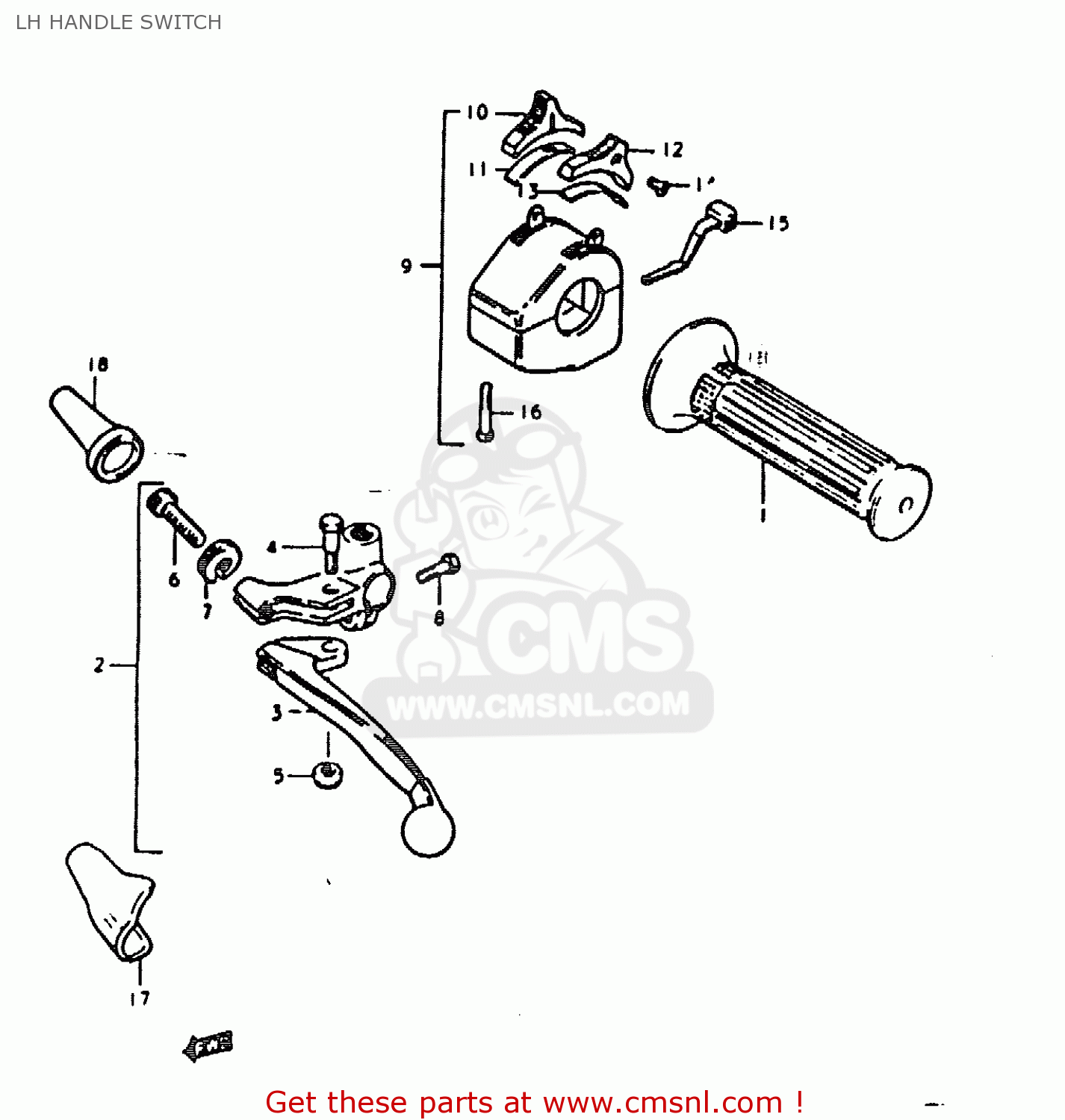

Lh handle switch diagram GS1000E 1978 (C) GENERAL EXPORT (E01)
LH HANDLE SWITCH GS1000E 1978 (C) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
5721128600
ref: 1
GRIP,L
€ 10.00
2
5750049000
ref: 2
LEVER ASSEMBLY
€ 49.50
3
5762049000
ref: 3
LEVER,CLUTCH
€ 30.50
4
5743149000
ref: 4
BOLT,LEVER PIVOT
€ 6.00
5
0831921068
ref: 5
NUT 6MM
€ 2.00
6
5744111010
ref: 6
ADJUSTER,CABLE
€ 8.00
7
5744211010
ref: 7
NUT,CABLE ADJUSTER
€ 4.00
8
0110706208
ref: 8
BOLT
€ 2.00
9-1
3740049030
ref: 9-1
SWITCH ASSY, HANDLE LH
€ 192.50
10
5771233011
ref: 10
KNOB,HANDLE SWITCH
€ 6.00
11
5771433010
ref: 11
PLATE,SWITCH KNOB
€ 3.00
12-1
5771333010
ref: 12-1
KNOB,HANDLE SWITCH
€ 6.00
13-1
5771433010
ref: 13-1
PLATE,SWITCH KNOB
€ 3.00
14
0312103068
ref: 14
SCREW
€ 2.00
15
5765033013
ref: 15
KNOB,TURN SIGNAL SWITCH
€ 10.00
16
0912505105
ref: 16
SCREW
€ 4.50
17
5766131000
ref: 17
COVER,CLUTCH LEVER
€ 5.50
18
5827331000
ref: 18
BOOT,CLUTCH CABLE
€ 2.50
