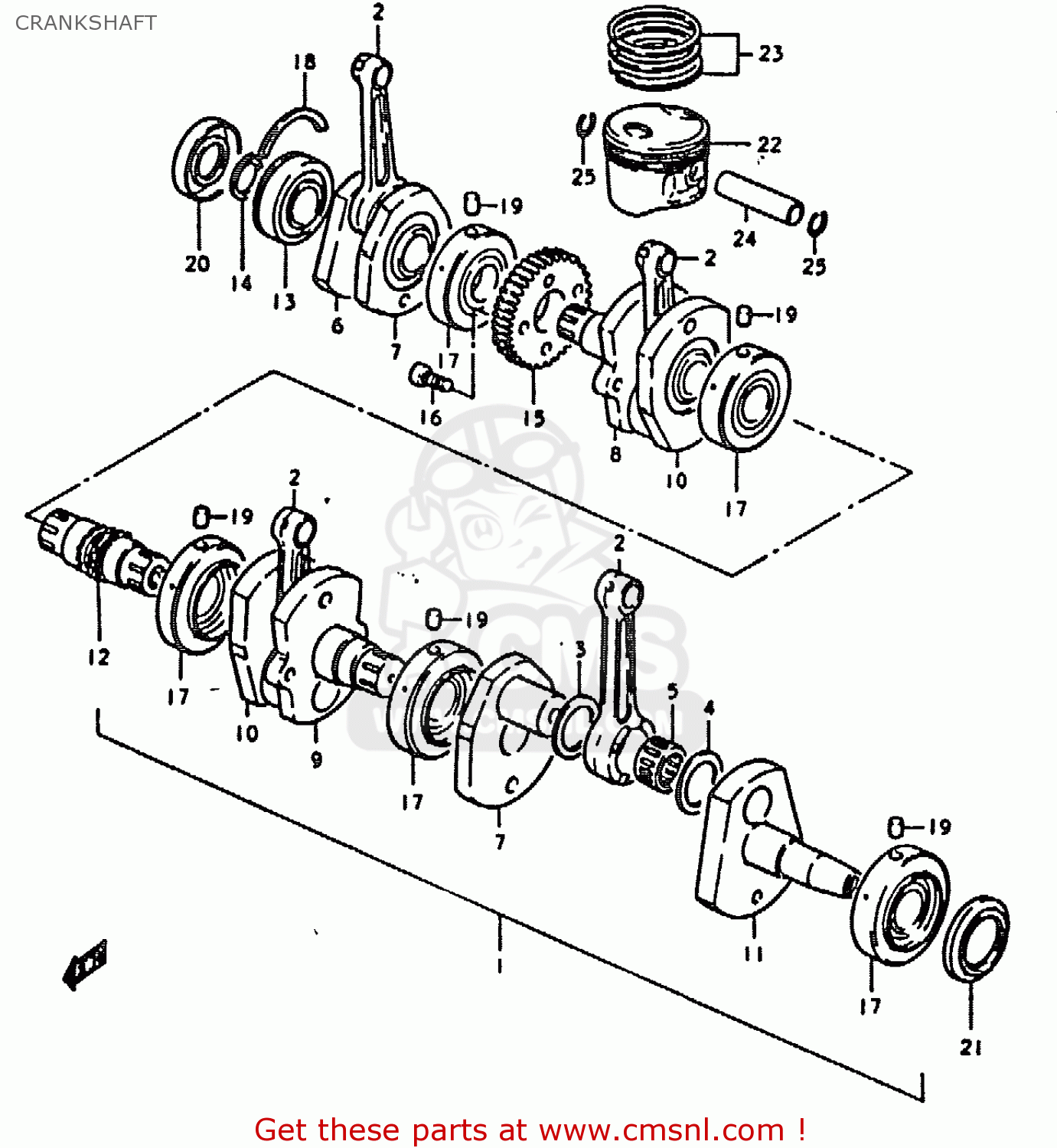

CRANKSHAFT

ref

part #

description

quantity

1-2

1220049002
ref: 1-2

CRANKSHAFT ASSEMBLY

€ 621.00

2

1216149000
ref: 2

ROD,CONNECTING

€ 125.50

3

0916029008
ref: 3
29*48*2

WASHER (29X48X2)

€ 6.00

4

0916029009
ref: 4
29*48*1

WASHER (29X48X1)

€ 5.50

5

0926329002
ref: 5

BEARING(29X39X20)

€ 28.50

6

1222049000
ref: 6

CRANKSHAFT

€ 0.00

7

1223049000
ref: 7

WEB,CRANK

€ 153.00

8-2

1224149002
ref: 8-2

CRANKSHAFT

€ 0.00

9-2

1227149002
ref: 9-2

CRANKSHAFT

€ 0.00

10

1225049000
ref: 10

WEB,CRANK,MIDDLE

€ 127.50

11

1226149000
ref: 11

CRANKSHAFT,LEFT

€ 135.00

12-2

1228149002
ref: 12-2
NT:15

SHAFT,TIMING CHAIN DRIVE

€ 92.50

13

0926230033
ref: 13

BEARING(30X72X19)

€ 47.00

14

0833111308
ref: 14

CIRCLIP,30MM

€ 3.00

15

2111149001
ref: 15
NT:49

GEAR,PRIMARY DRIVE

€ 56.50

16

0910608006
ref: 16

BOLT

€ 3.00

17

0926432002
ref: 17

BEARING

€ 138.00

18

0939072004
ref: 18

C RING

€ 3.00

19

0422107129
ref: 19

PIN

€ 1.50

20

0928330021
ref: 20

SEAL,OIL(30X72X11)

€ 22.00

21

0928948002
ref: 21
STARTER CLUTCH GEAR

SEAL,OIL(47.3X60X6.5)

€ 12.00

22-1

1211149000
ref: 22-1

PISTON

€ 103.00

22-2

1211149000050
ref: 22-2

PISTON 0.50

€ 136.50

22-3

1211149000100
ref: 22-3

PISTON

€ 142.50

23-1

1214049001
ref: 23-1
FROM 12100-49810

RING SET,PISTON

€ 73.50

23-2

1214049001050
ref: 23-2
FROM 12100-49810-050

RING SET,PISTON (OS:0.5)

€ 53.50

23-3

1214049001100
ref: 23-3
FROM 12100-49810-100

RING SET,PISTON (OS:1.0)

€ 61.50

24

1215115002
ref: 24

PIN,PISTON (18MM)

€ 14.50

25

0938118002A
ref: 25

CIRCLIP,PISTON PIN

€ 1.50
