CYLINDER

GS1000H 1979 (N) GENERAL EXPORT (E01)

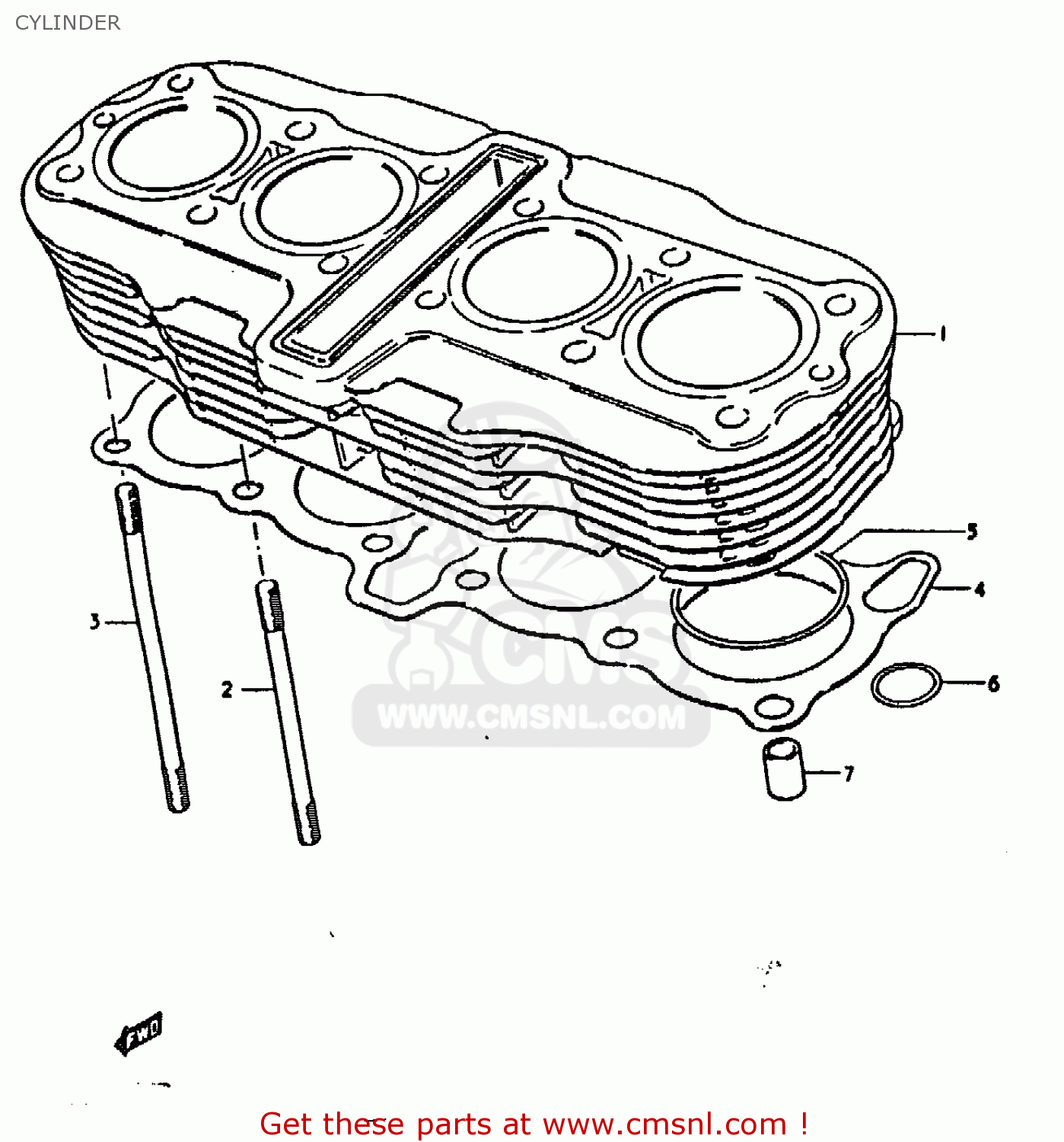

Cylinder diagram GS1000H 1979 (N) GENERAL EXPORT (E01)

CYLINDER GS1000H 1979 (N) GENERAL EXPORT (E01)

CYLINDER GS1000H 1979 (N) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-2

1121049001
ref: 1-2

CYLINDER

€ 891.00

2-2

0910810027
ref: 2-2

BOLT,STUD

€ 12.00

3-2

0910810028
ref: 3-2

STUD

€ 9.00

4

1124149000
ref: 4

GASKET,CYLINDER (MCA)

€ 17.00

5

0928074002
ref: 5

O RING(D:2,ID:74)

€ 6.00

6

0928021007
ref: 6

O RING(D:3.05)

€ 9.00

7

0920613001
ref: 7

PIN

€ 2.50
