SEAT
GS1000H 1979 (N) GENERAL EXPORT (E01)

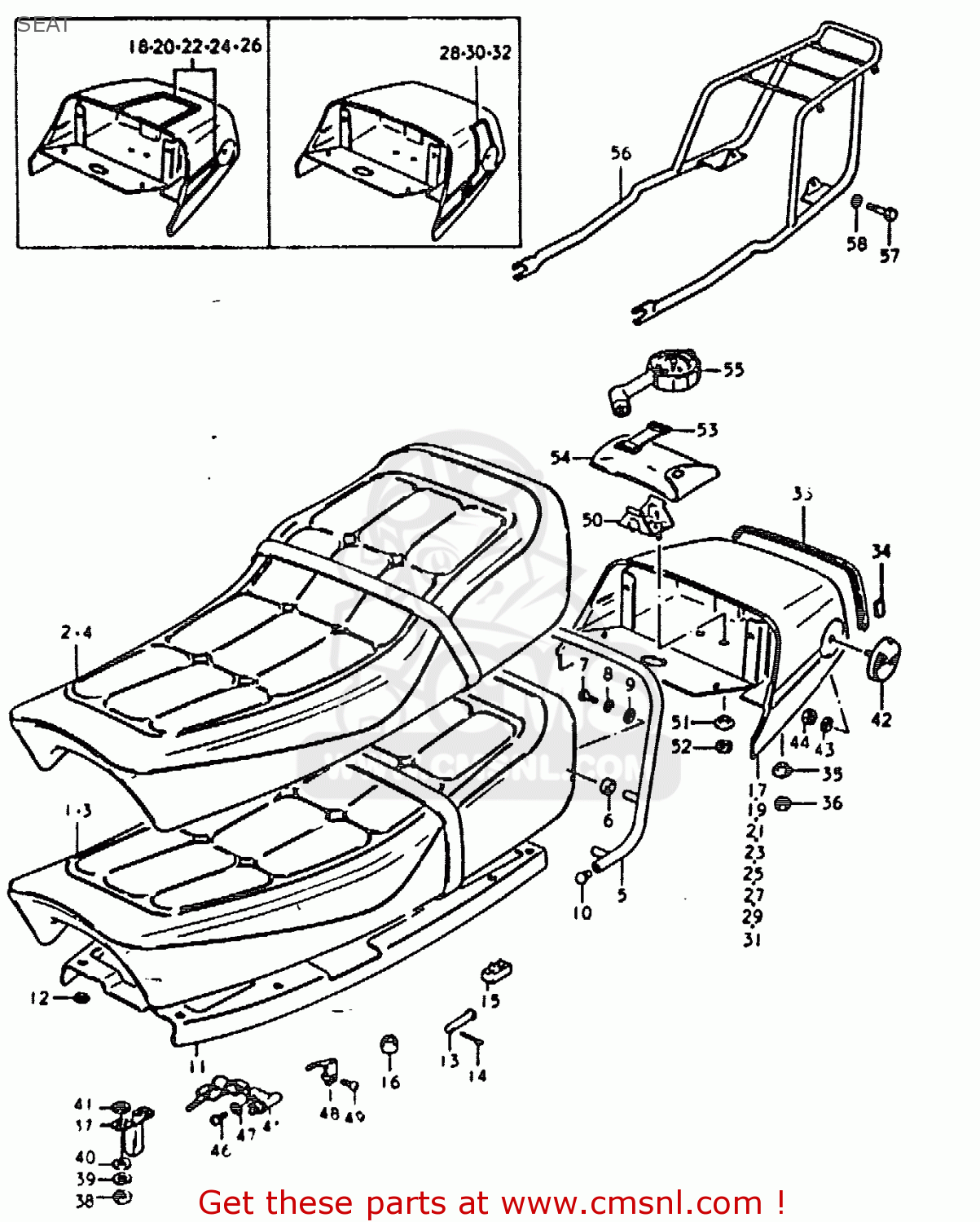

Seat diagram GS1000H 1979 (N) GENERAL EXPORT (E01)
SEAT GS1000H 1979 (N) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
2-2
451004902240P
ref: 2-2
N = :EXCEPT E1 SPEC.
SEAT, STEP TYPE (WITH BAND)
€ 188.50
3-2
451004901240P
ref: 3-2
EXCEPT E1 SPEC.
SEAT ASSEMBLY
€ 436.00
4-2
451004900240P
ref: 4-2
EXCEPT E1 SPEC.
SEAT ASSEMBLY
€ 188.50
5-1
4621149010
ref: 5-1
EXCEPT E1 SPEC.
HANDLE,PILLION RIDER
€ 59.50
5-2
4621149000
ref: 5-2
EXCEPT E1 SPEC.
HANDLE,PILLION RIDER
€ 59.50
6
4621249000
ref: 6
EXCEPT E1 SPEC.
CUSHION
€ 15.00
7
0110708208
ref: 7
EXCEPT E1 SPEC.
BOLT
€ 3.00
8
0832121088
ref: 8
EXCEPT E1 SPEC.
LOCK WASHER
€ 2.00
9
0832211088
ref: 9
EXCEPT E1 SPEC.
WASHER
€ 2.00
10
4621349000
ref: 10
EXCEPT E1 SPEC.
END,SHEET HANDLE
€ 5.50
11-1
4519149000019
ref: 11-1
MOLDING,SEAT
€ 31.00
11-3
451914900005H
ref: 11-3
C, HC, EC = :EXCEPT
PLATE, SEAT LOWER
€ 31.00
11-6
451914900000J
ref: 11-6
PLATE, SEAT LOWER
€ 31.00
12-2
0914805006
ref: 12-2
NUT
€ 1.50
13
0920006018
ref: 13
PIN
€ 2.00
14
0411120158
ref: 14
PIN
€ 1.50
15
0932108006
ref: 15
CUSHION
€ 3.00
16
0932110001
ref: 16
CUSHION
€ 2.50
27
455004900200J
ref: 27
COVER ASSY, SEAT TAIL
€ 164.50
28
681014986062F
ref: 28
TAPE SET
€ 0.00
29
455004900205H
ref: 29
COVER ASSY, SEAT TAIL
€ 164.50
30
6810149860998
ref: 30
TAPE SET
€ 25.00
31
4550049002019
ref: 31
COVER ASSY, SEAT TAIL
€ 164.50
32
681014986067M
ref: 32
TAPE SET
€ 0.00
33
4552249000
ref: 33
GROMMET
€ 12.00
34
4552349000
ref: 34
CLIP,SEAT TAIL COVER M
€ 3.00
35
0916906016
ref: 35
WASHER
€ 1.50
36
0831921068
ref: 36
NUT 6MM
€ 2.00
37
4521347000
ref: 37
STRIKER,SEAT LOCK
€ 7.00
38
0831011068
ref: 38
NUT
€ 2.50
39
0832121068
ref: 39
LOCK WASHER
€ 2.50
40
0832221068
ref: 40
WASHER
€ 2.00
41
0916006027
ref: 41
6.5*20*1.2
WASHER (6.5X20X1.2)
€ 2.00
42
3597049030
ref: 42
REFLEX REFLECTOR,RR
€ 27.00
43
0832221058
ref: 43
WASHER
€ 2.50
44
0831011058
ref: 44
NUT
€ 2.50
45
9570045813
ref: 45
LOCK ASSY,SEAT
€ 59.50
46
0211205128
ref: 46
SCREW
€ 2.50
47
0832121058
ref: 47
LOCK WASHER
€ 2.00
48
9572245000
ref: 48
SPRING,HELMET HOLDER
€ 8.50
49
0211205088
ref: 49
SCREW
€ 2.00
50
4155049000
ref: 50
HOLDER,TOOL
€ 27.50
51
0916906011
ref: 51
WASHER
€ 6.50
52
0831011068
ref: 52
NUT
€ 2.50
53
0946200072
ref: 53
BAND
€ 3.50
54-2
0980000192
ref: 54-2
*
TOOL SET
€ 50.00
55
9620041310
ref: 55
GAUGE ASSEMBLY,AIR PRESSURE
€ 77.50
56
4631049000
ref: 56
OPT
CARRIER
€ 54.50
57
0120408507
ref: 57
OPT
BOLT
€ 2.50
58
0832211088
ref: 58
OPT
WASHER
€ 2.00
