FRAME
GS1000H 1979 (N) GENERAL EXPORT (E01)

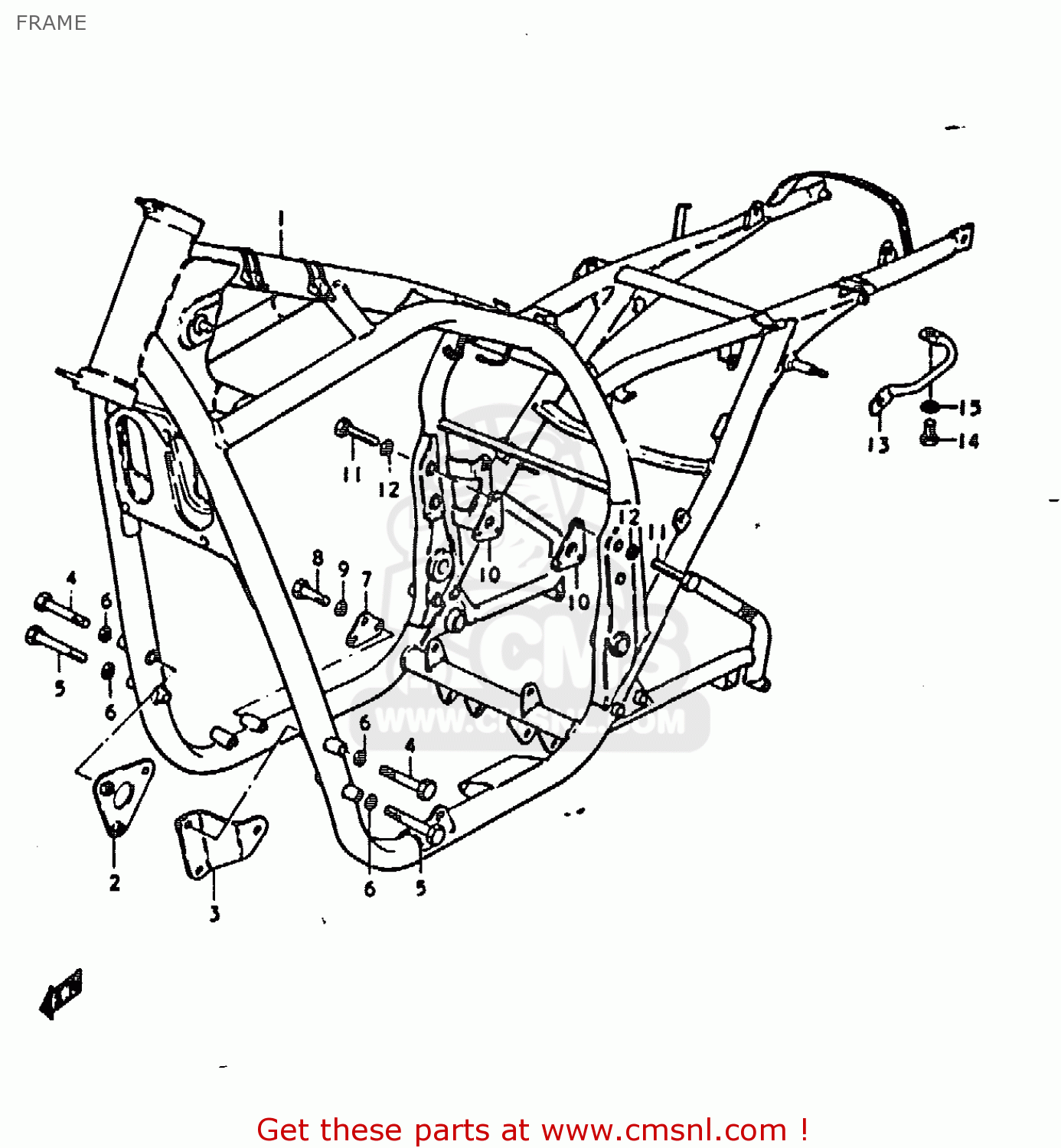

Frame diagram GS1000H 1979 (N) GENERAL EXPORT (E01)
FRAME GS1000H 1979 (N) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
4110049000019
ref: 1
FRAME
€ 0.00
2
4191049000019
ref: 2
PLATE,ENGINE MOUNTING
€ 14.50
3
4199049000019
ref: 3
PLATE,ENGINE MOUNTING
€ 18.50
4
0110708658
ref: 4
BOLT
€ 3.00
5
0110708708
ref: 5
BOLT
€ 2.50
6
0832121088
ref: 6
LOCK WASHER
€ 2.00
7
4192149000019
ref: 7
PLATE,ENGINE MOUNTING
€ 30.00
8
0110708168
ref: 8
BOLT
€ 2.00
9
0832121088
ref: 9
LOCK WASHER
€ 2.00
10
4194049000019
ref: 10
PLATE,ENGINE MOUNTING
€ 60.00
11
0110708358
ref: 11
BOLT
€ 3.50
12
0832121088
ref: 12
LOCK WASHER
€ 2.00
13
4161049000
ref: 13
GRIP,FRAME
€ 38.50
14
0110708168
ref: 14
BOLT
€ 2.00
15
0832221088
ref: 15
WASHER
€ 2.00
