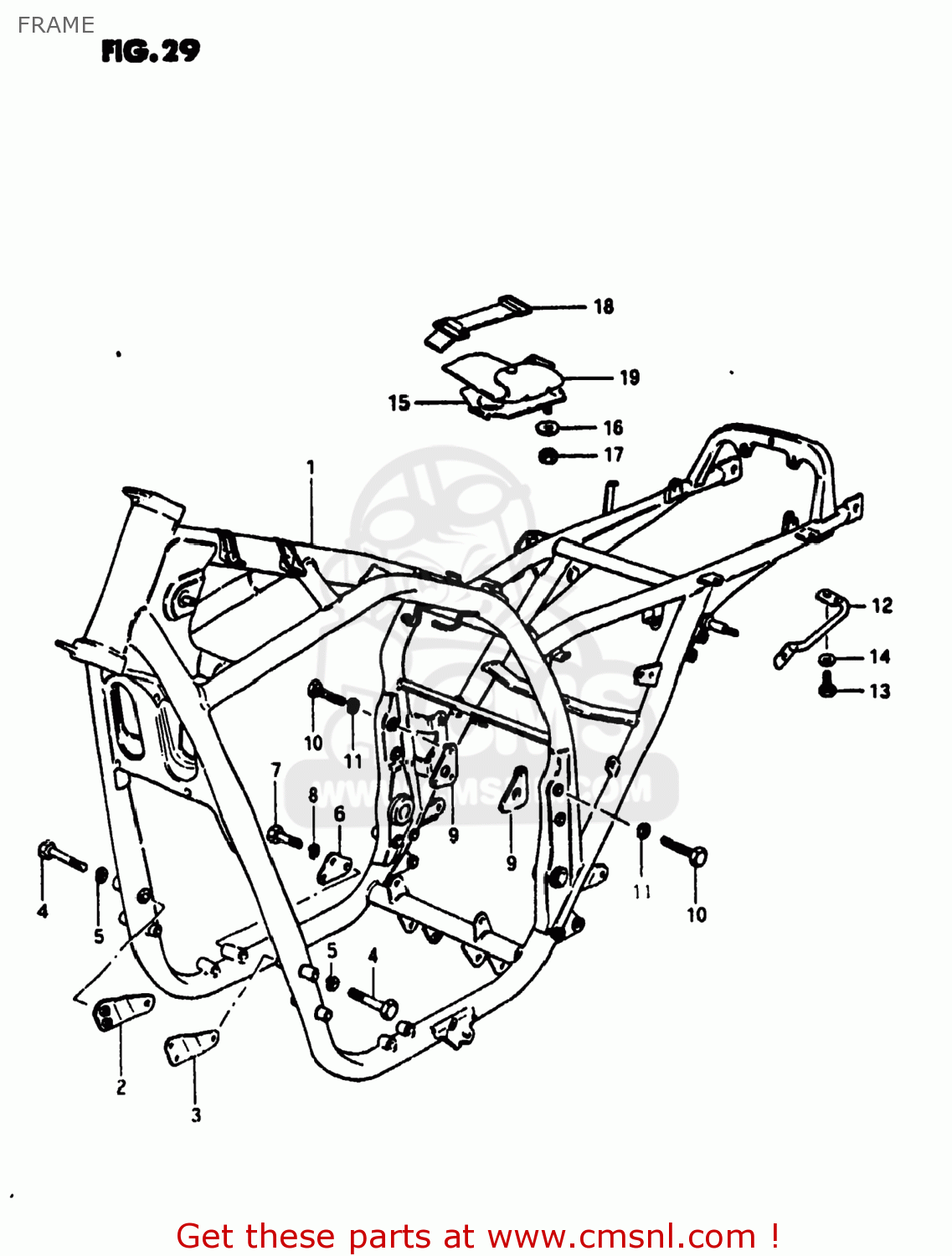

FRAME

ref

part #

description

quantity

1-1

4110049200019
ref: 1-1

FRAME (BLACK)

€ 1,638.00

1-2

4110049201019
ref: 1-2

FRAME (BLACK)

€ 0.00

2

4191049211019
ref: 2

PLATE, NO.1 RH (BLACK)

€ 13.50

3

4192049211019
ref: 3

PLATE, NO.1 LH (BLACK)

€ 0.00

4

0110708658
ref: 4
01500-0865B

BOLT

€ 3.00

5

0832121088
ref: 5
08321-01087

LOCK WASHER

€ 2.00

6

4192149000019
ref: 6
41921-49000-13L

PLATE,ENGINE MOUNTING

€ 30.00

7

0110708168
ref: 7
01500-0816B

BOLT

€ 2.00

8

0832121088
ref: 8
08321-01087

LOCK WASHER

€ 2.00

9

4194049000019
ref: 9
41940-49000-13L

PLATE,ENGINE MOUNTING

€ 60.00

10

0110708358
ref: 10
01500-0835B

BOLT

€ 3.50

11

0832121088
ref: 11
08321-01087

LOCK WASHER

€ 2.00

12-1

4161049201
ref: 12-1
41610-49202

GRIP,FRAME

€ 28.50

12-2

4161049202
ref: 12-2

GRIP,FRAME

€ 28.50

13

0110708168
ref: 13
01500-0816B

BOLT

€ 2.00

14

0832211088
ref: 14
08322-01087

WASHER

€ 2.00

15

4155049200
ref: 15
41550-49201

HOLDER,TOOL

€ 10.00

16

0916006007
ref: 16
09160-06084

WASHER

€ 2.00

17

0831011068
ref: 17
08310-00067

NUT

€ 2.50

18

0946200072
ref: 18

BAND

€ 3.50

19

0980000812
ref: 19

TOOL SET

€ 50.00
