FRONT MASTER CYLINDER

GS1100E 1981 (X) USA (E03)

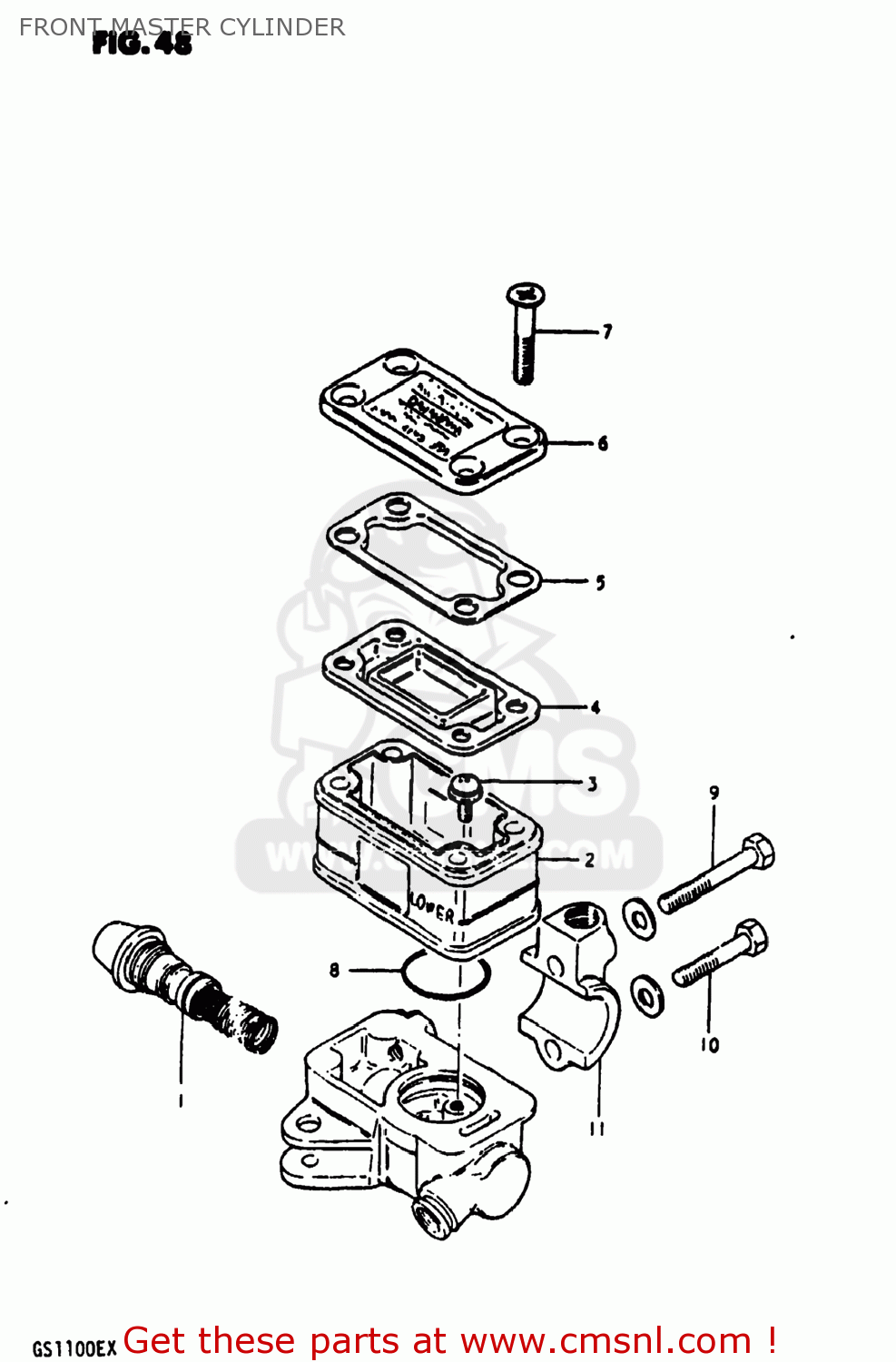

Front master cylinder diagram GS1100E 1981 (X) USA (E03)

FRONT MASTER CYLINDER GS1100E 1981 (X) USA (E03)

FRONT MASTER CYLINDER GS1100E 1981 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

0

5960049030
ref: 0
59600-49031

CYLINDER ASSEMBLY,MASTER

€ 76.50

1

5960049810
ref: 1

PISTON & CUP SET

€ 48.50

2

5968749000
ref: 2

RESERVOIR

€ 24.00

3

5968849000
ref: 3
02112-0410A

SCREW,MASTER C

€ 1.00

4

5966749000
ref: 4

DIAPHRAGM

€ 19.50

5

5966849000
ref: 5

PLATE,DIAPHRAGM

€ 7.00

6

5966949030
ref: 6

CAP

€ 22.00

7

5969149000
ref: 7

SCREW

€ 4.50

8

5968649000
ref: 8

O RING

€ 6.50

9

5969449000
ref: 9

BOLT,MASTER CYLINDER H

€ 3.00

10

5969349000
ref: 10

BOLT,MASTER CYLINDER H

€ 4.00

11

5967149000
ref: 11

HOLDER

€ 22.50
