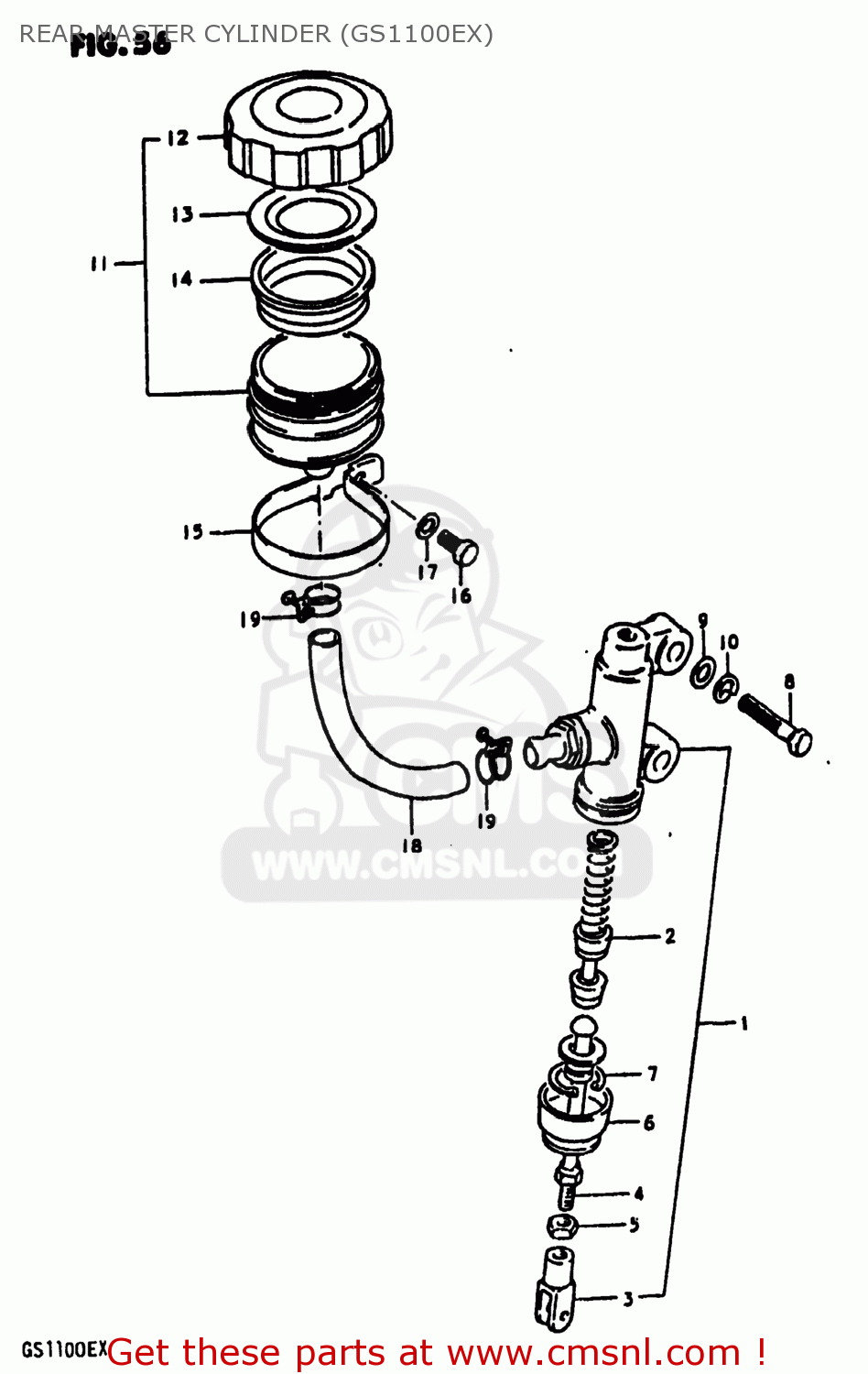

REAR MASTER CYLINDER (GS1100EX)

ref

part #

description

quantity

1

6960047001
ref: 1
69600-47011

CYLINDER ASSEMBLY,REAR MASTER

€ 182.00

2

6960045810
ref: 2
69600-45820

PISTON/CUP SET

€ 53.00

3

6969245001
ref: 3
69692-34300

YOKE

€ 11.00

4

6967045000
ref: 4
69670-45001

ROD,PUSH

€ 18.50

5

0831012088
ref: 5
08310-00087

NUT

€ 2.00

6

6969145001
ref: 6

BOOT

€ 6.50

7

5116270040
ref: 7

CIRCLIP

€ 3.00

8

0110708308
ref: 8
01500-08307

BOLT (8X30)

€ 2.50

9

0832211088
ref: 9
08322-01087

WASHER

€ 2.00

10

0832121088
ref: 10
08321-01087

LOCK WASHER

€ 2.00

11

6974047011
ref: 11
69740-470V0

TANK ASSEMBLY,RESERVOIR

€ 41.00

12

5966933603
ref: 12
59669-07D00

CAP

€ 16.50

13

5966818441
ref: 13

PLATE,DIAPHRAGM

€ 3.50

14

5966718441
ref: 14

DIAPHRAGM

€ 8.50

15

0940251601
ref: 15
09402-51602

CLAMP

€ 6.50

16

0110706168
ref: 16
01500-06167

BOLT, UPPER

€ 3.00

17

0832121068
ref: 17
08321-01067

LOCK WASHER

€ 2.50

18

6973149000
ref: 18
51241-85X50

HOSE,RESERVOIR TANK

€ 34.00

19

0940016301
ref: 19
09400-16304

CLAMP

€ 4.50
