TURN SIGNAL LAMP (GS1100ET)
GS1100E 1981 (X) USA (E03)

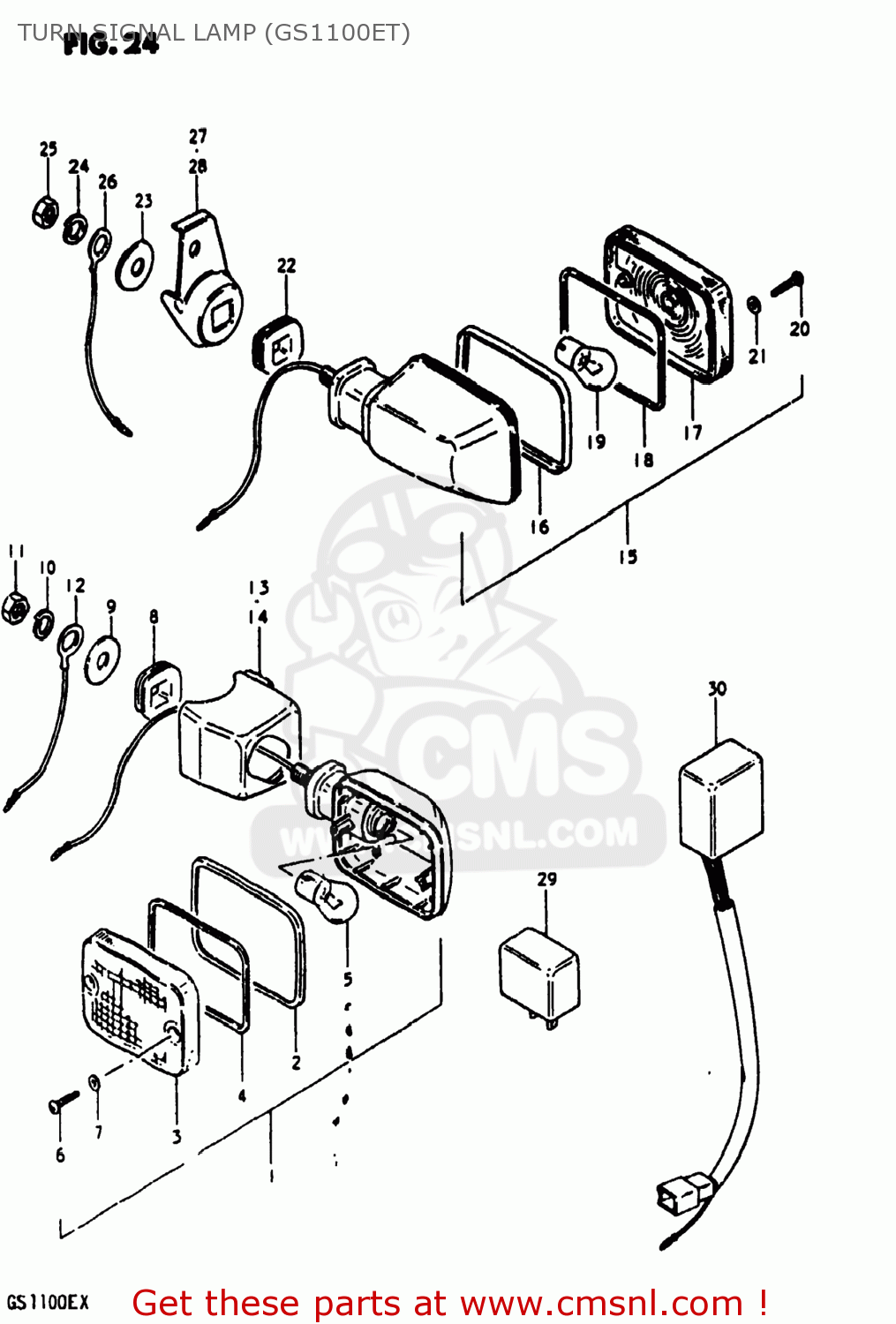

Turn signal lamp (gs1100et) diagram GS1100E 1981 (X) USA (E03)
TURN SIGNAL LAMP (GS1100ET) GS1100E 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560149230
ref: 1
35601-44124-999
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 102.00
2
3561149230
ref: 2
RIM
€ 11.00
3
3561249230
ref: 3
35612-49231
LENS
€ 13.00
4
3561349230
ref: 4
GASKET (NAS)
€ 5.00
5
0947112006
ref: 5
BULB(12V23W,STANLEY,A4577A)
€ 4.00
6
0321104208
ref: 6
03211-04207
SCREW
€ 1.50
7
3562743010
ref: 7
GASKET (NAS)
€ 2.00
8
0932015002
ref: 8
CUSHION
€ 4.50
9
0916010006
ref: 9
09160-10501
WASHER (10.5X30X2.3)
€ 2.50
10
0832121108
ref: 10
08321-01107
LOCK WASHER
€ 2.00
11
0831012108
ref: 11
08310-00107
NUT
€ 2.50
12
3685149000
ref: 12
WIRE,TURN SIGNAL LEAD
€ 9.50
13
3569749200
ref: 13
COVER,TURN SIGNAL BRACKET
€ 9.00
14
3569849200
ref: 14
COVER,TURN SIGNAL BRACKET
€ 8.50
15
3560144130
ref: 15
35601-44184-999
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 97.50
16
3561149230
ref: 16
RIM
€ 11.00
17
3561249230
ref: 17
35612-49231
LENS
€ 13.00
18
3561349230
ref: 18
GASKET (NAS)
€ 5.00
19
0947112006
ref: 19
BULB(12V23W,STANLEY,A4577A)
€ 4.00
20
0321104208
ref: 20
03211-04207
SCREW
€ 1.50
21
3562743010
ref: 21
GASKET (NAS)
€ 2.00
22
0932015002
ref: 22
CUSHION
€ 4.50
23
0916010006
ref: 23
09160-10501
WASHER (10.5X30X2.3)
€ 2.50
24
0832121108
ref: 24
08321-01107
LOCK WASHER
€ 2.00
25
0831012108
ref: 25
08310-00107
NUT
€ 2.50
26
3666033000
ref: 26
LEAD WIRE,EARTH
€ 5.00
27
3562049200
ref: 27
35621-49200
BRACKET,REAR TURN SIGNAL
€ 7.00
28
3564049200
ref: 28
35641-49200
BRACKET,REAR TURN SIGNAL
€ 7.50
29
3861049230
ref: 29
38610-49231
RELAY,TURN SIGNAL
€ 71.00
30
3883049200
ref: 30
38830-49X00
UNIT,TURN SIGNAL CONTROL
€ 269.50
