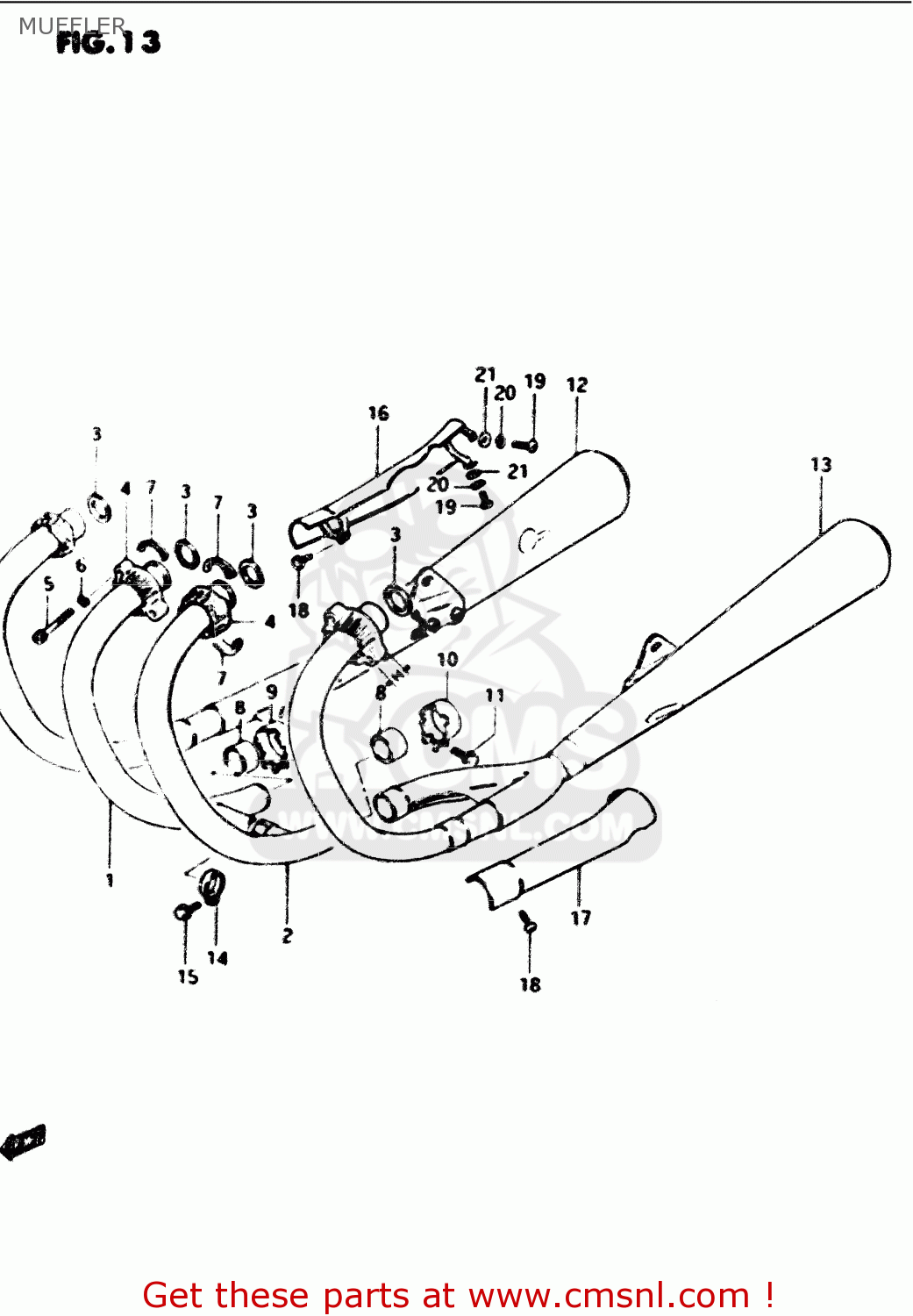

MUFFLER

ref

part #

description

quantity

1

1417049400H01
ref: 1

PIPE,EXHAUST,CENTER,RIGHT

€ 109.00

2

1418049400H01
ref: 2

PIPE,EXHAUST,CENTER,LEFT

€ 123.00

3

1418111020
ref: 3

GASKET,EXHAUST PIPE (NAS)

€ 8.00

4

1418249011
ref: 4

CLAMP(H:21)

€ 49.00

5

0711008408
ref: 5

BOLT

€ 3.50

6

0832121088
ref: 6

LOCK WASHER

€ 2.00

7

1415549000A
ref: 7

PLATE,EXHAUST P

€ 9.50

8

1477149001
ref: 8

CONNECTOR,MUFFLER

€ 26.00

9

1445949000
ref: 9

CLAMP,MUFFLER CONNECTOR,R

€ 25.50

10

1446949000
ref: 10

CLAMP,MUFFLER CONNECTOR,L

€ 25.50

11

0151708258
ref: 11

BOLT

€ 2.50

12-1

1430149403
ref: 12-1

MUFFLER, RH (H:21)

€ 499.50

12-2

1430149412
ref: 12-2
E22

MUFFLER, RH

€ 309.00

13-1

1430249403
ref: 13-1

MUFFLER, LH (H:21)

€ 322.50

13-2

1430249412
ref: 13-2
E22

MUFFLER, LH

€ 309.00

14

0940237601
ref: 14

CLAMP

€ 5.50

15

0151706258
ref: 15

BOLT

€ 2.50

16

1478049400
ref: 16

COVER,MUFFLER,RIGHT

€ 44.00

17

1479049400
ref: 17

COVER,MUFFLER,LEFT

€ 31.50

18

0211205168
ref: 18

SCREW

€ 2.50

19

0211206108
ref: 19

SCREW

€ 1.50

20

0832121067
ref: 20

WASHER,LOCK

€ 2.50

21

0832221067
ref: 21

WASHER

€ 2.00

all assemblies
