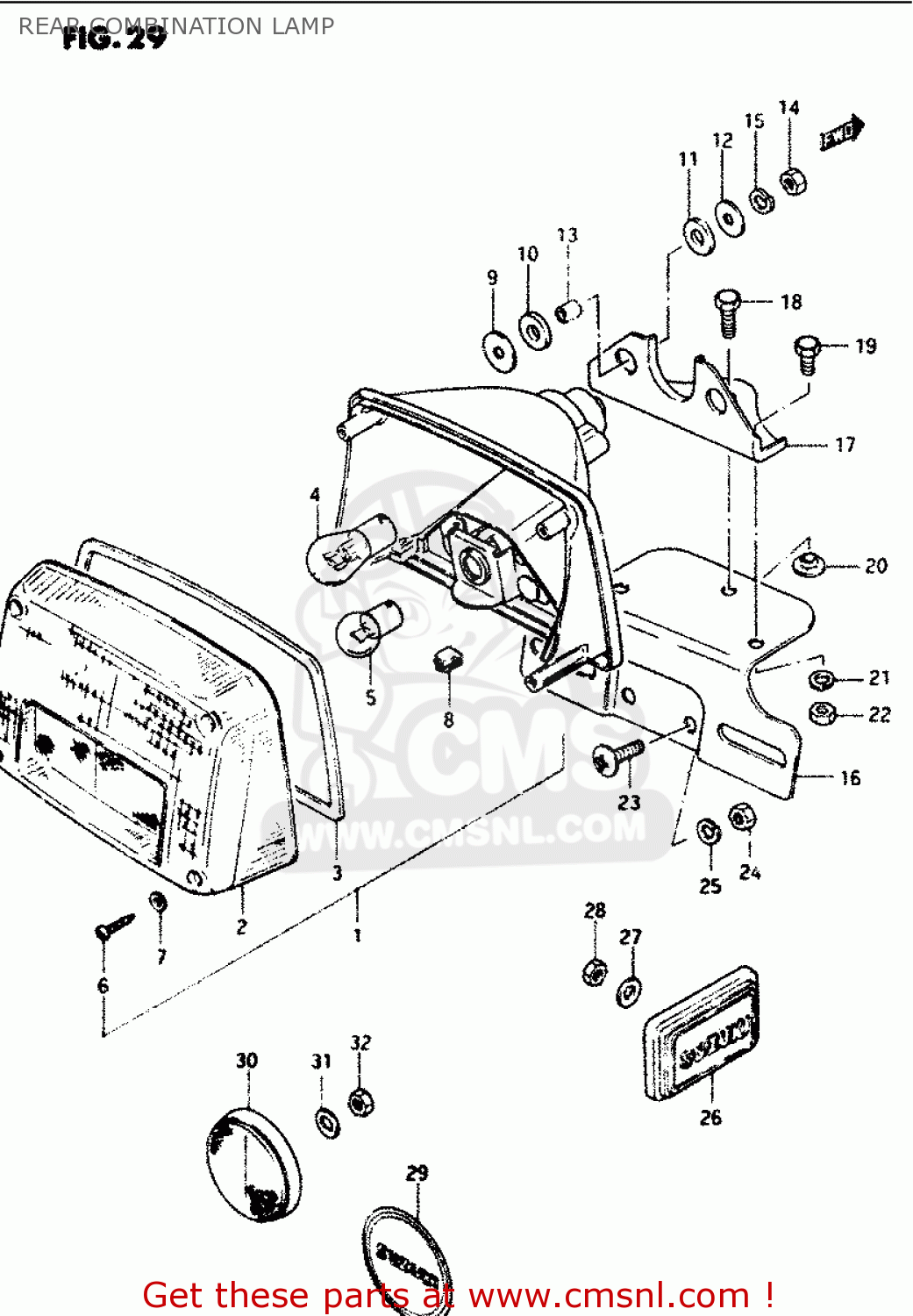

REAR COMBINATION LAMP

ref

part #

description

quantity

1-1

3571049030
ref: 1-1
E1,E6,E24

LAMP ASSEMBLY,REAR COMBINATION

€ 245.00

1-2

3571049083
ref: 1-2
MODEL E E2

LAMP ASSY, REAR COMBINATION

€ 178.00

1-3

3571049052
ref: 1-3
MODEL G E2

LAMP ASSY, REAR COMBINATION

€ 178.00

1-4

3571049083
ref: 1-4
E4,E16,E18 F.NO~1016

LAMP ASSY, REAR COMBINATION

€ 178.00

1-5

3571049024
ref: 1-5
E4,E16 F.NO.101620~

LAMP ASSY, REAR COMBINATION

€ 178.00

1-6

3571049051
ref: 1-6
MODEL E/F E15,E26

LAMP ASSY, REAR COMBINATION

€ 0.00

1-7

3571049052
ref: 1-7
MODEL G E15

LAMP ASSY, REAR COMBINATION

€ 178.00

1-8

3571049071
ref: 1-8
MODEL E/F E17

LAMP ASSY, REAR COMBINATION

€ 153.00

1-9

3571049052
ref: 1-9
MODEL G E17

LAMP ASSY, REAR COMBINATION

€ 178.00

1-10

3571049091999
ref: 1-10
E22

LAMP ASSY, REAR COMBINATION

€ 178.00

2-1

3571249031
ref: 2-1
E1,E6,E24

LENS

€ 43.50

2-2

3571249084
ref: 2-2
E2,E4,E15,E16,E18,E2

LENS,RR COMBI

€ 43.50

2-3

3571231321
ref: 2-3
E2,E4,E15,E16,F.NO.1

LENS

€ 53.50

2-4

3571249071
ref: 2-4
MODEL E/F E17

LENS

€ 44.00

2-5

3571231321
ref: 2-5
MODEL G E17

LENS

€ 53.50

2-6

3571249091
ref: 2-6
E22

LENS

€ 37.50

3

3571349030
ref: 3

GASKET (NAS)

€ 12.50

4-1

0947112035
ref: 4-1
E1,E6,E24

BULB(12V23W)

€ 5.50

4-2

0947112046
ref: 4-2
E2,E4,E15,E16,E17,E1

BULB(12V21/5W)

€ 1.50

5-1

0947112037
ref: 5-1
E1,E6,E24

BULB

€ 7.00

5-2

0947112059
ref: 5-2
E2,E4,E15,E16,E17,E1

BULB

€ 4.00

6

3562749030
ref: 6

SCREW,REAR COMBINATION LAMP

€ 1.50

7

3562743010
ref: 7

GASKET (NAS)

€ 2.00

8

3572846630
ref: 8
E22

GROMMET

€ 0.00

9

0916006057
ref: 9

WASHER

€ 2.00

10

0932009004
ref: 10

CUSHION

€ 2.50

11

0932009003
ref: 11

CUSHION

€ 2.00

12

0916006012
ref: 12

WASHER(6,5X22X1.6)

€ 2.00

13

0918006038
ref: 13

SPACER(6.1X9X7.5)

€ 2.00

14

0831011066
ref: 14

NUT

€ 2.00

15

0832121066
ref: 15

WASHER,LOCK

€ 2.00

16

3592749091
ref: 16

BRACKET, LICENCE PLATE

€ 13.00

17

3572645100
ref: 17

BRACKET,REAR COMBINATION LAMP

€ 0.00

18

0110706166
ref: 18

BOLT

€ 2.00

19

0110706126
ref: 19

BOLT

€ 2.00

20

0916906016
ref: 20

WASHER

€ 1.50

21

0832121066
ref: 21

WASHER,LOCK

€ 2.00

22

0831011066
ref: 22

NUT

€ 2.00

23

0214206165
ref: 23

SCREW

€ 2.50

24

0831011066
ref: 24

NUT

€ 2.00

25

0832121066
ref: 25

WASHER,LOCK

€ 2.00

26

3599245110
ref: 26

EMBLEM, REAR SIDE

€ 10.50

27

0832221056
ref: 27

WASHER

€ 2.50

28

0831011056
ref: 28

NUT

€ 2.50

29

3599545110
ref: 29
E15,E16,E18,E24,E26

EMBLEM, REAR

€ 0.00

30-1

3597030910
ref: 30-1
MODEL E E17,E22

REFLEX REFLECTOR,RR

€ 47.50

30-2

3597014A10
ref: 30-2
MODEL F E17

REFLEX REFLECTOR,RR

€ 12.00

31

0832221056
ref: 31
E17,E22

WASHER

€ 2.50

32

0831011056
ref: 32
E17,E22

NUT

€ 2.50

all assemblies
