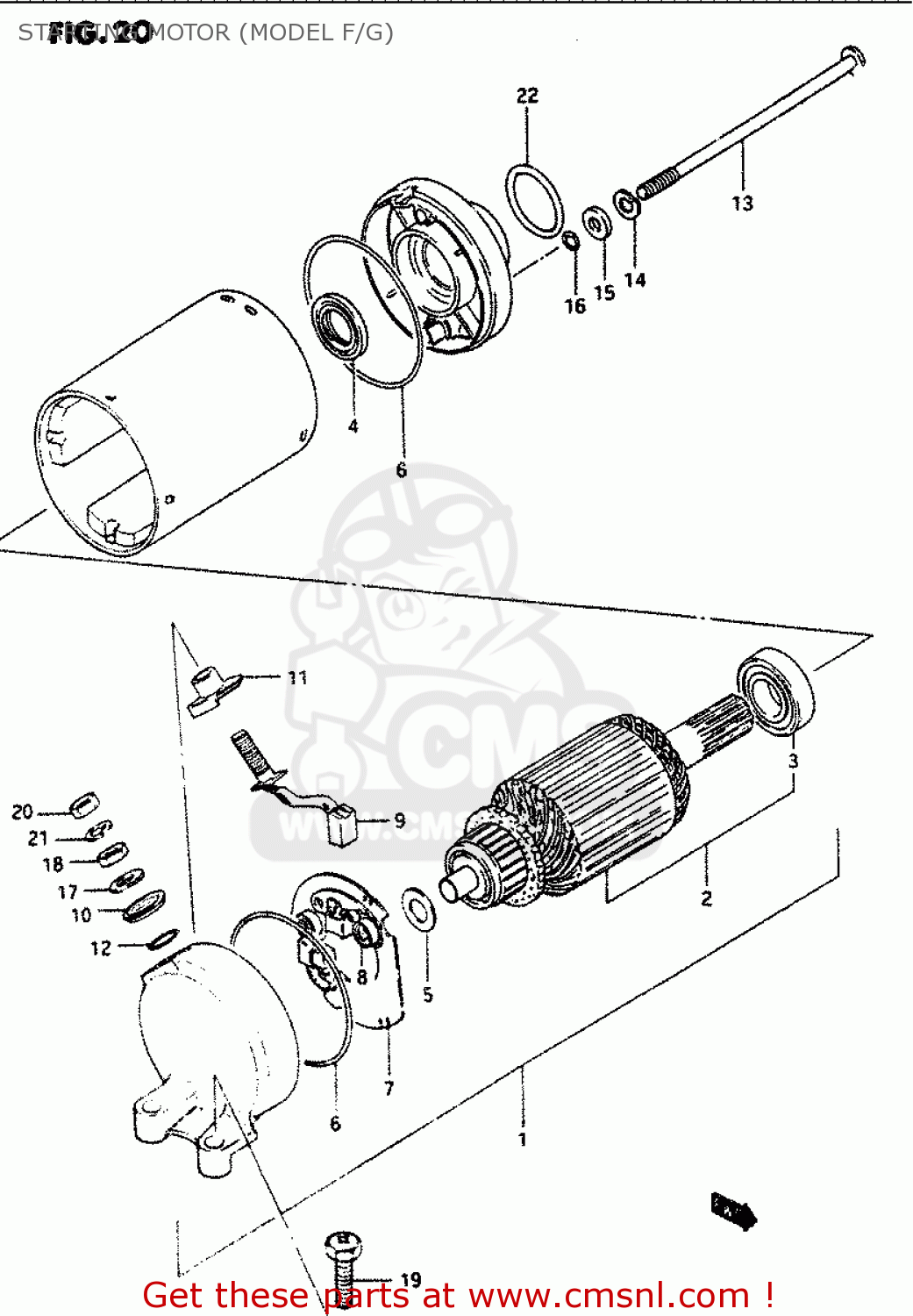

STARTING MOTOR (MODEL F/G)

ref

part #

description

quantity

1

3110000A00
ref: 1

MOTOR ASSEMBLY,STARTING

€ 766.50

2

3131000A00
ref: 2

ARMATURE

€ 221.00

3

3115545010
ref: 3

BEARING

€ 21.00

4

3115349210
ref: 4

SEAL,OIL

€ 16.50

5

3136147010
ref: 5

SHIM,ARMATURE

€ 4.00

6

3126444110
ref: 6

O RING

€ 8.50

7

3113244110
ref: 7

HOLDER,BRUSH

€ 51.00

8

3113565010
ref: 8

SPRING

€ 3.50

9

3113038300
ref: 9

BRUSH SUB ASSY,STARTING MOTOR

€ 14.00

10

3117238300
ref: 10

BUSHING

€ 4.50

11

3117138300
ref: 11

BUSH,B

€ 6.50

12

3114338300
ref: 12

O RING

€ 4.00

13

3128105300
ref: 13

BOLT

€ 9.50

14

0832121057
ref: 14

LOCK WASHER

€ 2.00

15

3116138300
ref: 15

WASHER

€ 2.50

16

3115638300
ref: 16

O RING

€ 3.50

17

0832221067
ref: 17

WASHER

€ 2.50

18

0831022068
ref: 18

NUT 6MM

€ 2.50

19

0912806024
ref: 19

SCREW (6X25)

€ 3.00

20

0831011066
ref: 20

NUT

€ 2.50

21

0832121066
ref: 21

WASHER,LOCK

€ 2.50

22

0928024003
ref: 22

O RING(D:3,ID:24.5)

€ 2.00
