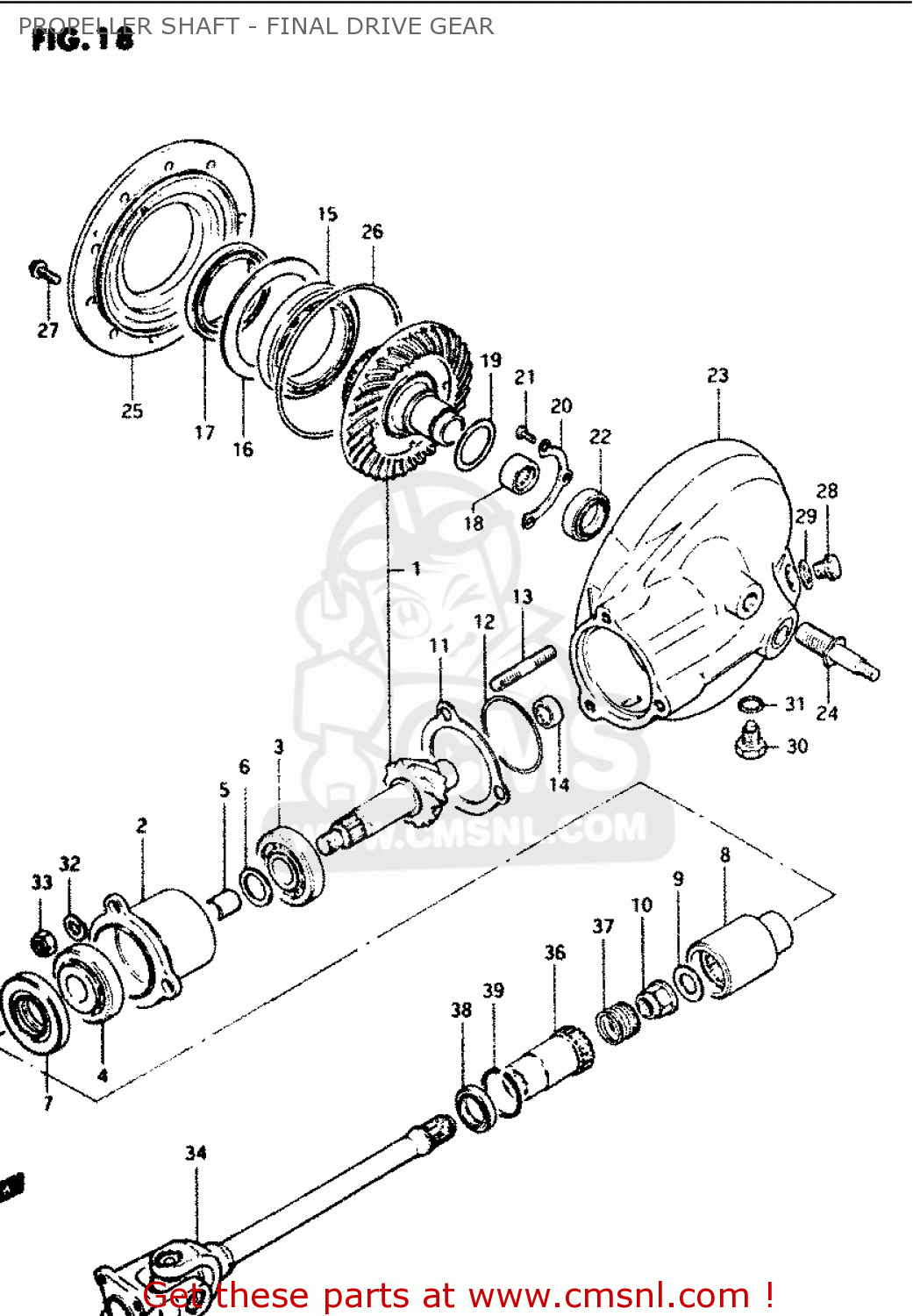

PROPELLER SHAFT - FINAL DRIVE GEAR - GS1100G 1984 (E) GENERAL EXPORT (E01)

ref

part #

description

quantity

0

2730049820
ref: 0

GEAR/CASE SET,FINAL BEVEL

€ 856.50

1

2730049810
ref: 1
NT:11/32

GEAR SET,FINAL BEVEL

€ 78.50

2

2744145100
ref: 2

HOUSING,DRIVE GEAR

€ 19.00

3

0926525013
ref: 3

BEARING(25X52X19.25)

€ 48.50

4

0926525014
ref: 4

BEARING

€ 44.00

5

0918025057
ref: 5

SPACER (25.2X30X3.5)

€ 4.00

6-1

0918125006
ref: 6-1

SHIM (25X30X1.6)

€ 3.00

6-2

0918125007
ref: 6-2

SHIM (25X30X1.62)

€ 3.00

6-3

0918125008
ref: 6-3

SHIM (25X30X1.64)

€ 3.00

6-4

0918125009
ref: 6-4

SHIM (25X30X1.66)

€ 3.00

6-5

0918125010
ref: 6-5

SHIM (25X30X1.68)

€ 3.00

6-6

0918125011
ref: 6-6

SHIM (25X30X1.7)

€ 3.00

6-7

0918125012
ref: 6-7

SHIM (25X30X1.8)

€ 3.00

6-8

0918125013
ref: 6-8

SHIM (25X30X1.9)

€ 3.00

6-9

0918125014
ref: 6-9

SHIM (25X30X2

€ 3.00

7

0928332017
ref: 7

SEAL,OIL(32X54X7)

€ 16.50

8

2717245100
ref: 8

GEAR,FINAL DRIVE

€ 47.00

9

0916014021
ref: 9

WASHER(14X29X4)

€ 5.00

10

0915914010
ref: 10

NUT

€ 11.00

11-1

2744545100
ref: 11-1

SHIM,DRIVE GEAR HOUSING

€ 4.00

11-2

2744545102
ref: 11-2

SHIM,DRIVE GEAR HOUSING

€ 4.50

11-3

2744545101
ref: 11-3

SHIM,DRIVE GEAR HOUSING

€ 5.50

11-4

2744545103
ref: 11-4

SHIM,DRIVE GEAR HOUSING

€ 5.50

12

0928063004
ref: 12

O RING(D:2.4,ID:62.6)

€ 9.50

13

0142110308
ref: 13

STUD 10X30

€ 2.50

14

0926324012
ref: 14

BEARING(24X33X17)

€ 40.50

15

0926270001
ref: 15

BEARING(70X110X13)

€ 78.50

16-1

2732745100
ref: 16-1

SHIM,DRIVEN GEAR BEARING

€ 2.50

16-2

2732745102
ref: 16-2

SHIM,DRIVEN GEAR BEARING

€ 2.50

16-3

2732745103
ref: 16-3

SHIM,DRIVEN GEAR BEARING

€ 2.50

16-4

2732745104
ref: 16-4

SHIM,DRIVEN GEAR BEARING

€ 3.00

17

0928970001
ref: 17

SEAL,OIL(70X96X16)

€ 41.50

18

0926335004
ref: 18

BEARING(35X48X23.7)

€ 58.00

19-1

2732645104
ref: 19-1

SHIM,FINAL DRIVEN GEAR

€ 2.50

19-2

2732645100
ref: 19-2

SHIM,FINAL DRIVEN GEAR

€ 2.50

19-3

2732645101
ref: 19-3

SHIM,FINAL DRIVEN GEAR

€ 2.50

19-4

2732645103
ref: 19-4

SHIM,FINAL DRIVEN GEAR

€ 3.00

19-5

2732645102
ref: 19-5

SHIM,FINAL DRIVEN GEAR

€ 2.50

20

2732945100
ref: 20

RETAINER,FINAL DRIVEN GEAR BRG

€ 5.00

21

0211206128
ref: 21

SCREW 6X12

€ 2.00

22

0928330028
ref: 22

SEAL,OIL(30X42X7)

€ 7.50

23

2745045102
ref: 23

CASE ASSEMBLY,FINAL GEAR

€ 167.50

24

0910810025
ref: 24

STUD

€ 16.00

25

2746045103
ref: 25
FROM 27460-45101

CASE,FINAL GEAR BEARING

€ 115.00

26

0928000014
ref: 26

O-RING (D:3.1 ID:144.4)

€ 9.50

27

0151708258
ref: 27

BOLT

€ 2.50

28

0924714012
ref: 28

PLUG (14X12)

€ 3.50

29

0916814004
ref: 29

GASKET(14X19.2X2) (NAS)

€ 2.50

30

0924714019
ref: 30

PLUG

€ 5.50

31

0916814004
ref: 31

GASKET(14X19.2X2) (NAS)

€ 2.50

32

0832131108
ref: 32

LOCK WASHER

€ 2.00

33

0915910027
ref: 33

NUT

€ 3.00

34

2710049110
ref: 34

SHAFT ASSEMBLY,PROPELLER

€ 291.00

35

0910308050
ref: 35

BOLT(8X17)

€ 5.50

36

2717145101
ref: 36

COUPLING,PROPELLER SHAFT

€ 38.00

37

0944027005
ref: 37

SPRING

€ 3.50

38

0928330026
ref: 38

SEAL,OIL(30X40.5X5.5)

€ 9.00

39

0938140003
ref: 39

CIRCLIP

€ 5.00

PROPELLER SHAFT - FINAL DRIVE GEAR
