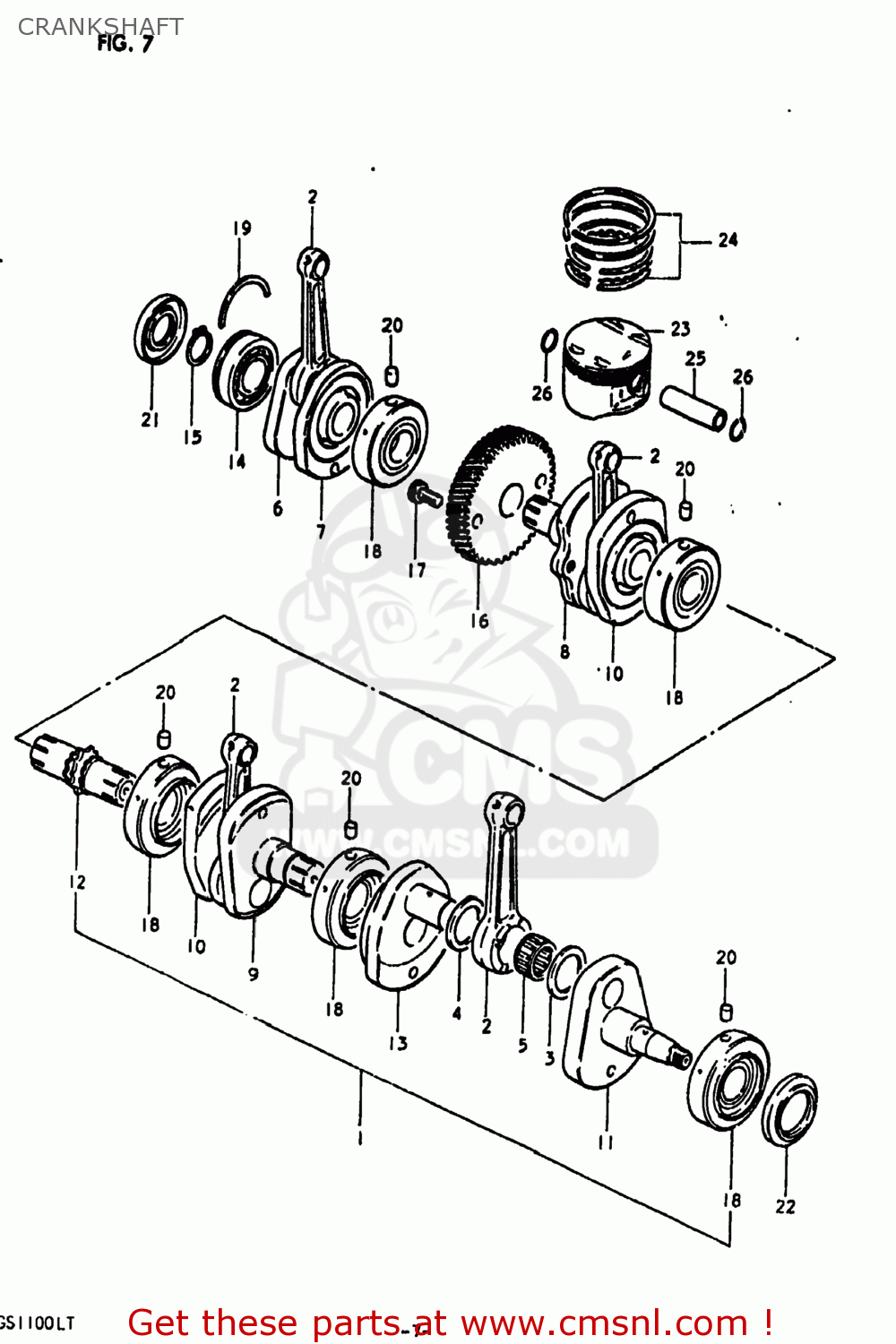

CRANKSHAFT

ref

part #

description

quantity

1

1220049201
ref: 1
12200-49308

CRANKSHAFT ASSEMBLY

€ 3,492.00

2

1216149201
ref: 2
12161-49302

CONNECTING ROD

€ 184.50

3

0916031002
ref: 3

WASHER(31X48.5X1)

€ 7.00

4

0916031003
ref: 4

WASHER(31X48.5X2)

€ 11.50

5

0926331004
ref: 5

BEARING(31X39X21)

€ 53.00

6

1222049202
ref: 6

CRANKSHAFT,RIGHT

€ 153.00

7

1223049201
ref: 7
12230-49202

WEB,CRANK

€ 218.00

8

1224149202
ref: 8
12241-49203

CRANKSHAFT

€ 153.00

9

1227149202
ref: 9
12271-49203

CRANKSHAFT,MIDDLE,LEFT

€ 89.50

10

1225049201
ref: 10
12250-49202

WEB,CRANK,MIDDLE

€ 153.00

11

1226149203
ref: 11
12261-49302

CRANKSHAFT,LEFT

€ 216.00

12

1228149200
ref: 12

SHAFT,TIMING CHAIN DRIVE

€ 93.50

12

1228149200
ref: 12

SHAFT,TIMING CHAIN DRIVE

€ 93.50

13

1229049201
ref: 13
12290-49202

WEB,CRANK,LEFT

€ 228.50

14

0926230033
ref: 14

BEARING(30X72X19)

€ 47.00

15

0833111308
ref: 15
08331-3130A

CIRCLIP,30MM

€ 3.00

16

2111149002
ref: 16
21111-49004

GEAR,PRIMARY DRIVE

€ 56.50

17

0910608006
ref: 17
07130-0816A

BOLT

€ 3.00

18

0926432003
ref: 18
09264-32009

BEARING

€ 138.00

19

0939072004
ref: 19

C RING

€ 3.00

20

0422107129
ref: 20

PIN

€ 1.50

21

0928330021
ref: 21

SEAL,OIL(30X72X11)

€ 22.00

22

0928948002
ref: 22

SEAL,OIL(47.3X60X6.5)

€ 12.00

23-1

1211149201
ref: 23-1
12111-49222

PISTON

€ 1,114.50

23-2

1211149201050
ref: 23-2
12100-49221-050

PISTON

€ 640.00

23-3

1211149201100
ref: 23-3
12100-49221-100

PISTON

€ 104.00

24-1

1214049220
ref: 24-1
12140-49270

RING SET,PISTON

€ 67.00

24-2

1214049220050
ref: 24-2
12140-49270-050

RING SET,PISTON (OS:0.5)

€ 59.00

24-3

1214049220100
ref: 24-3
12140-49221-100

RING SET,PISTON (OS:1.0)

€ 38.50

25

1215149202
ref: 25
12151-15501

PIN,PISTON

€ 15.00

26

0938118002
ref: 26

CIRCLIP

€ 1.50

all assemblies
