REAR SWINGING ARM
GS1100LT 1980 (T) USA (E03)

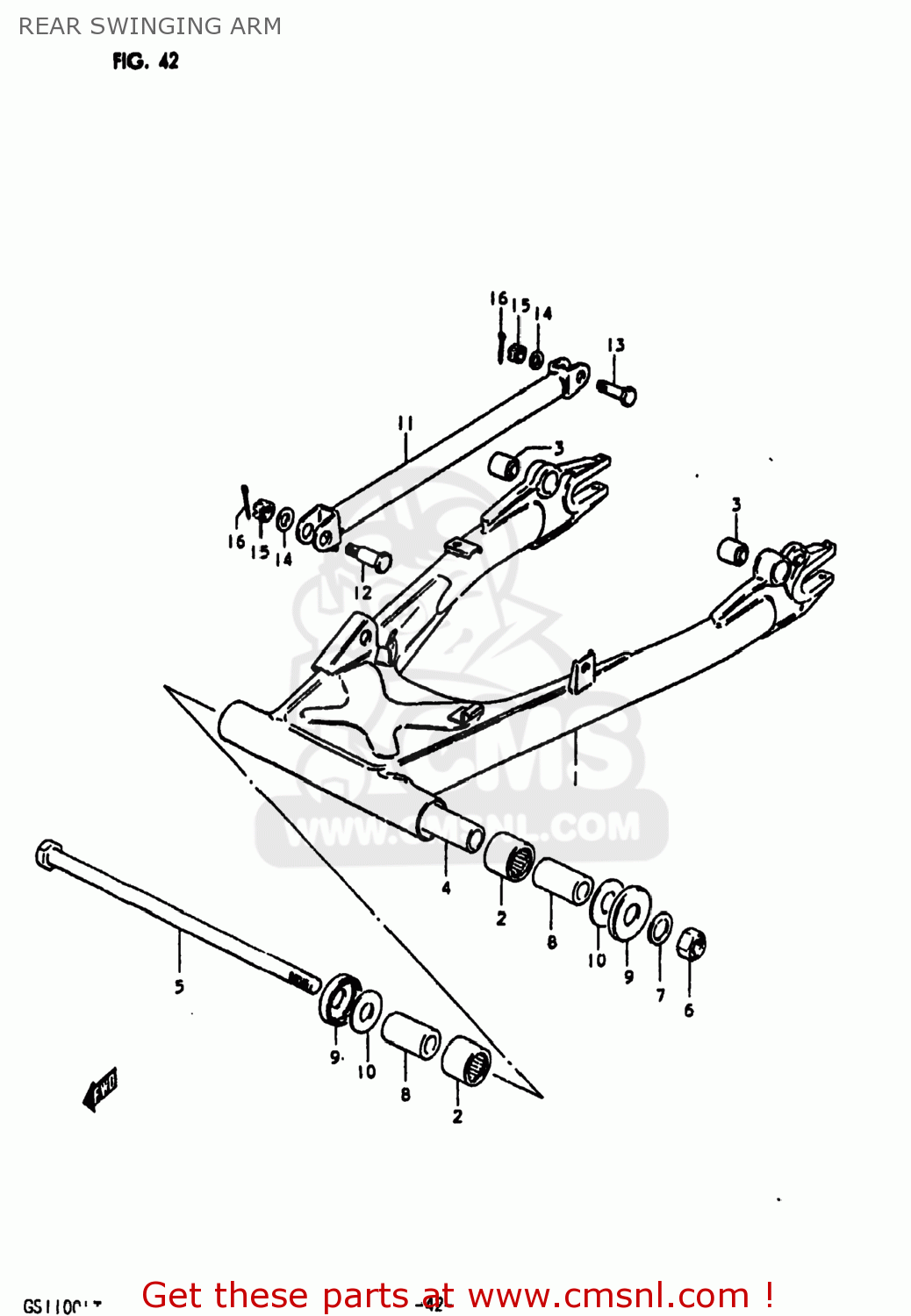

Rear swinging arm diagram GS1100LT 1980 (T) USA (E03)
REAR SWINGING ARM GS1100LT 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6110049830019
ref: 1
61100-49831-019
SWING ARM ASSEMBLY,REAR
€ 111.00
2
0926325024
ref: 2
BEARING(25X33X30)
€ 31.50
3
0931910008
ref: 3
BUSH
€ 8.00
4
6128249000
ref: 4
SPACER,RR SWGARM PIVOT CTR
€ 24.00
5
6121149000
ref: 5
61211-49301
SHAFT,REAR SWING ARM
€ 45.00
6
0831921168
ref: 6
08319-2116A
NUT 16MM
€ 5.00
7
0832211168
ref: 7
08322-01167
WASHER
€ 2.00
8
6125149000
ref: 8
SPACER,RR SWGARM PIVOT
€ 17.50
9
6126249001
ref: 9
61262-49000
COVER,REAR SWING ARM DUST
€ 17.50
10
0821116381
ref: 10
WASHER
€ 2.50
11
6431049100019
ref: 11
LINK,REAR TORQUE
€ 0.00
12
0911110011
ref: 12
09111-10022-XC0
BOLT
€ 8.00
13
0910110017
ref: 13
BOLT(10X39)
€ 5.00
14
0832211108
ref: 14
08322-01107
WASHER
€ 2.50
15
0831441108
ref: 15
08314-4010B
NUT
€ 2.50
16
0411120208
ref: 16
04111-2020A
PIN 20X20
€ 1.50
