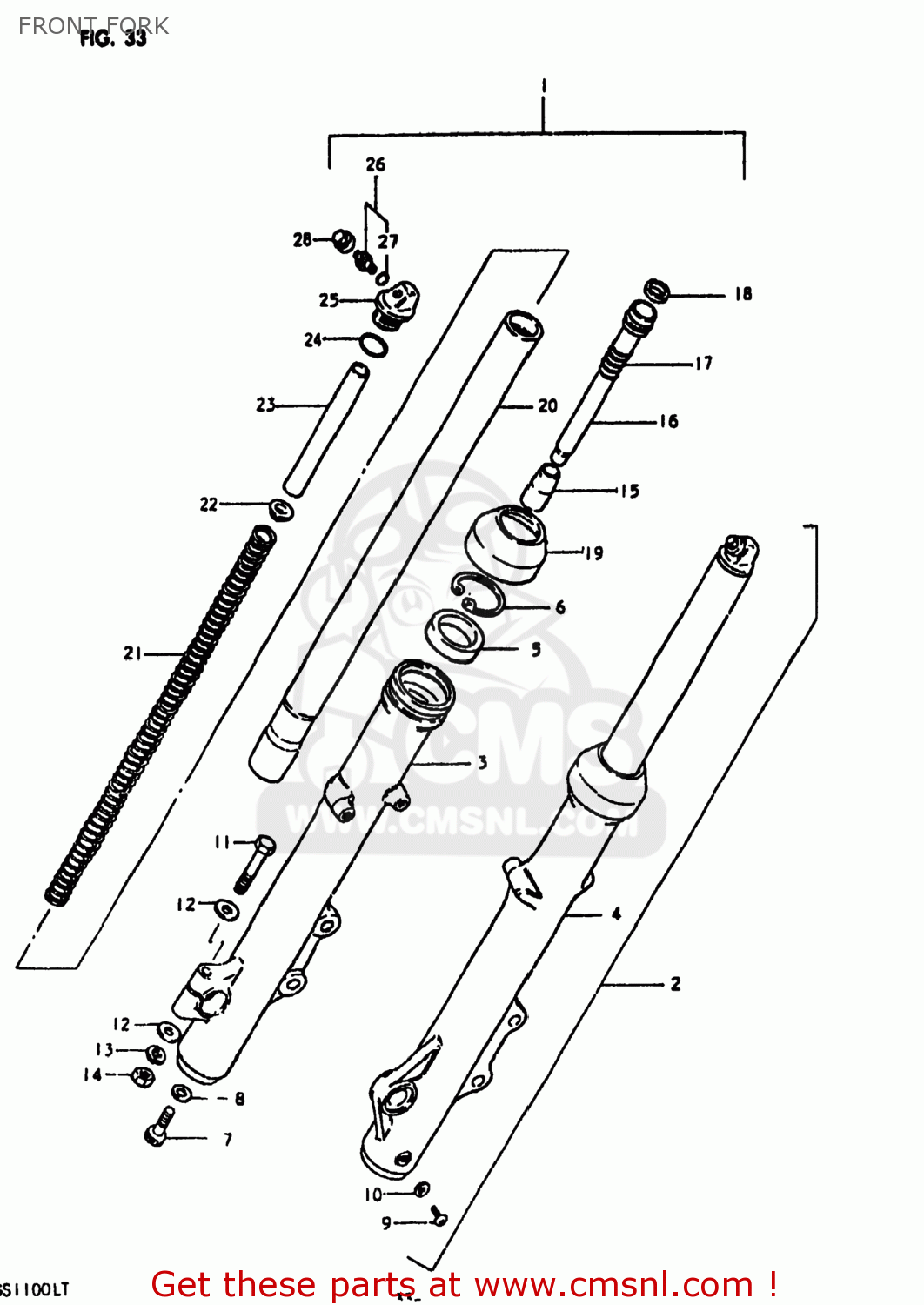

FRONT FORK

ref

part #

description

quantity

1

5110349130
ref: 1

DAMPER ASSEMBLY,RIGHT

€ 340.00

2

5110049850
ref: 2

DAMPER SET

€ 277.00

3

5113049130
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 130.00

4

5114049130
ref: 4

TUBE,OUTER,LEFT

€ 193.50

5

5115349000
ref: 5
51153-08C20

OIL SEAL,FRONT FORK

€ 16.50

6

5115640301
ref: 6

RING,STOPPER

€ 4.50

7

5114716510
ref: 7

BOLT,FORK CYLINDER(10X25)

€ 3.50

8

5114841310
ref: 8

GASKET (NAS)

€ 2.50

9

0211204088
ref: 9
02112-04087

SCREW

€ 1.50

10

5118303010
ref: 10

GASKET,DRAIN,PLUG (NAS)

€ 3.00

11

0110708508
ref: 11
01500-08507

BOLT 8X50

€ 3.00

12

0832221088
ref: 12
08322-01087

WASHER

€ 2.00

13

0832131088
ref: 13
08321-01087

WASHER,LOCK,8.

€ 2.00

14

0831012088
ref: 14
08310-00087

NUT

€ 2.00

15

5119549071
ref: 15

PIECE,OIL LOCK

€ 12.00

16

5114649100
ref: 16

CYLINDER,FRONT FORK

€ 78.50

17

5117749000
ref: 17

SPRING,REBOUND

€ 7.50

18

5119649000
ref: 18

RING,PISTON

€ 9.00

19

5117349002
ref: 19

SEAL,DUST

€ 13.00

20

5111049130
ref: 20
51110-49270

TUBE,FORK,INNER

€ 356.00

21

5117149100
ref: 21

SPRING,FRONT FORK

€ 38.50

22

5117238010
ref: 22

GUIDE,FRONT FORK SPRING C

€ 9.50

23

5117638010
ref: 23

COLLAR,SPRING

€ 0.00

24

5111716310
ref: 24

O RING

€ 4.50

25

5135141211
ref: 25

CAP

€ 41.00

26

5129349001
ref: 26

VALVE

€ 18.00

27

5111741211
ref: 27

O RING

€ 6.50

28

5129449000
ref: 28

CAP,VALVE

€ 22.50

all assemblies
