CARBURETOR
GS250T 1980 (T) USA (E03)

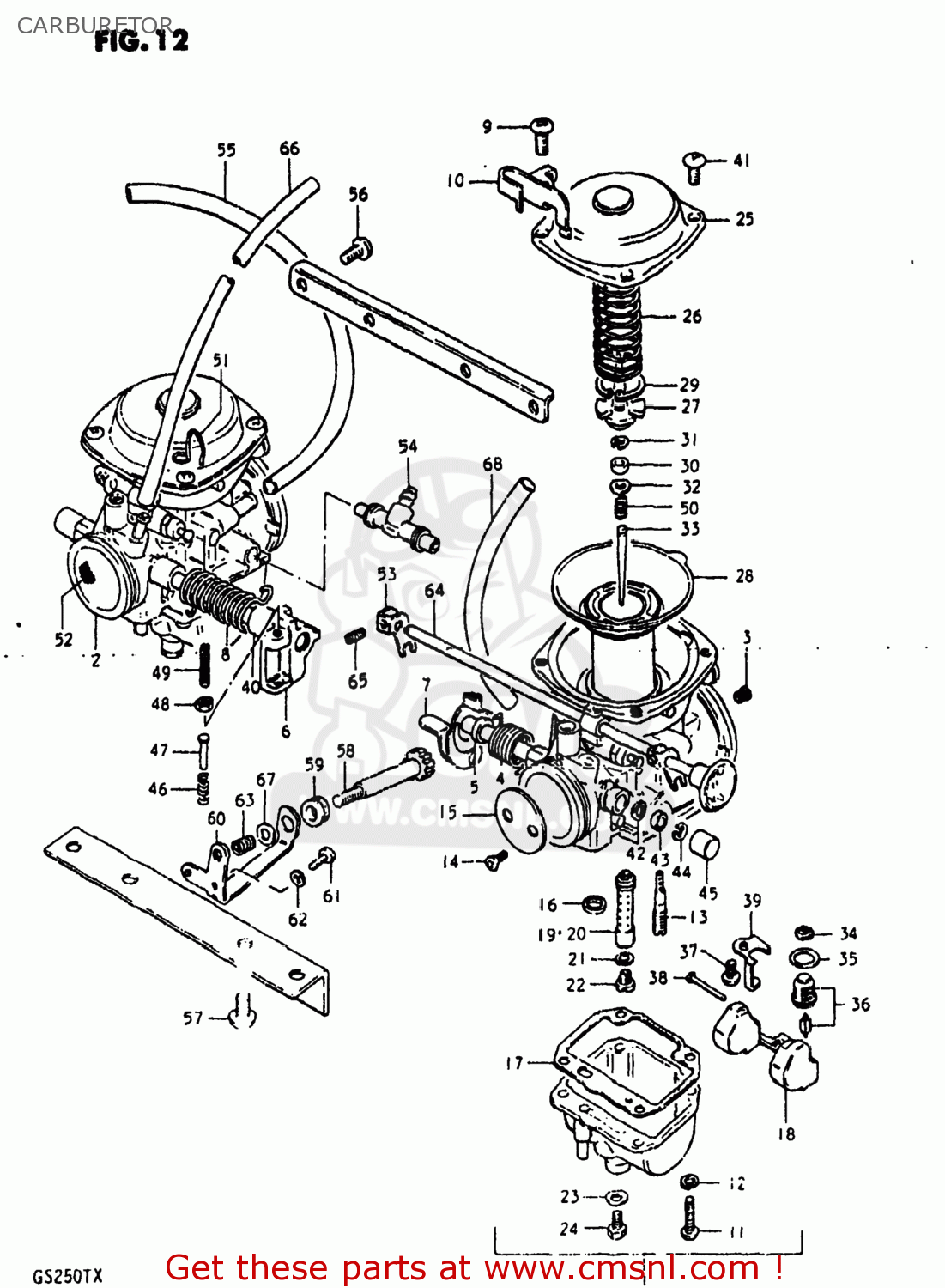

Carburetor diagram GS250T 1980 (T) USA (E03)
CARBURETOR GS250T 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
1320011420
ref: 0
CARBURETOR ASSEMBLY
€ 246.50
1
1320111420
ref: 1
CARBURETOR ASSEMBLY
€ 202.50
2
1320211420
ref: 2
CARBURETOR ASSEMBLY,LEFT (BS
€ 195.50
3
0949127008
ref: 3
JET,MAIN(135)
€ 11.50
4
1357311400
ref: 4
SPRING
€ 0.00
5
1357445110
ref: 5
RING
€ 3.50
6
1355011420
ref: 6
SHAFT ASSEMBLY
€ 30.00
7
1355011430
ref: 7
SHAFT ASSEMBLY
€ 33.50
8
1357311410
ref: 8
SPRING
€ 0.00
9
0211205128
ref: 9
02112-05127
SCREW
€ 2.50
10
1362711400
ref: 10
BRACKET
€ 0.00
11
0211104188
ref: 11
02112-0420A
SCREW
€ 1.00
12
0832121048
ref: 12
08321-0104A
LOCK WASHER
€ 2.00
13
0949217009
ref: 13
JET,PILOT(17.5)
€ 10.50
14
1360444080
ref: 14
SCREW
€ 3.50
15
1355111420
ref: 15
VALVE,THROTTLE
€ 0.00
16
1325844080
ref: 16
GASKET (NAS)
€ 4.00
17
1325111400
ref: 17
GASKET,FLOAT CAHMBER (NAS)
€ 10.50
18
1325044080
ref: 18
FLOAT
€ 31.00
19
0949400300
ref: 19
JET,NEEDLE
€ 13.50
20
0949400301
ref: 20
JET,NEEDLE
€ 4.50
21
1333244080
ref: 21
13382-03110
WASHER,NEEDLE NOZZLE
€ 2.50
22
0949123011
ref: 22
JET,MAIN(115)
€ 10.50
23
1324644080
ref: 23
GASKET (NAS)
€ 3.50
24
1324744080
ref: 24
PLUG,DRAIN
€ 9.50
25
1350211400
ref: 25
COVER,DIAPHRAGM
€ 0.00
26
1350344080
ref: 26
SPRING
€ 11.50
27
1338944030
ref: 27
HOLDER,GUIDE
€ 10.50
28
1350011400
ref: 28
13500-11410
DIAPHRAGM ASSEMBLY
€ 202.50
29
1358144030
ref: 29
E RING
€ 6.50
30
1338744030
ref: 30
RING
€ 5.00
31
1339431210
ref: 31
CLIP,NEEDLE
€ 3.50
32
1338244030
ref: 32
WASHER
€ 3.50
33
1338311420
ref: 33
NEEDLE JET
€ 6.00
34
1337644080
ref: 34
13376-19F00
FILTER
€ 6.50
35
6626399050
ref: 35
13374-35C00
O RING
€ 6.00
36
1337011400
ref: 36
13370-44500
VALVE ASSEMBLY,NEEDLE
€ 40.50
37
0211104067
ref: 37
02112-0406B
SCREW
€ 2.00
38
1325492311
ref: 38
PIN,FLOAT
€ 2.00
39
1337311400
ref: 39
PLATE,NEEDLE VALVE FITING
€ 7.00
40
1357411400
ref: 40
RING,THROTTLE VALVE
€ 0.00
41
0211205088
ref: 41
02112-05087
SCREW
€ 2.00
42
1365151010
ref: 42
SEAL
€ 4.00
43
1355747070
ref: 43
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
44
1361744080
ref: 44
E RING
€ 3.50
45
1357847070
ref: 45
CAP
€ 5.50
46
1326844010
ref: 46
SPRING,THROTTLE SCREW
€ 3.00
47
1357547070
ref: 47
PIN,THROTTLE LEVER
€ 2.50
48
1360747070
ref: 48
NUT
€ 4.00
49
1360547080
ref: 49
SCREW
€ 7.00
50
1338844030
ref: 50
SPRING
€ 6.00
51
1369211400
ref: 51
CLIP,HOSE
€ 0.00
52
1328111400
ref: 52
FILTER NET ASSEMBLY
€ 17.50
53
1342211400
ref: 53
LEVER
€ 0.00
54
1368511400
ref: 54
NIPPLE,CARBURETOR
€ 19.50
55
1368311400
ref: 55
44420-44AR0
HOSE
€ 13.00
56
0211205128
ref: 56
02112-05127
SCREW
€ 2.50
57
0211206168
ref: 57
02112-06167
SCREW
€ 2.50
58
1326711400
ref: 58
SCREW,THROTTLE STOP
€ 12.00
59
1368144110
ref: 59
BUSHING,THROTTLE ADJUSTER
€ 13.00
60
1362744110
ref: 60
BRACKET,THROTTLE ADJUST
€ 12.50
61
0211205088
ref: 61
02112-05087
SCREW
€ 2.00
62
0832121058
ref: 62
08321-0105A
LOCK WASHER
€ 2.00
63
1327193011
ref: 63
SPRING
€ 4.50
64
1341011400
ref: 64
SHAFT,STARTER
€ 36.00
65
1360547070
ref: 65
SCREW
€ 5.50
66
1368311410
ref: 66
09355-45855-600
HOSE
€ 14.00
67
1343247090
ref: 67
WASHER
€ 2.50
68
1368311420
ref: 68
44420-44AR0
HOSE
€ 13.00
