FRAME
GS250T 1980 (T) USA (E03)

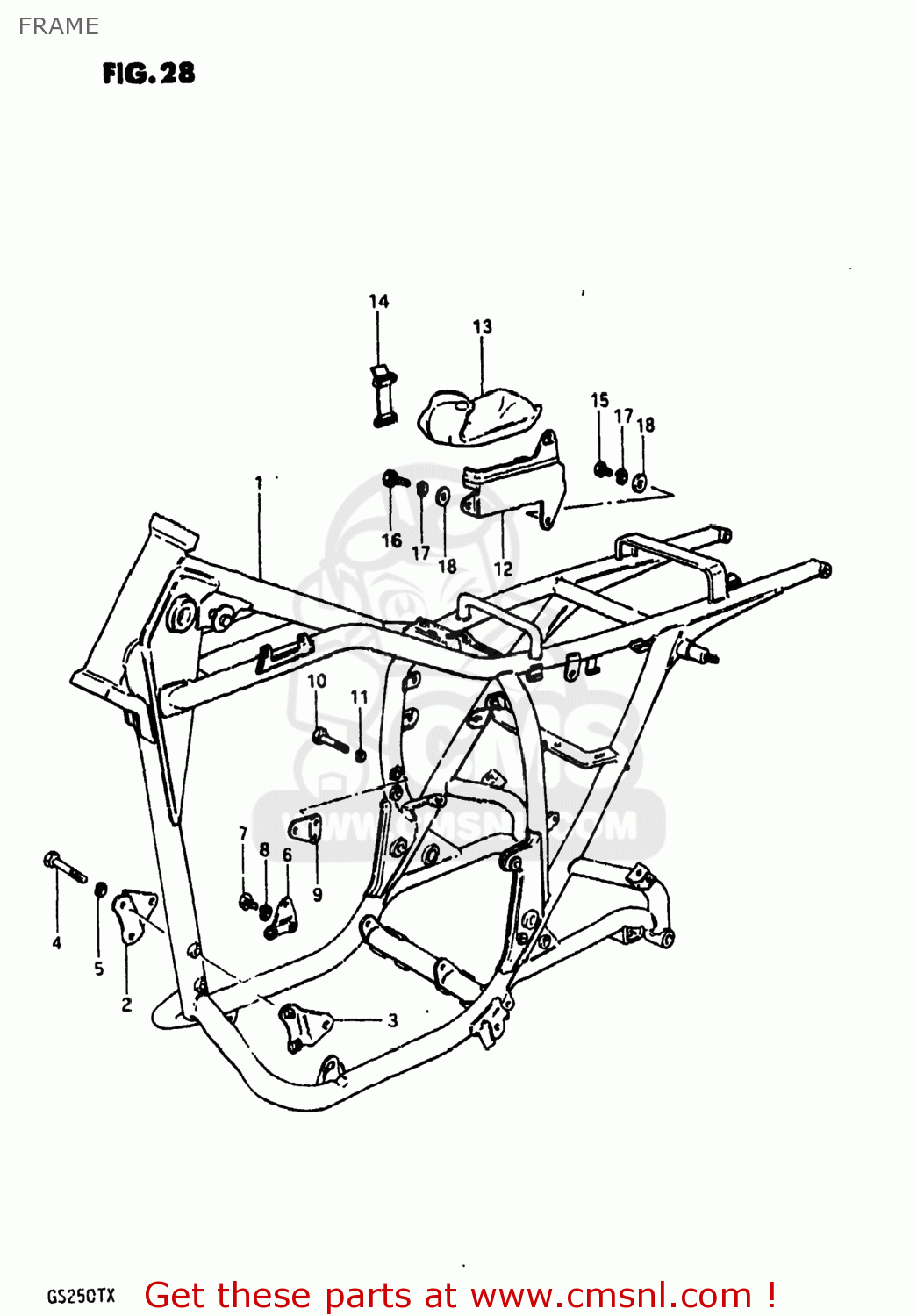

Frame diagram GS250T 1980 (T) USA (E03)
FRAME GS250T 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110011450019
ref: 1
FRAME
€ 0.00
2
4199111400019
ref: 2
PLATE,ENGINE MOUNTING
€ 0.00
3
4192011400019
ref: 3
PLATE,ENGINE MOUNTING
€ 10.50
4
0110708708
ref: 4
01500-0870B
BOLT
€ 2.50
5
0832121088
ref: 5
08321-01087
LOCK WASHER
€ 2.00
6
4192044100019
ref: 6
PLATE,ENGINE MOUNTING
€ 0.00
7
0110708168
ref: 7
01500-0816B
BOLT
€ 2.00
8
0832121088
ref: 8
08321-01087
LOCK WASHER
€ 2.00
9
4191044000019
ref: 9
PLATE,ENGINE MOUNTING
€ 0.00
10
0110708458
ref: 10
01500-08453
BOLT 8X45
€ 2.50
11
0832121088
ref: 11
08321-01087
LOCK WASHER
€ 2.00
12
4155144100
ref: 12
HOLDER,TOOL
€ 28.50
13
0980000214
ref: 13
09800-06801
TOOL ASSY
€ 52.00
14
0946200072
ref: 14
BAND
€ 3.50
15
0211206128
ref: 15
02112-06127
SCREW 6X12
€ 2.00
16
0211206208
ref: 16
02112-06207
SCREW
€ 2.00
17
0832121068
ref: 17
08321-01067
LOCK WASHER
€ 2.50
18
0832221068
ref: 18
08322-01067
WASHER
€ 2.00
