CYLINDER

GS250T 1980 (T) USA (E03)

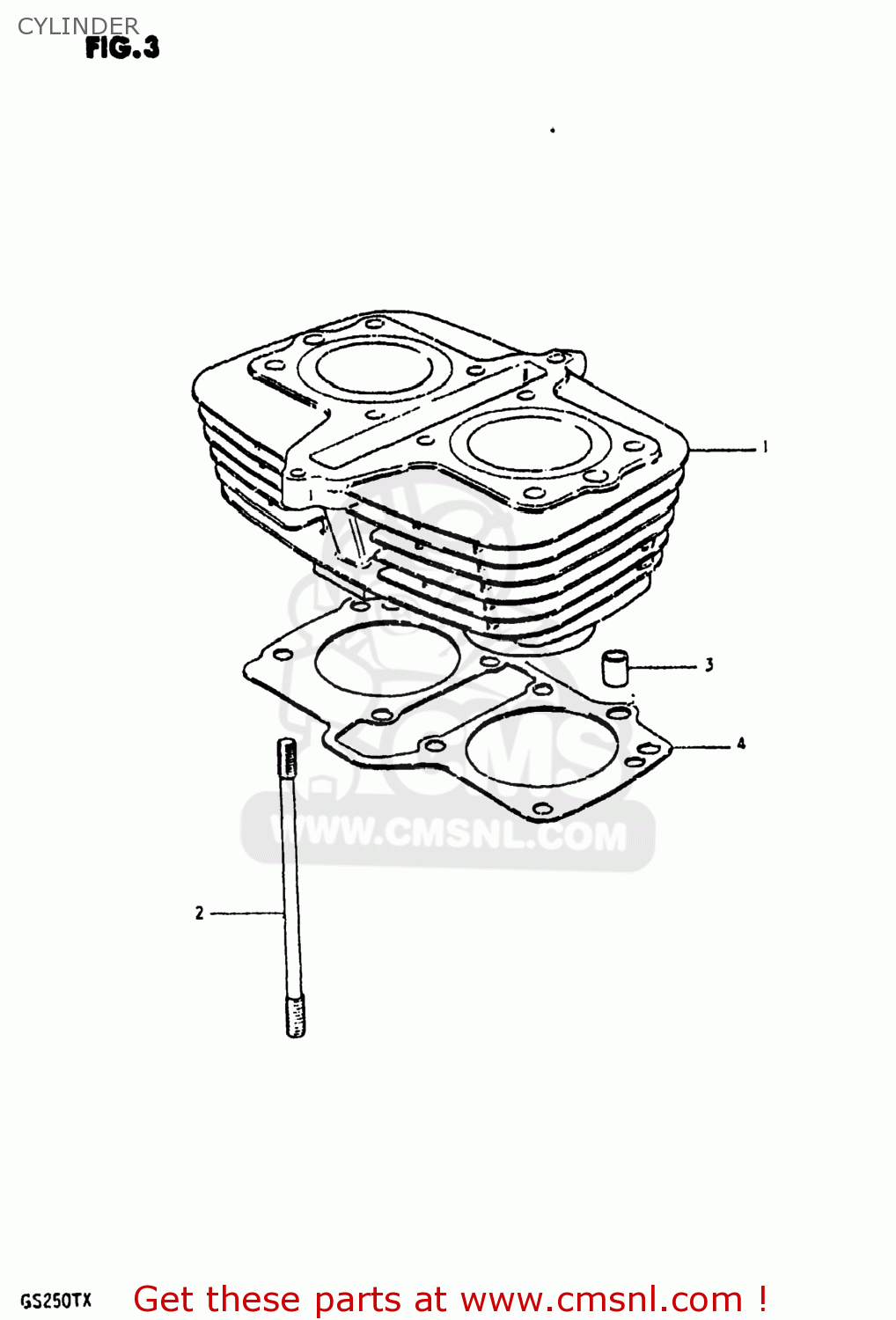

Cylinder diagram GS250T 1980 (T) USA (E03)

CYLINDER GS250T 1980 (T) USA (E03)

CYLINDER GS250T 1980 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121011400
ref: 1
11210-11401

CYLINDER

€ 514.50

2

0910808058
ref: 2
09108-08241

STUD

€ 6.00

3

0421111189
ref: 3

PIN

€ 2.00

4

1124111400
ref: 4
11241-11400-H17

GASKET,CYLINDER (MCA)

€ 9.00
