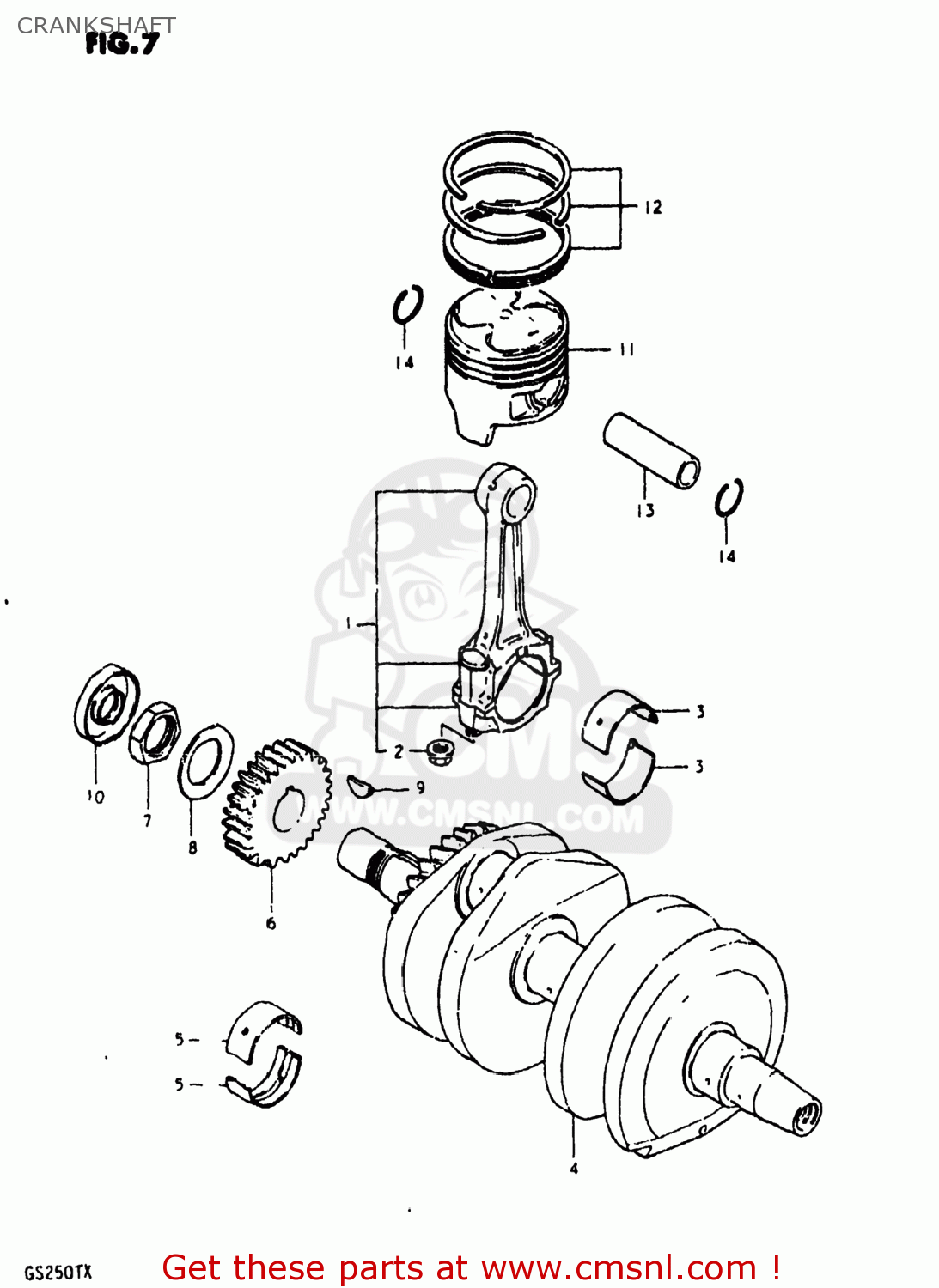

CRANKSHAFT

ref

part #

description

quantity

1

1216011400
ref: 1

ROD ASSEMBLY,CONNECTING

€ 95.50

2

0915908033
ref: 2

NUT

€ 2.50

3-1

1216411400010
ref: 3-1
12164-33300-0A0

BEARING,CRANK PIN GREEN

€ 12.00

3-2

1216411400020
ref: 3-2
12164-33300-0B0

BEARING,CRANK PIN BLACK

€ 12.50

3-3

1216411400030
ref: 3-3
12164-33300-0C0

BEARING,CRANK PIN BROWN

€ 12.50

3-4

1216411400040
ref: 3-4
12164-33300-0D0

BEARING,CRANK PIN YELLOW

€ 11.50

3-5

1216411400025
ref: 3-5
12164-33210-025

BEARING,CRANK PIN (US: 0.25)

€ 11.50

3-6

1216411400050
ref: 3-6
12164-33210-050

BEARING,CRANK PIN (US: 0.5)

€ 11.00

4

1222011401
ref: 4

CRANKSHAFT ASSEMBLY

€ 785.00

5-1

1222911400010
ref: 5-1
12229-43400-0A0

METAL CRANKSHAFT (YELLOW)

€ 9.50

5-2

1222911400020
ref: 5-2
12229-43400-0B0

METAL CRANKSHAFT (BROWN)

€ 12.00

5-3

1222911400030
ref: 5-3
12229-43400-0C0

METAL CRANKSHAFT (BLACK)

€ 10.00

5-4

1222911400040
ref: 5-4
12229-43400-0D0

METAL CRANKSHAFT (GREEN)

€ 10.50

5-5

1222911400025
ref: 5-5

BEARING,CRANKSHAFT(US:0.25)

€ 9.50

5-6

1222911400050
ref: 5-6

METAL CRANKSHAFT

€ 9.50

6

2111111400
ref: 6

GEAR,PRIMARY DRIVE

€ 0.00

7

0914024007
ref: 7

NUT

€ 4.50

8

0916425001
ref: 8

WASHER

€ 4.50

9

0834131059
ref: 9

KEY

€ 3.00

10

0928322013
ref: 10
09283-22015

OIL SEAL

€ 10.50

11-1

1211111401
ref: 11-1
12111-11404

PISTON

€ 49.00

11-2

1211111401050
ref: 11-2
12103-11820-050

PISTON (OS:0.5)

€ 152.50

11-3

1211111401100
ref: 11-3
12103-11820-100

PISTON (OS:1.0)

€ 122.00

12-1

1214011420
ref: 12-1
12140-11421

RING SET,PISTON

€ 58.00

12-2

1214011420050
ref: 12-2
12140-11421-050

RING SET,PISTON (OS:0.5)

€ 42.00

12-3

1214011420100
ref: 12-3
12140-11421-100

RING SET,PISTON (OS:1.0)

€ 58.00

13

1215118001
ref: 13
12151-60D00

PIN,PISTON

€ 15.00

14

0938116002
ref: 14
09381-16001

CIRCLIP

€ 1.50
