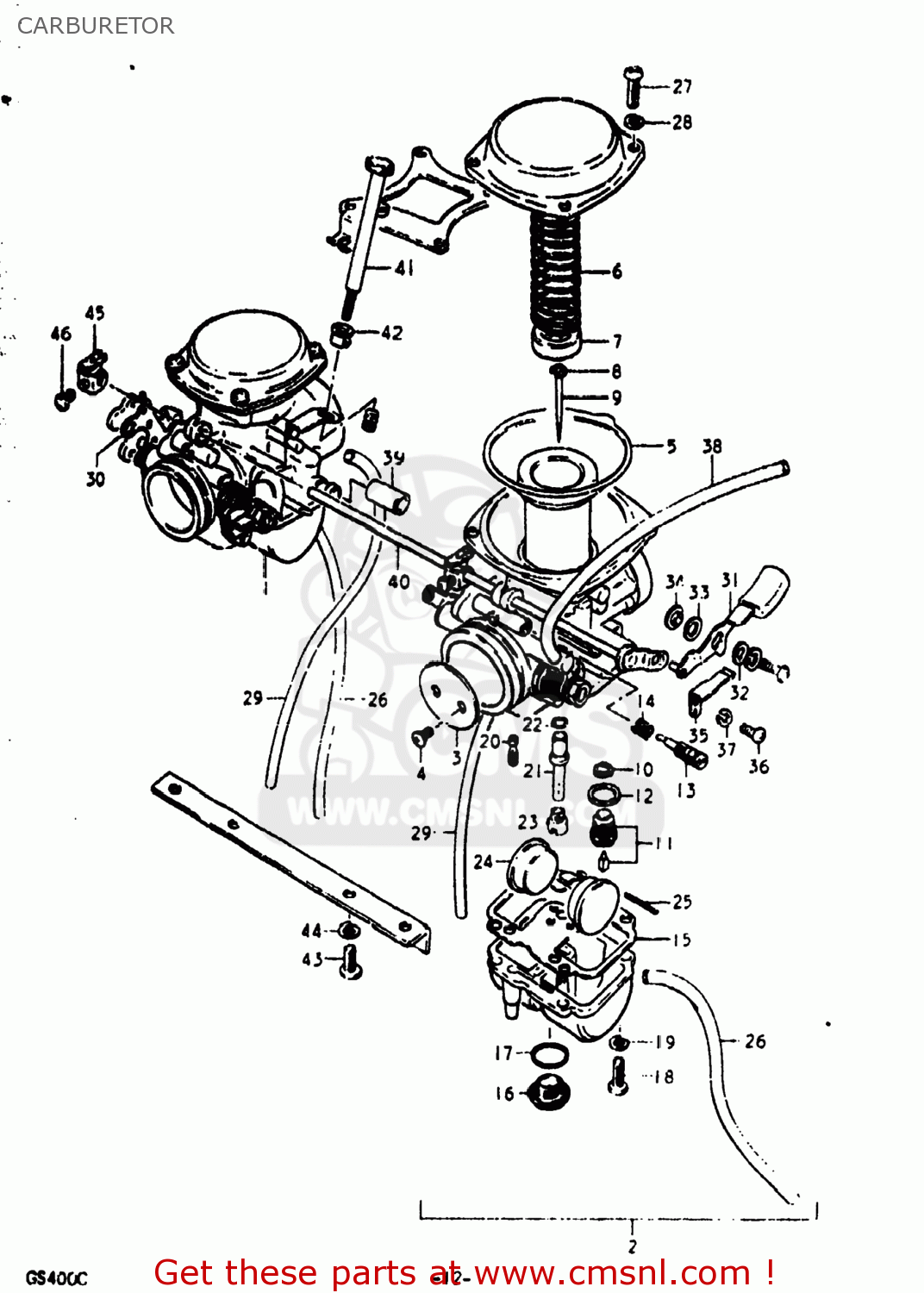

CARBURETOR

ref

part #

description

quantity

0-1

1320044020
ref: 0-1

CARBURETOR ASSEMBLY

€ 0.00

0-2

1320044990
ref: 0-2

CARBURETOR ASSEMBLY

€ 0.00

1

1320144020
ref: 1

CARBURETOR ASSEMBLY

€ 0.00

2-1

1320244020
ref: 2-1

CARBURETOR ASSEMBLY

€ 177.00

2-2

1320244990
ref: 2-2

CARBURETOR ASSEMBLY

€ 0.00

3

1355144010
ref: 3

VALVE,THROTTLE

€ 0.00

4

0212203088
ref: 4
02122-03083

SCREW

€ 2.00

5

1350044010
ref: 5
13500-44110

DIAPHRAGM ASSY

€ 225.00

6

1350344010
ref: 6

SPRING,DIAPHRAGM

€ 8.00

7

1339831210
ref: 7

CONNECTOR

€ 5.50

8

1339444010
ref: 8
13394-31210

CLIP

€ 3.50

9

1338344010
ref: 9

NEEDLE,JET

€ 14.50

10

1337665010
ref: 10
13376-19F00

FILTER

€ 6.50

11

1337044010
ref: 11

VALVE ASSY,NEEDLE

€ 57.00

12

1339216600
ref: 12

GASKET,MAIN JET HOLDER (NAS)

€ 3.00

13

1326944012
ref: 13

SCREW,PILOT AIR

€ 13.50

14

1326844012
ref: 14

SPRING,THROTTLE SCREW

€ 0.00

15

1325144012
ref: 15

GASKET,FLOAT CHAMBER (NAS)

€ 13.50

16

1324732210
ref: 16

SCREW,GUIDE

€ 13.00

17

1324644010
ref: 17
13249-41310

O-RING

€ 5.00

18

0211204128
ref: 18
02112-0412A

SCREW

€ 1.50

19

0832121048
ref: 19
08321-0104A

LOCK WASHER

€ 2.00

20

0949220004
ref: 20

JET,PILOT

€ 9.00

21

0949400181
ref: 21

JET,NEEDLE

€ 20.00

22

1329531210
ref: 22
09280-03003

O-RING

€ 2.50

23

0949122010
ref: 23
09491-22013

SET, MAIN

€ 7.50

24

1325231210
ref: 24

FLOAT

€ 33.50

25

1325401010
ref: 25

PIN,FLOAT

€ 3.00

26

1368344012
ref: 26
09355-45855-600

HOSE

€ 14.00

27

0211205168
ref: 27
02112-05167

SCREW

€ 2.50

28

0832121058
ref: 28
08321-0105A

LOCK WASHER

€ 2.00

29

1368344021
ref: 29
13683-45070

HOSE

€ 10.00

30

1343644010
ref: 30

GASKET

€ 7.00

31

1341344010
ref: 31
13413-44020

LEVER

€ 14.00

32

1361531630
ref: 32

WASHER,STARTER LEVER

€ 1.50

33

1361544010
ref: 33

WASHER,STARTER LEVER

€ 3.00

34

1343231210
ref: 34

RING,STARTER LEVER

€ 3.00

35

1342644010
ref: 35

SPRING

€ 0.00

36

0211104067
ref: 36
02112-0406B

SCREW

€ 2.00

37

0832121068
ref: 37
08321-01067

LOCK WASHER

€ 2.50

38

1368331610
ref: 38
09355-45855-600

HOSE

€ 14.00

39

1368331600
ref: 39
13683-10200

HOSE

€ 8.00

40

1341044010
ref: 40

SHAFT,STARTER

€ 0.00

41

1326744010
ref: 41

ADJUSTER

€ 10.00

42

1327631210
ref: 42

BUSH

€ 4.00

43

0211206128
ref: 43
02112-06127

SCREW 6X12

€ 2.00

44

0832121068
ref: 44
08321-01067

LOCK WASHER

€ 2.50

45

1342244010
ref: 45

LEVER, STARTER

€ 0.00

46

1360531210
ref: 46

SCREW

€ 3.00
