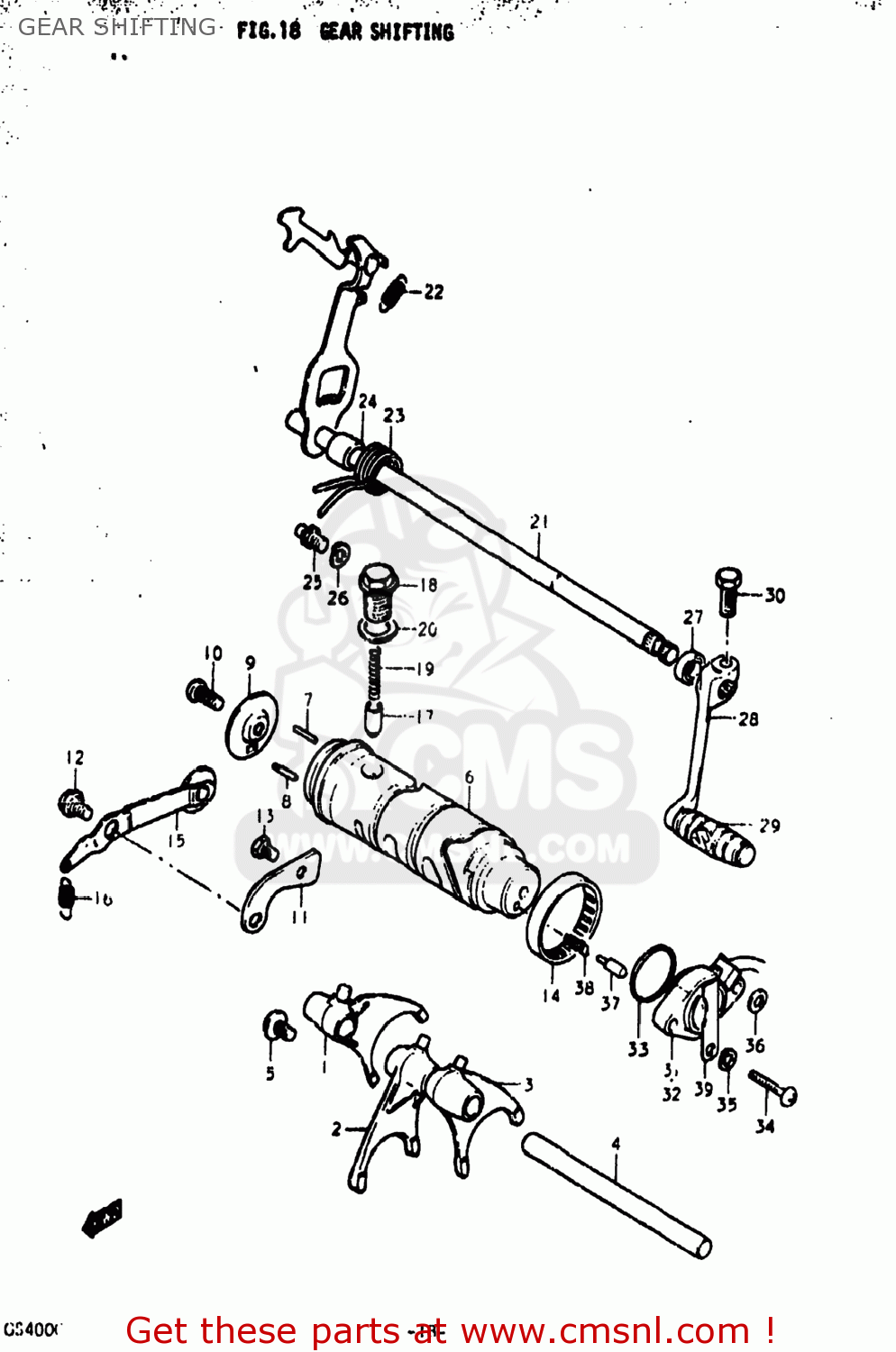

GEAR SHIFTING

ref

part #

description

quantity

1

2521144000
ref: 1
25211-44001

FORK,GEAR SHIFT NO.1

€ 70.00

2

2522144000
ref: 2
25221-44001

FORK,GEAR SHIFT NO.2

€ 74.50

3

2523144000
ref: 3

FORK,GEAR SHIFT NO.2

€ 74.50

4

2541131000
ref: 4
25411-18900

SHAFT,GEAR SHIFT FORK

€ 14.50

5

0214206108
ref: 5
02142-06107

SCREW

€ 2.00

6

2531144000
ref: 6

CAM,GEAR SHIFT

€ 0.00

7

0926104001
ref: 7

PIN(4X18.5)

€ 1.50

8

0920904013
ref: 8

PIN

€ 5.00

9

2532244000
ref: 9

RETAINER,GEAR SHIFT CAM DR PIN

€ 2.50

10

0211206168
ref: 10
02112-06167

SCREW

€ 2.50

11

2534144000
ref: 11
25341-33300

GUIDE,GEAR SHIFTING CABLE

€ 6.00

12

0911106019
ref: 12
09111-06054

BOLT

€ 1.50

13

0110706128
ref: 13
01500-06127

BOLT

€ 2.00

14

0926340001
ref: 14

BEARING(40X47X12)

€ 21.00

15

2535044000
ref: 15

STOPPER,GEAR SHIFT CAM NO.1

€ 10.50

16

0944309007
ref: 16

SPRING

€ 14.50

17

2535118000
ref: 17
25351-39300

STOPPER,GEAR SHIFTING

€ 5.00

18

2535211000
ref: 18
25352-11010

BOLT,GEAR SHAFT CAM STOPPER

€ 4.50

19

0944005018
ref: 19

SPRING

€ 14.00

20

0916814004
ref: 20

GASKET(14X19.2X2) (NAS)

€ 2.50

21

2551044000
ref: 21

SHAFT,GEAR SHIFT

€ 56.50

22

0944307013
ref: 22

SPRING

€ 2.50

23

0944426017
ref: 23

SPRING

€ 5.00

24

0918017068
ref: 24

SPACER (17X33X12.5)

€ 0.00

25

2567101000
ref: 25
25671-01011

STOPPER,GEAR SHIFT CAM

€ 3.00

26

0832121088
ref: 26
08321-01087

LOCK WASHER

€ 2.00

27

0928512002
ref: 27
09285-12006

OIL SEAL

€ 7.00

28

2560044000
ref: 28

LEVER ASSY,GEAR SHIFT

€ 136.00

29

2565216500
ref: 29

RUBBER,GEAR SHIFT PEDAL

€ 4.00

30

0110708208
ref: 30
01500-08207

BOLT

€ 3.00

31

3772045010
ref: 31
37720-45100

BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL

€ 92.50

32

3772044600
ref: 32

TERMINAL BASE,NEUTRAL SWITCH

€ 51.00

33

0928026003
ref: 33
09280-26005

O-RING (D:2.4 ID:26.2)

€ 2.50

34

0211105207
ref: 34
02112-05207

SCREW

€ 3.00

35

0832121058
ref: 35
08321-0105A

LOCK WASHER

€ 2.00

36

0832221058
ref: 36
08322-01057

WASHER

€ 2.50

37

0920905011
ref: 37

PIN(5X15.5)

€ 2.00

38

0944004010
ref: 38

SPRING

€ 1.50

39

3149744000
ref: 39

CLAMP,GENERATOR LEAD WIRE

€ 0.00
