CYLINDER

GS400X 1978 (C) USA (E03)

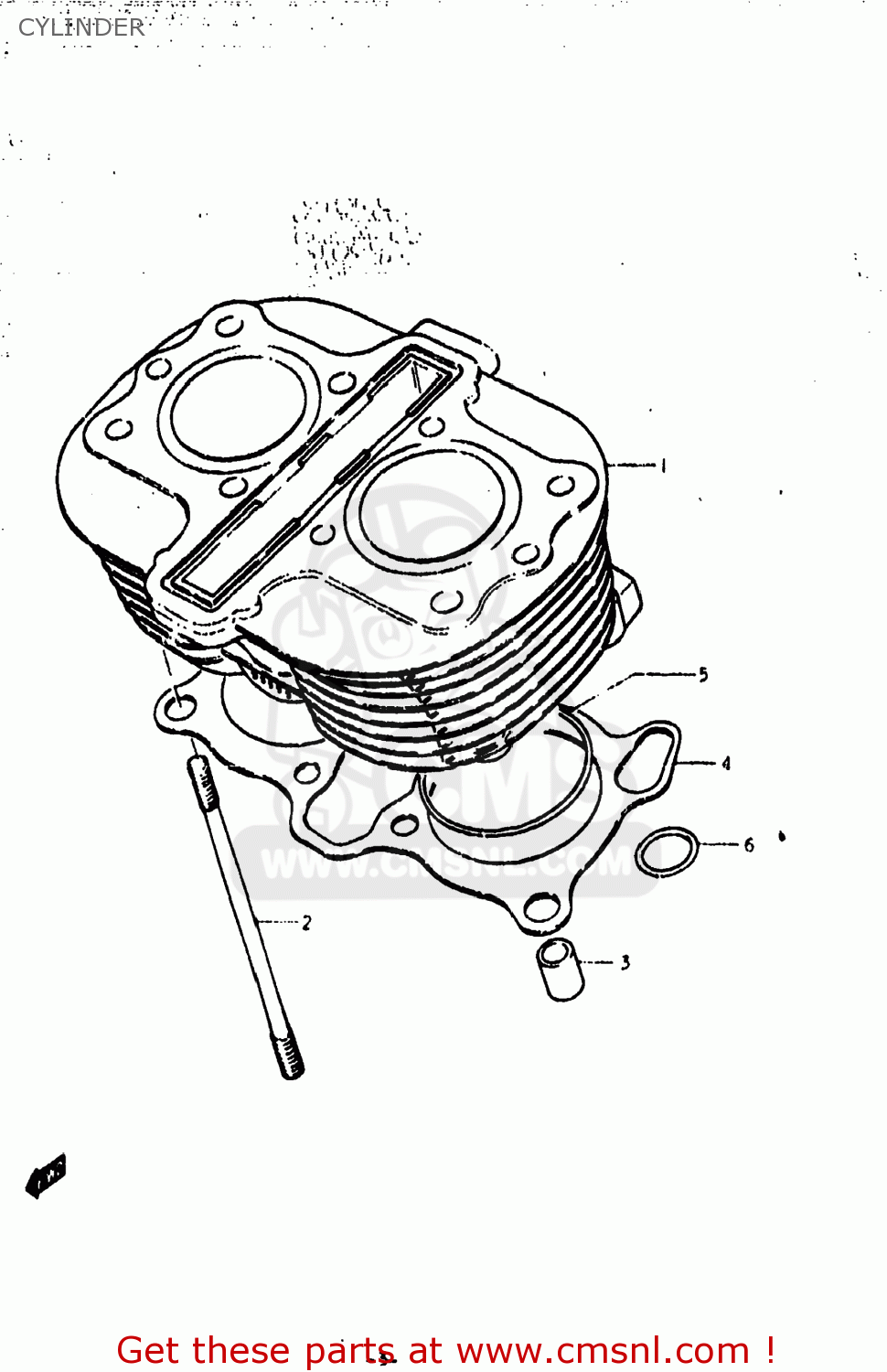

Cylinder diagram GS400X 1978 (C) USA (E03)

CYLINDER GS400X 1978 (C) USA (E03)

CYLINDER GS400X 1978 (C) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121044001
ref: 1
11210-44002

CYLINDER

€ 624.50

2

0910810020
ref: 2
09108-10112

STUD

€ 9.00

3

0920613001
ref: 3
04211-13189

PIN

€ 2.50

4

1124144000
ref: 4
11241-44001

GASKET,CYLINDER (MCA)

€ 16.00

5

0928070001
ref: 5

O RING(D:2,ID:70)

€ 7.50

6

0928021004
ref: 6

O RING(D:3.05)

€ 4.00
