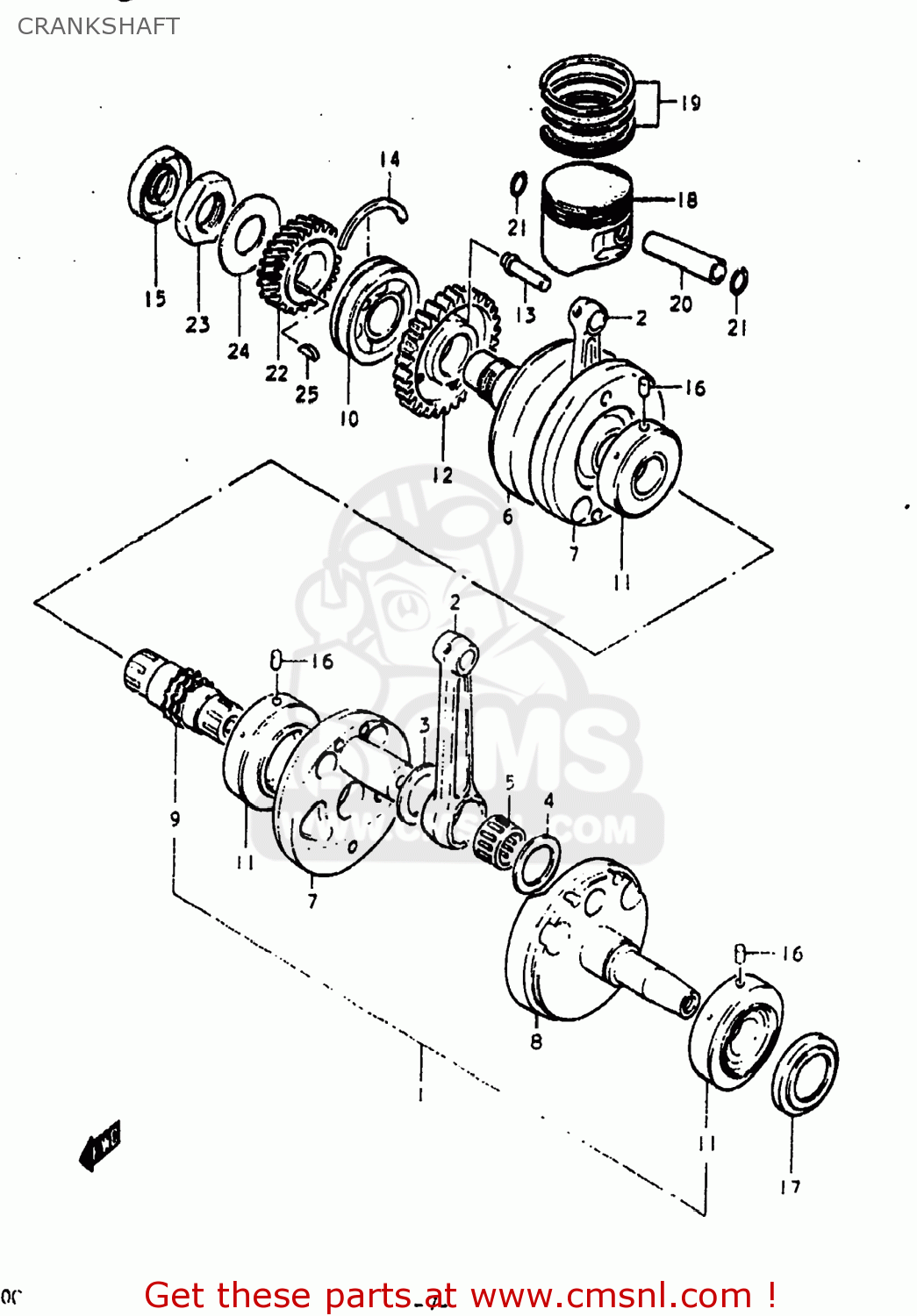

CRANKSHAFT

ref

part #

description

quantity

1

1220044003
ref: 1

CRANKSHAFT ASSEMBLY

€ 0.00

2

1216144001
ref: 2

ROD,CONNECTING

€ 80.50

3

0916028009
ref: 3

WASHER (28X48X2)

€ 5.50

4

0916028010
ref: 4

WASHER(28X48X1)

€ 6.00

5

0926328010
ref: 5

BEARING(28X38X19.8)

€ 22.00

6

1222044001
ref: 6

CRANKSHAFT

€ 203.00

7

1223044002
ref: 7

WEB,CRANK

€ 195.00

8

1226144001
ref: 8

CRANKSHAFT,LEFT

€ 0.00

9

1228144000
ref: 9

SHAFT,TIMING CHAIN DRIVE

€ 79.00

10

0926230033
ref: 10

BEARING(30X72X19)

€ 47.00

11

0926432002
ref: 11
09264-32009

BEARING

€ 138.00

12

1266144001
ref: 12

GEAR,CRANK BALANCER DRIVE

€ 85.50

13

0920910014
ref: 13

PIN

€ 0.00

14

0939072004
ref: 14

C RING

€ 3.00

15

0928325062
ref: 15

SEAL,OIL(25X47X8)

€ 11.50

16

0422107129
ref: 16

PIN

€ 1.50

17

0928948001
ref: 17
09289-48002

OIL SEAL

€ 12.00

18-1

1211145001
ref: 18-1
12111-45002

PISTON

€ 49.00

18-2

1211145701
ref: 18-2
12103-45820-050

PISTON

€ 101.00

18-3

1211145711
ref: 18-3
12103-45820-100

PISTON

€ 133.00

19-1

1210045811
ref: 19-1
12140-45013

PISTON RING SET

€ 59.00

19-2

1210045821
ref: 19-2
12140-45013-050

PISTON RING SET

€ 48.00

19-3

1210045831
ref: 19-3
12140-45013-100

PISTON RING SET

€ 68.00

20

1215129001
ref: 20

PIN,PISTON

€ 9.00

21

0938116002
ref: 21
09381-16001

CIRCLIP

€ 1.50

22

2111144000
ref: 22

GEAR,PRIMARY DRIVE

€ 0.00

23

0914028001
ref: 23
09140-28003

NUT

€ 8.00

24

0916428001
ref: 24

WASHER

€ 0.00

25

0834131059
ref: 25

KEY

€ 3.00
