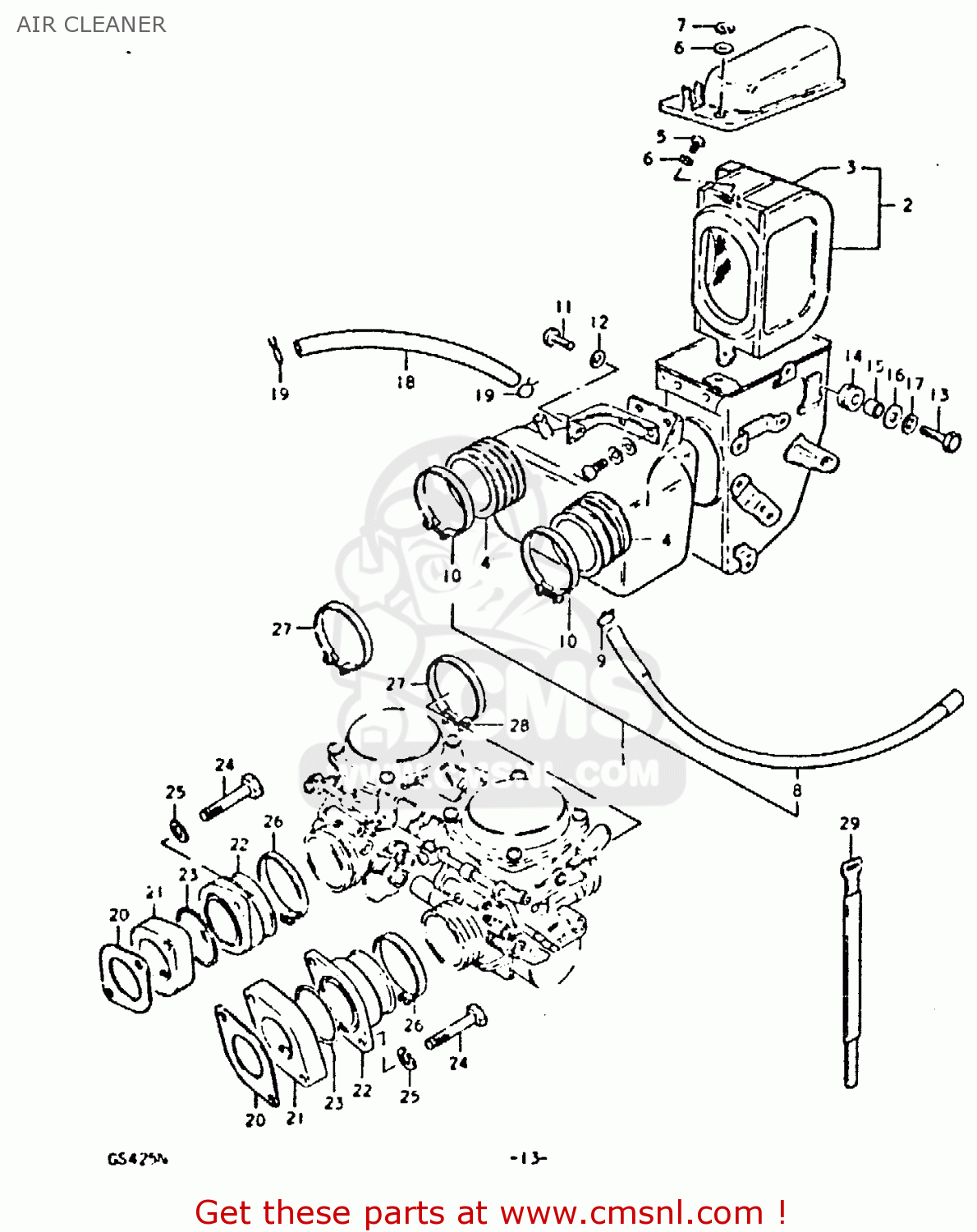

AIR CLEANER

ref

part #

description

quantity

1

1370044011
ref: 1

CLEANER ASSEMBLY,AIR

€ 215.50

2

1378044010
ref: 2

FILTER ASSY

€ 40.00

3

1378144010
ref: 3

FILTER

€ 20.00

4

1372244010
ref: 4

HOSE,AIR CLEANER INLET

€ 28.50

5

0211205108
ref: 5

SCREW

€ 2.00

6

0832221058
ref: 6

WASHER

€ 2.50

7

0832121058
ref: 7

LOCK WASHER

€ 2.00

8

1379144010
ref: 8

HOLDER,FILTER

€ 6.00

9

1379544010
ref: 9

HOSE,AIR CLEANER

€ 2.00

10

0940260306
ref: 10

CLAMP

€ 4.50

11

0211206108
ref: 11

SCREW

€ 1.50

12

0832211068
ref: 12

WASHER 6MM

€ 2.00

13

0110706208
ref: 13

BOLT

€ 2.00

14

0932008001
ref: 14

CUSHION

€ 3.50

15

0918006011
ref: 15

SPACER (6.1X9X9)

€ 2.00

16

0916006007
ref: 16

WASHER

€ 2.00

17

0832121068
ref: 17

LOCK WASHER

€ 2.50

18

0934311005
ref: 18

HOSE

€ 30.00

19

0940114301
ref: 19

CLIP

€ 2.00

20

1312544001
ref: 20

GASKET,CARBURETOR (NAS)

€ 4.50

21

1312944001
ref: 21

INSULATOR,CARBURETOR

€ 10.50

22

1311044001
ref: 22

PIPE,INTAKE

€ 40.00

23

0928040003
ref: 23

O-RING (D:2.4 ID:39.7)

€ 3.50

24

0110706358
ref: 24

BOLT

€ 2.50

25

0832121068
ref: 25

LOCK WASHER

€ 2.50

26

0940254303
ref: 26

CLAMP

€ 4.00

27

0940258306
ref: 27

CLAMP

€ 5.00

28

0311104258
ref: 28

SCREW

€ 1.50

29

0940718301
ref: 29

CLAMP

€ 6.00
