HANDLEBAR - FRONT FENDER

GS425E 1979 (N) GENERAL EXPORT (E01)

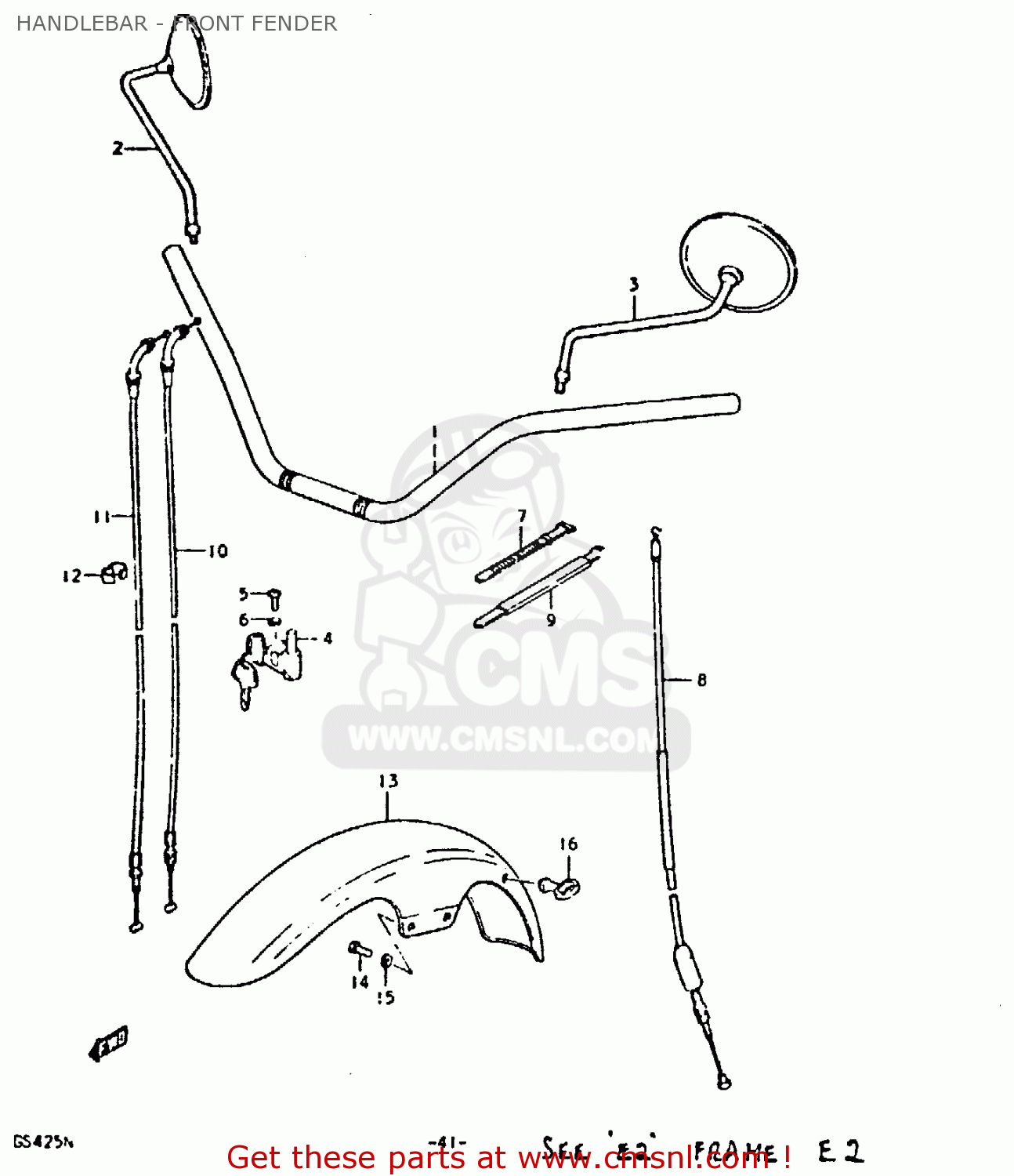

Handlebar - front fender diagram GS425E 1979 (N) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

5611144030
ref: 1

HANDLEBAR

€ 60.50

5650045012
ref: 2

MIRROR ASSEMBLY,RIGHT

€ 72.50

5660045012
ref: 3

MIRROR ASSEMBLY,LEFT

€ 73.00

5190033810
ref: 4

LOCK ASSEMBLY,STEERING

€ 32.50

0211205258
ref: 5

SCREW

€ 2.00

0832121058
ref: 6

LOCK WASHER

€ 2.00

0940712402
ref: 7

CLAMP(L:120)

€ 3.00

5820044000
ref: 8

CABLE ASSEMBLY,CLUTCH

€ 21.00

0940718301
ref: 9

CLAMP

€ 6.00

5830044010
ref: 10

CABLE ASSEMBLY,THROTTLE

€ 30.50

5830044020
ref: 11

CABLE ASSEMBLY,THROTTLE

€ 40.50

0940800002
ref: 12

CLIP

€ 2.00

5311044010
ref: 13

FENDER,FR

€ 335.00

0110708168
ref: 14

BOLT

€ 2.00

0832121088
ref: 15

LOCK WASHER

€ 2.00

5862121203A
ref: 16

GUIDE,CABLE

€ 7.50

HANDLEBAR - FRONT FENDER

all assemblies
